PCE Instruments Sound level meter Calibrated to (ISO standards) PCE-SLT-TRM-ICA 30 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments sound transmitter PCE-SLT-TRM-ICA
- Measuring range: 30 ... 130 dB in three ranges
- Resolution 0.1 dB
- Relay output and control output
- Hand grip and wall bracket
- Analogue output signal
- Cable length selectable 1.5 m, 8 m, 15 m
- Standard length 1.5 m.
- Incl. ISO calibration certificate
Technical specifications
- Sound level
- Measuring range 30 ... 80 dB
- Resolution 0.1 dB
- Accuracy +/-1.5 dB
- Sound level
- Measuring range 50 ... >100 dB
- Resolution 0.1 dB
- Accuracy +/-1.5 dB
- Sound level
- Measuring range 80 ... 130 dB
- Resolution 0.1 dB
- Accuracy +/-1.5 dB
- General Technical Data
- Outputs 4 ... 20 mA
- Cable length: 1.5 m
- Frequency weighting A
- Microphone type Electret capacitor
- Standard(s) IEC 61672-1 (Class II)
- ABS casing (acrylonitrile-butadiene-styrene copolymers)

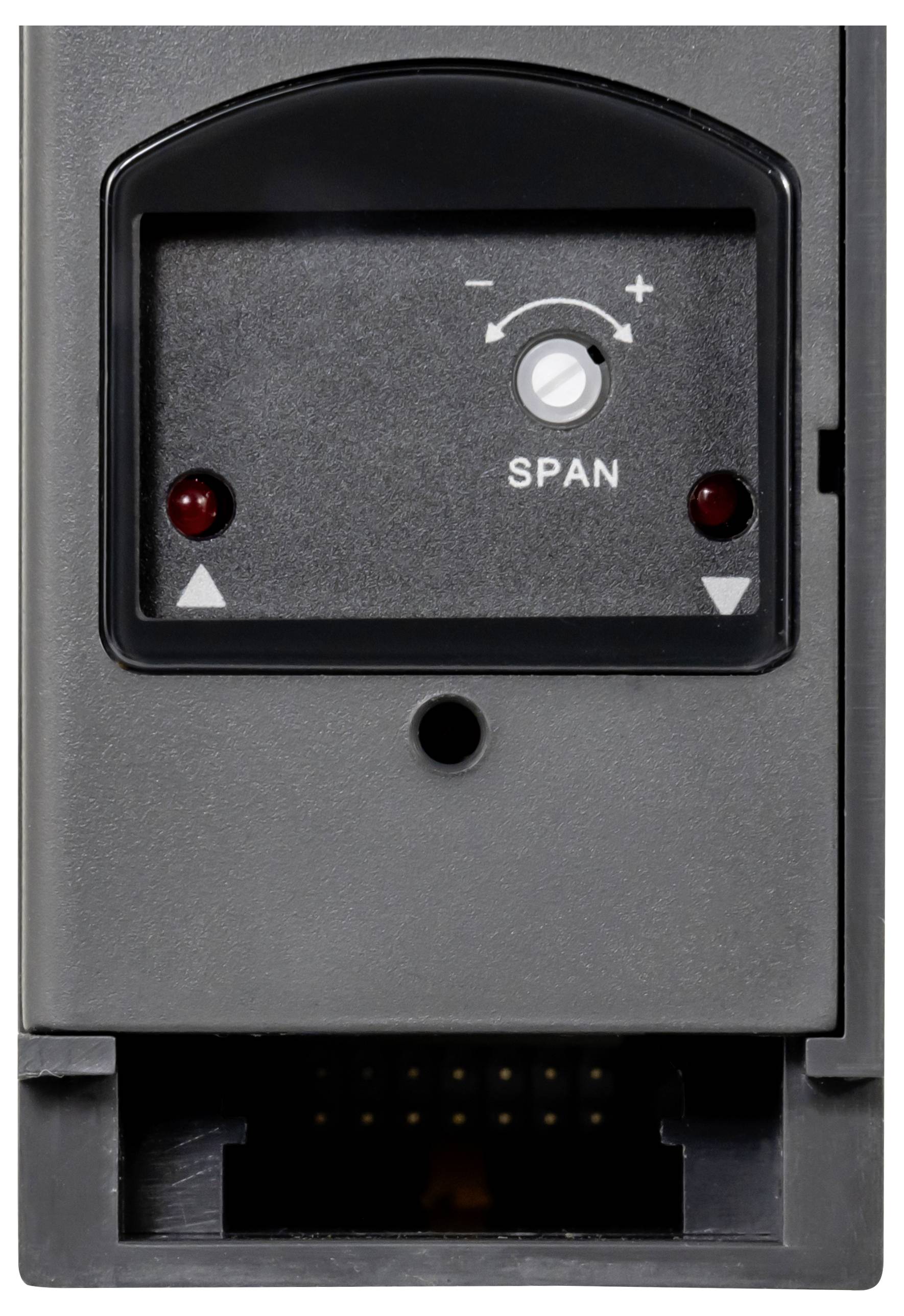

- Calibration can be set via grub screw
- Dimensions of microphone: 1/2 inch
- Protection class (device) IP54, IP60
- Transmitter power supply: 90 ... 260 ACV (max. 1.5 A),Digital display: 90 ... 260 ACV / 50 ... 60 Hz
- Operating conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Product type
Sound level meter
- Reading type
SPL
- SPL resolution
0.1 dB
- dB (A) SPL reading range (max.)
30 dB
ISO standards
- dB (A) accuracy
1.5 dB
- Calibration service
Incl. ISO calibration certificate
- dB SPL (A) reading range
30 dB
- dB (A) SPL reading range (min.)
30 dB
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812730 PCE Instruments Sound level meter Calibrated to (ISO standards) PCE-SLT-TRM-ICA 30 dB
User & Safety Instructions
User & Safety Instructions 3812730 PCE Instruments Sound level meter Calibrated to (ISO standards) PCE-SLT-TRM-ICA 30 dB
Description

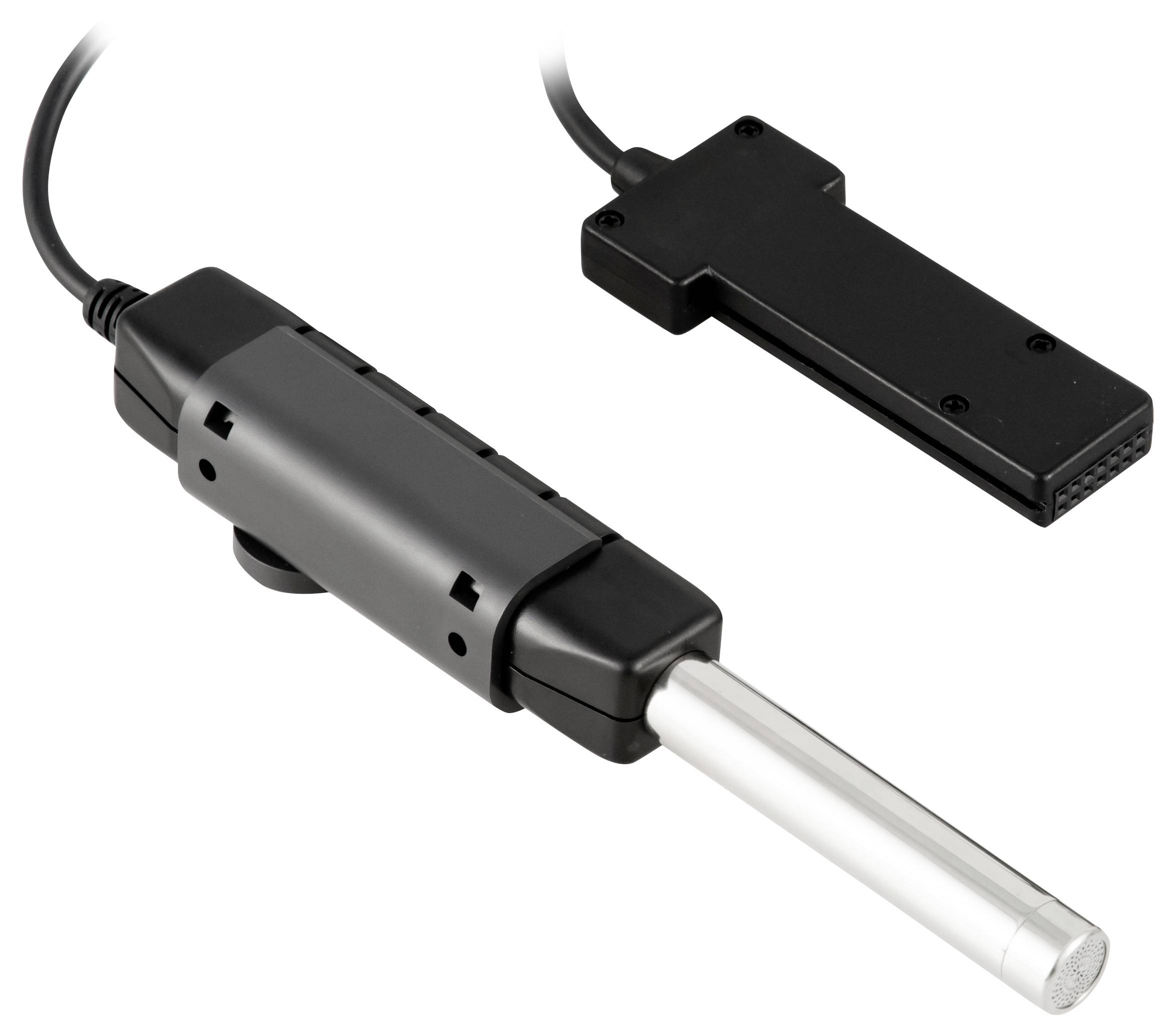

The system consists of a measuring microphone with hand grip and a wall bracket at 1.5 m cable, a sound transmitter. The fundamental application area of this sound transmitter is the continuous sound monitoring and monitoring of factories, production rooms and at large events (discotheques, folk festivals, car railways...).
The analog output signal can also be used for controlling window flaps ... or the signals of the transmitter can be stored, evaluated and documented on a logger. The sound transmitter is very easy to connect and can be operated via 240 V power supply.
This text is machine translated.
The analog output signal can also be used for controlling window flaps ... or the signals of the transmitter can be stored, evaluated and documented on a logger. The sound transmitter is very easy to connect and can be operated via 240 V power supply.
This text is machine translated.
Scope of delivery

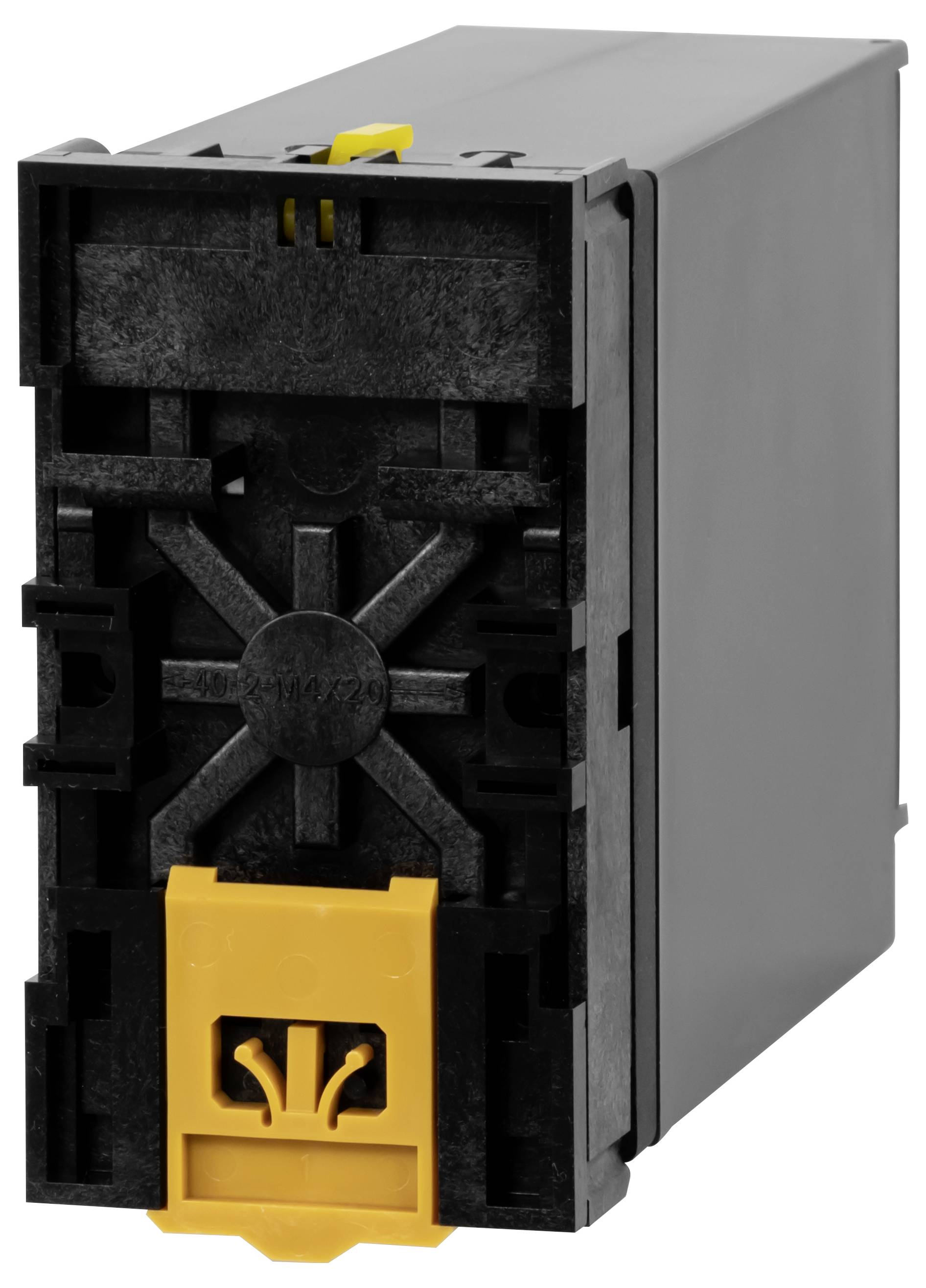

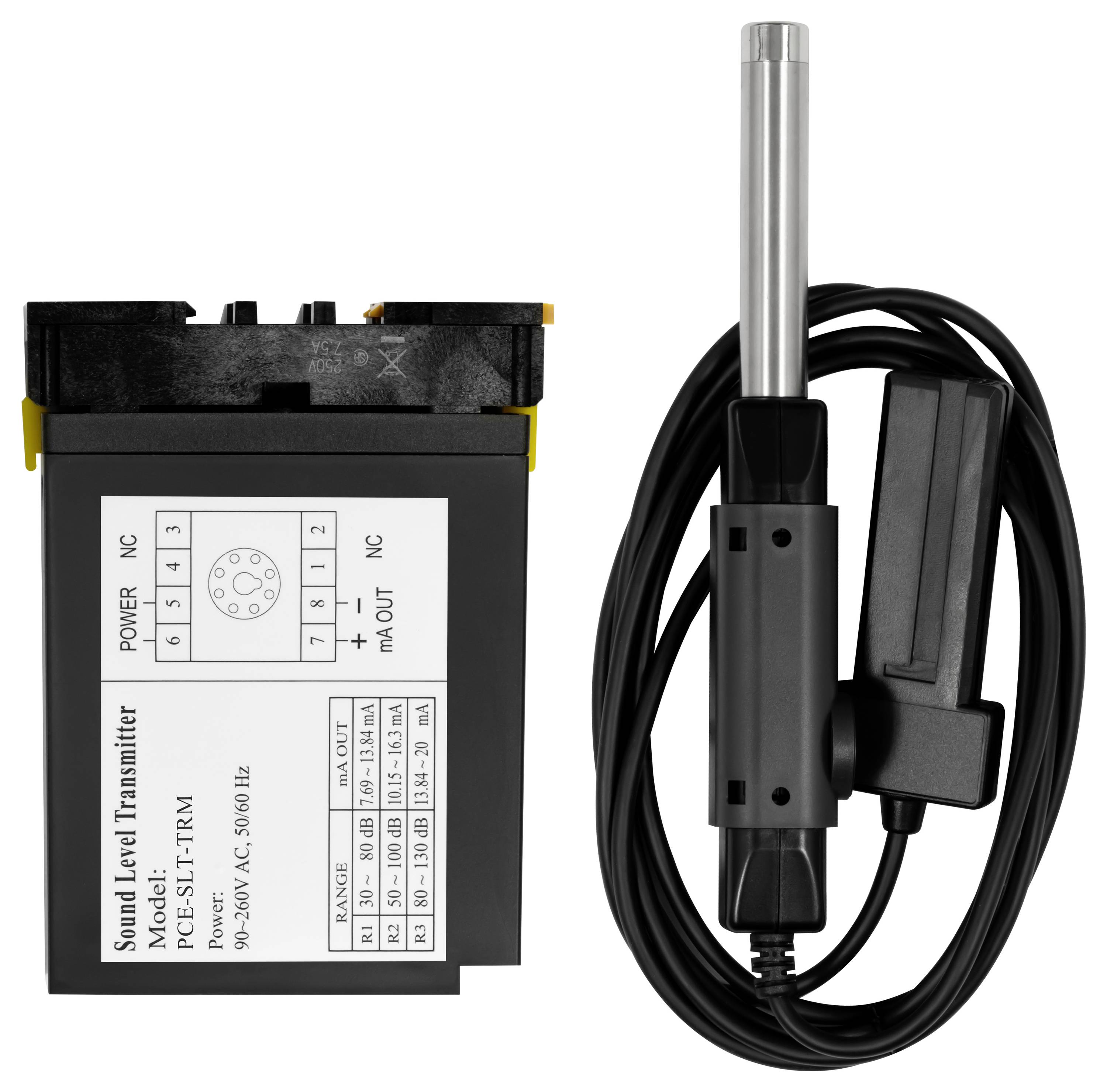

- 1 x sound transmitter PCE- SLT-TRM
- 1 x sound sensor at 1.5 m cable
- 1 x sound transmitter
- 1 x sensor holder for fixing on
- 1x user manual

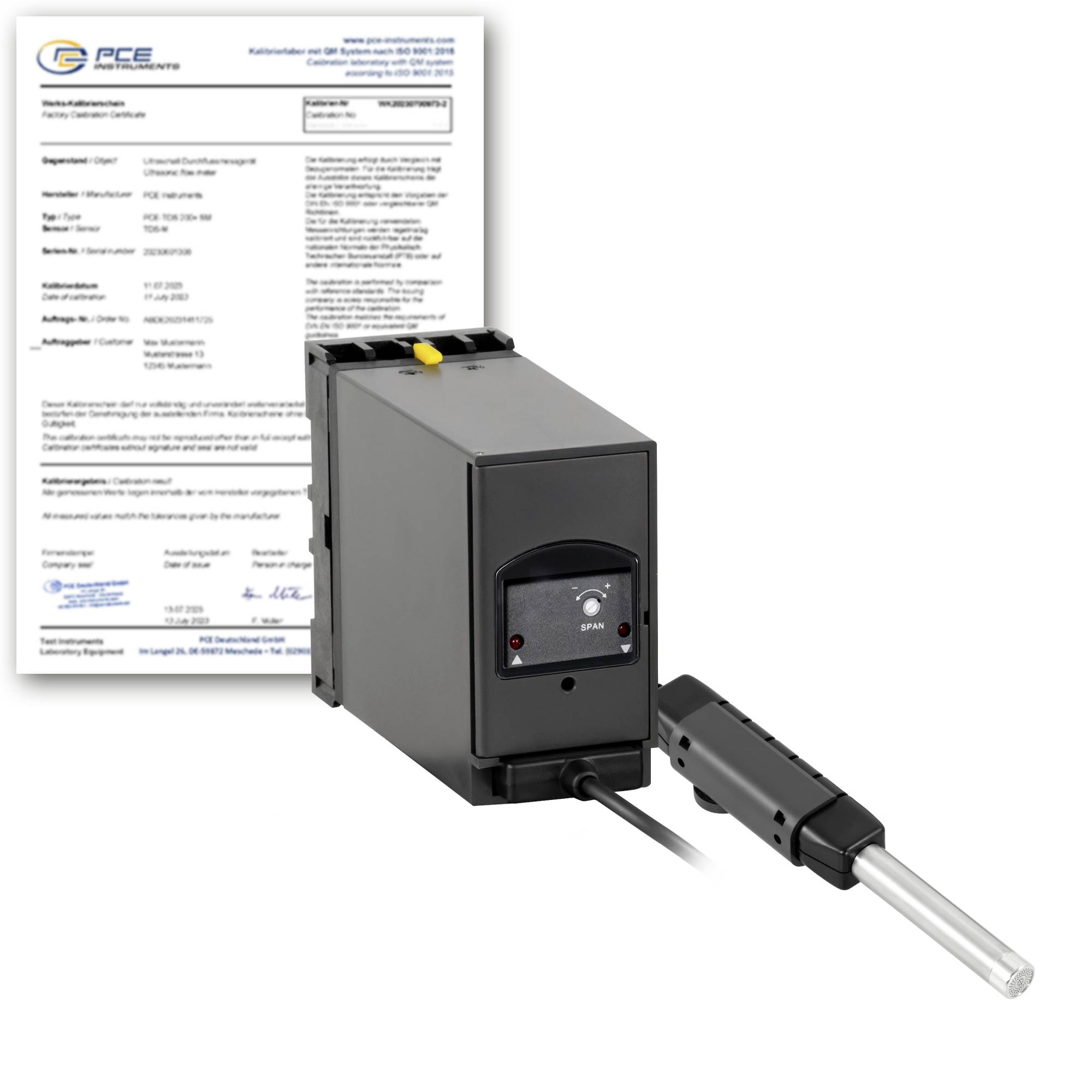

- 1 x ISO calibration certificate
