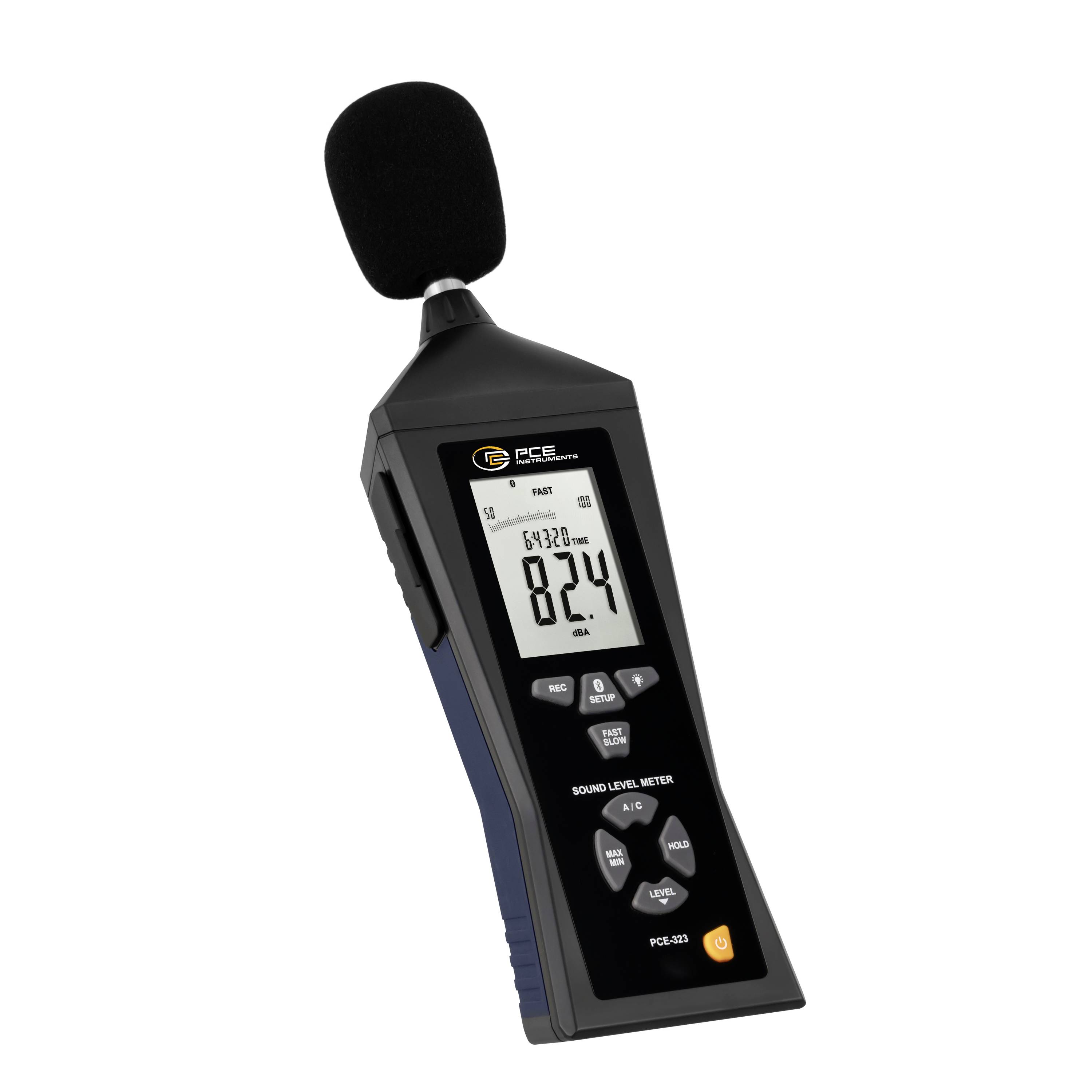

Handheld sound level meter with foam microphone, digital display reading 82.4 dB, and control buttons on a white background.

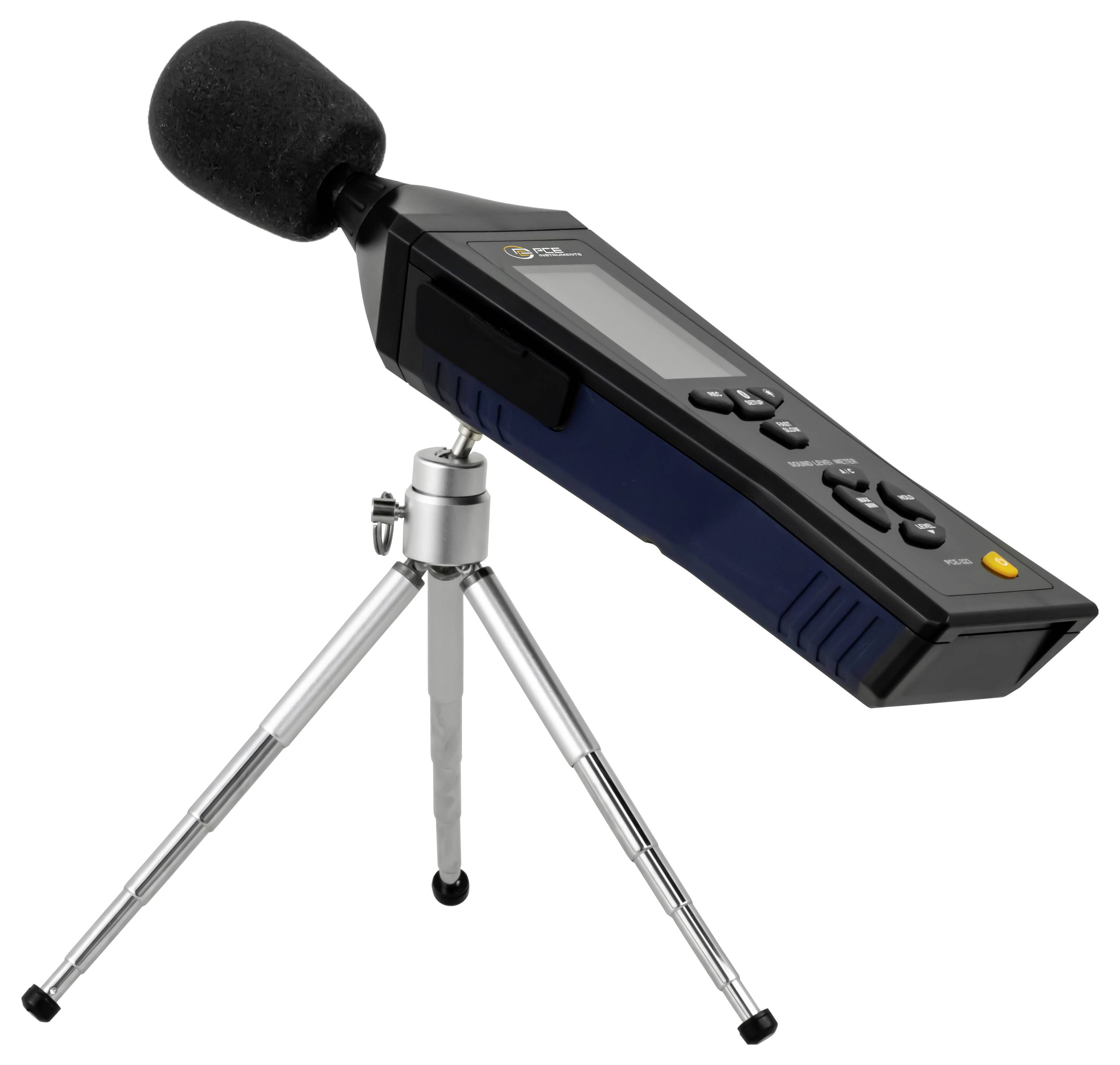

Handheld sound level meter with foam microphone mounted on a tripod, isolated on a white background.

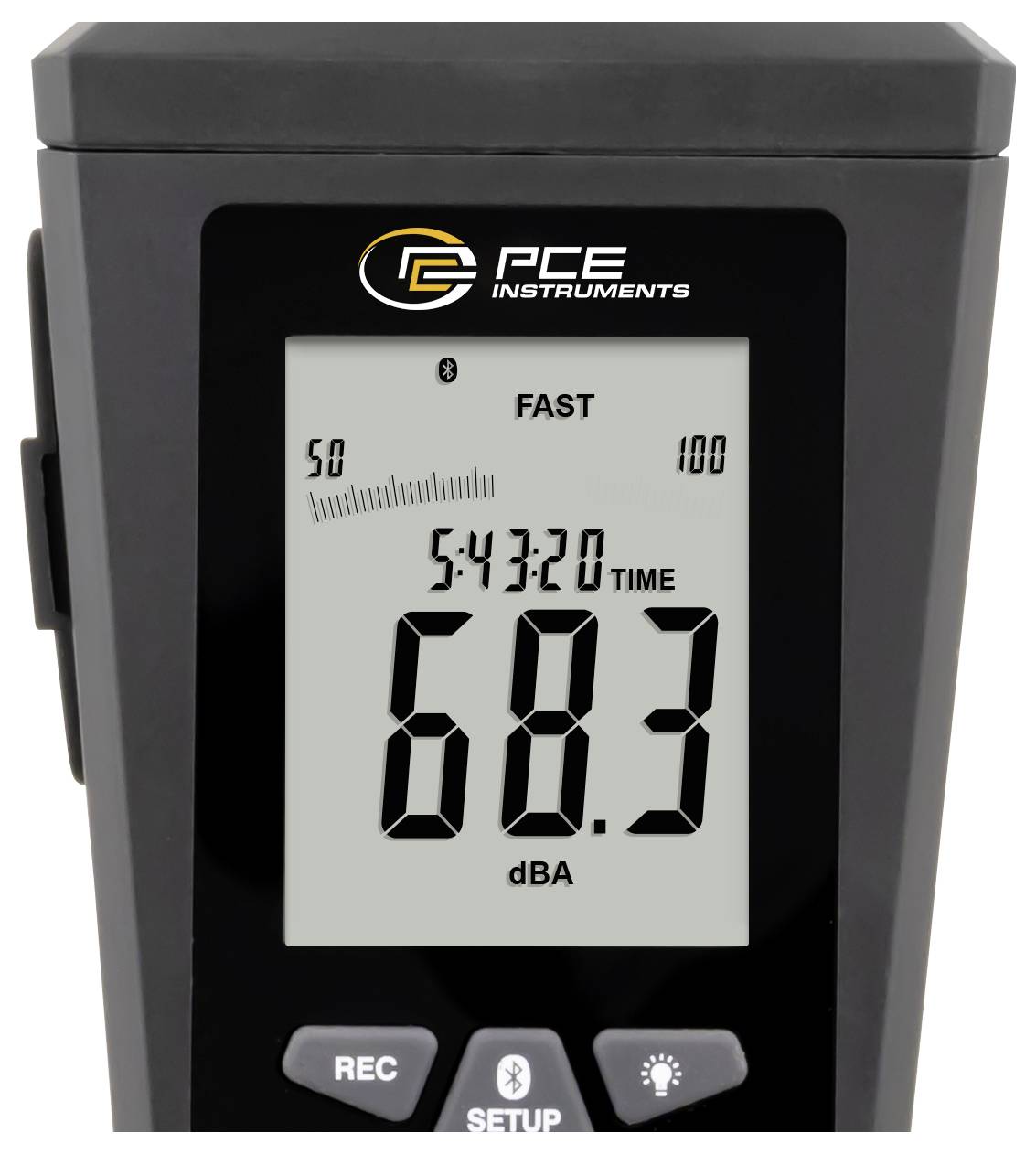

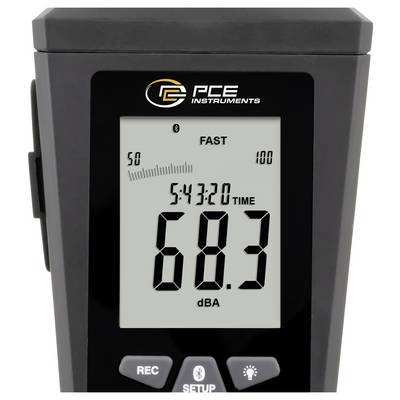

PCE Instruments sound level meter displaying 68.3 dBA in FAST mode with record and setup buttons.

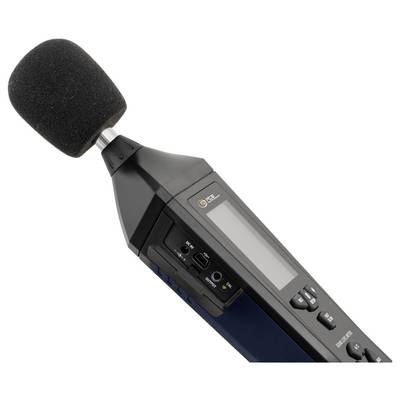

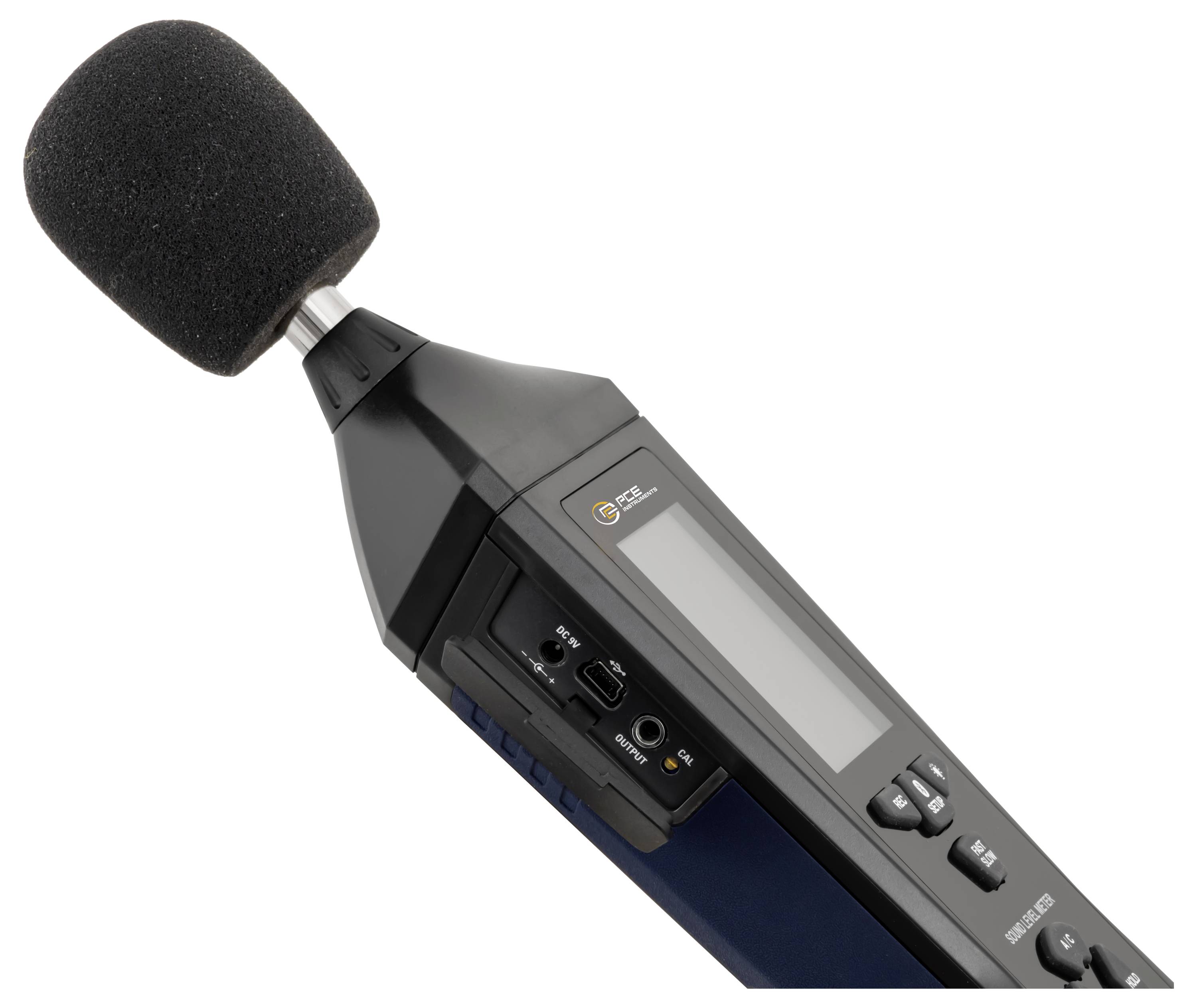

Handheld sound level meter with foam microphone windscreen and digital display, shown on a white background.

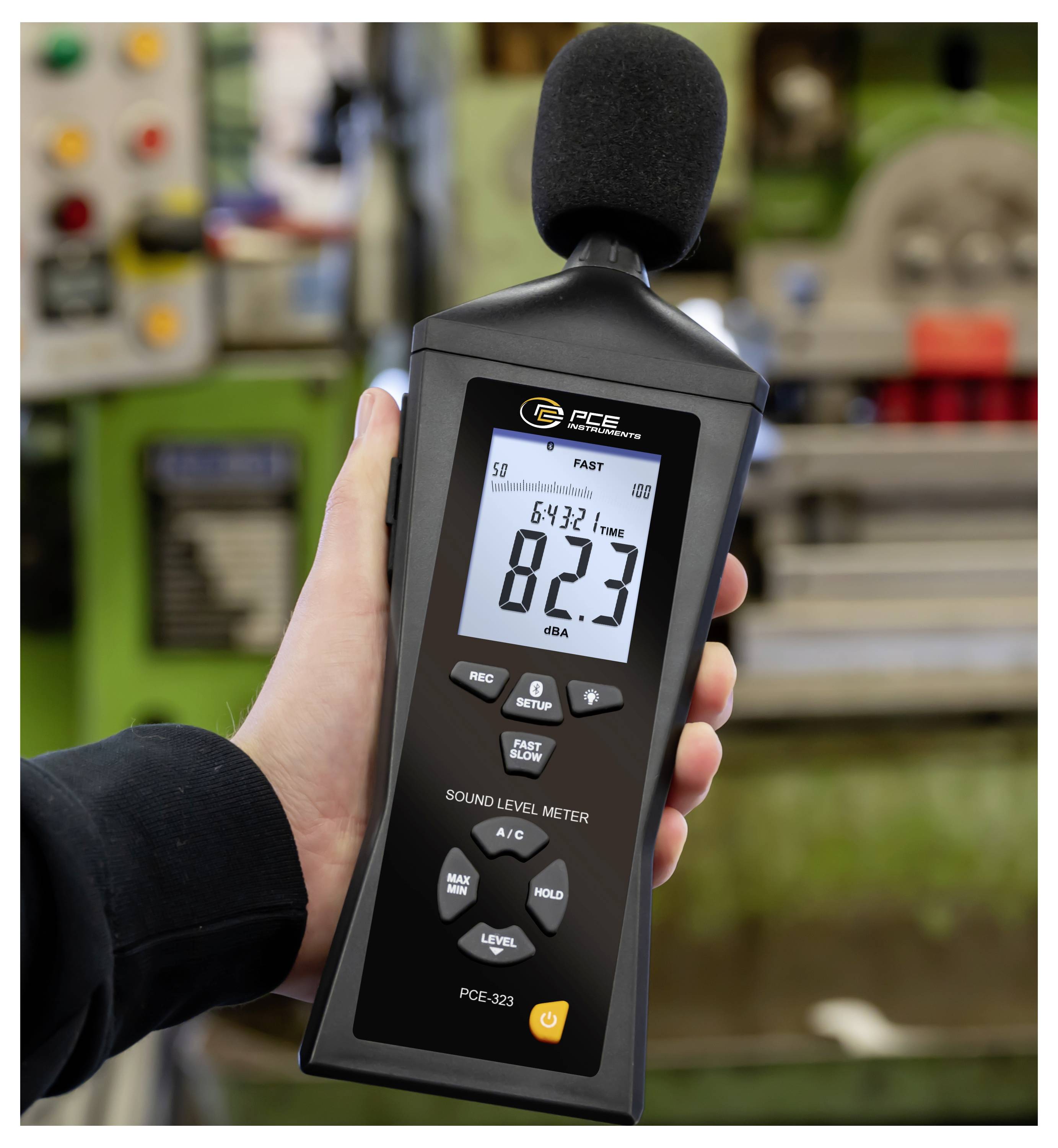

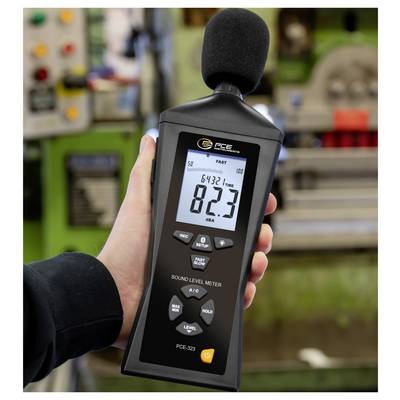

Handheld sound level meter with foam microphone shows 82.3 dBA in a noisy industrial setting.

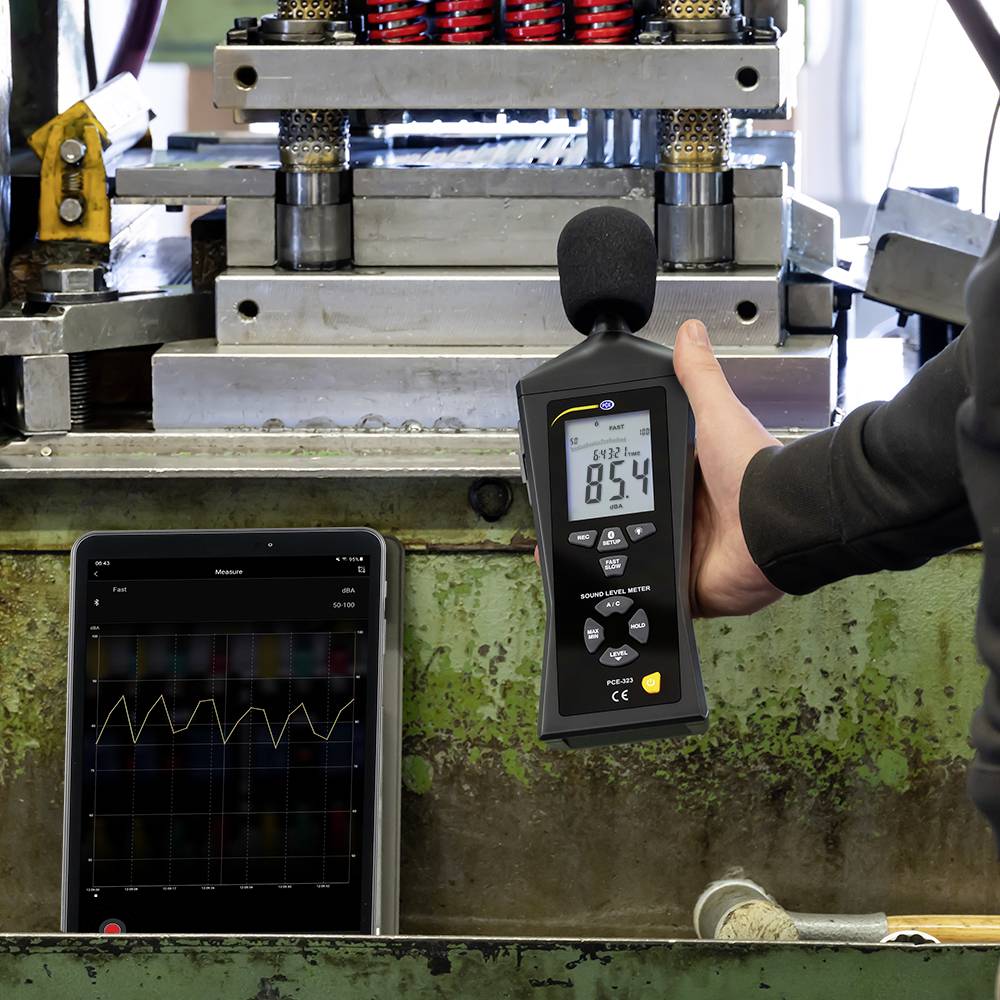

A handheld device measures decibel values in front of a machine, displaying 83.4. A tablet beside it shows a noise level curve.

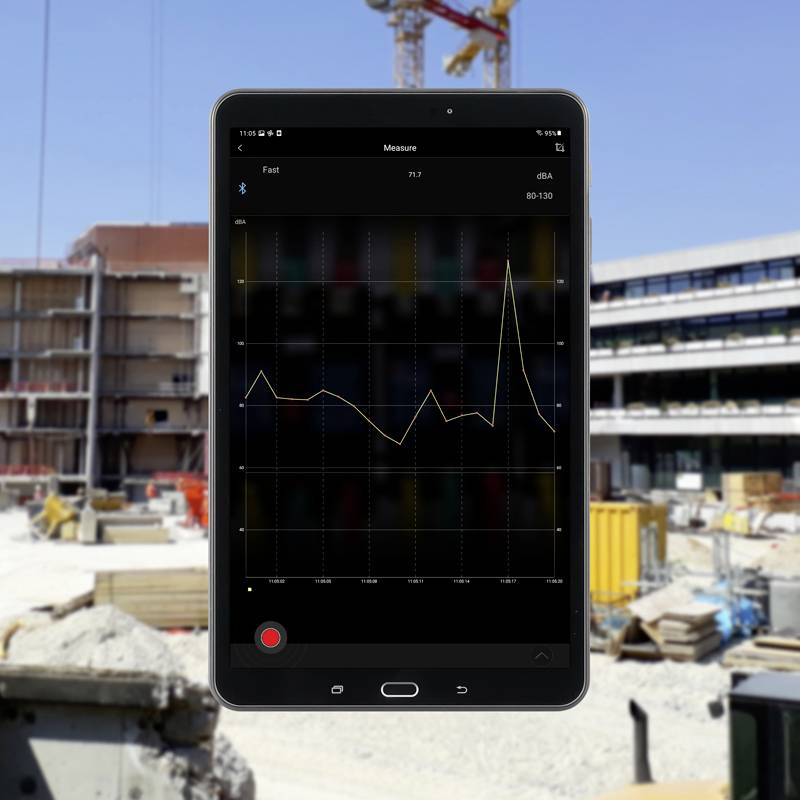

Construction site with a tablet in the foreground displaying a measurement app. Unfinished buildings, cranes, and building materials are visible in the background.

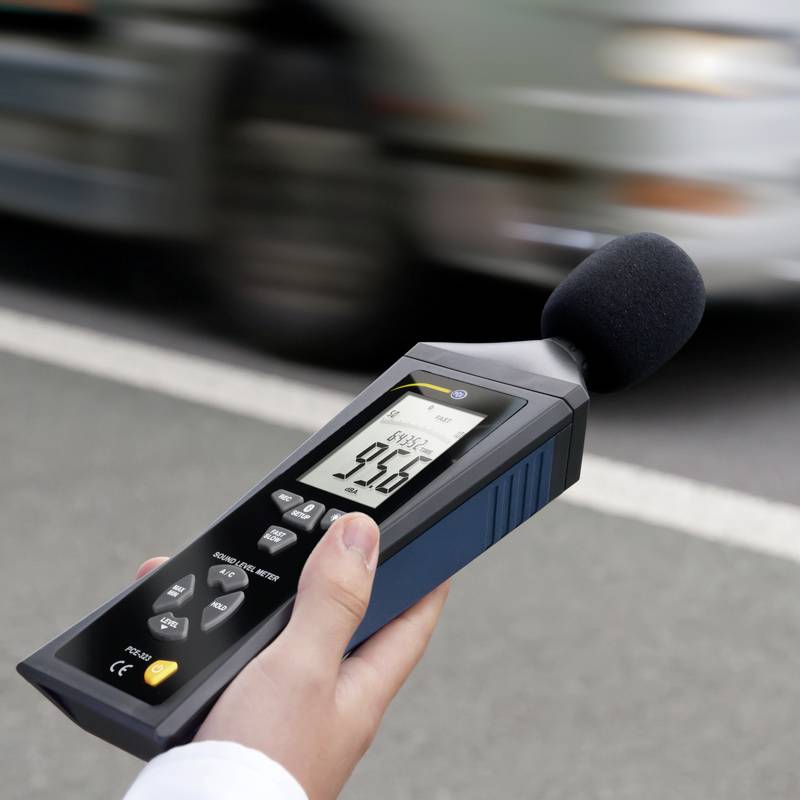

A person is holding a sound level meter near a heavily trafficked road. The device shows 99.9 decibels.

1/8

Datasheet (PDF)

Unavailable

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Sound level meter PCE-323 with Bluetooth interface

Accuracy class 2Measuring range 30 ... 130 dBVarious noise levelsBluetooth interface with free appBattery and mains operation Frequency evaluation A and C.

Technical specifications

Noise areas car 30 ... 130 dB, High 80 ... 130 dB, medium 50 ... 100 dB Low 30 ... 80 dBDynamic range: 50 dBResolution 0.1 dBAccuracy ±1.4 dB (under reference conditions @ 94 dB, 1 kHz), accuracy class IEC61672-1 class 2Frequency range 31.5 Hz...8 kHzTime Rating FAST (125 ms), SLOW (1 sec)Frequency evaluation A and C.Microphone type 1/2" electret capacitorDisplay: 4-digit LCD with backlight, display update 2 HzData memory 32700 measured valuesStorage interval 1 ... 59 secondsAnalogueue output via 1 Vrms/dB AC (Impedance 100)3.5 mm jack connection 10 mV/dB DC (Impedance 1k)Data interface USB, Bluetooth 4.0Holder 3/8" connectionFUNCTIONS MIN, MAX, HOLDIndicates noise levels above or belowSwitch off automatically after approx. 15 minutes of inactivityVoltage supply with 9 V batteryMains operation Primary: 100 ... 240 V AC, 50 / 60 HZ, 0.2 A, SECONDARY: 9 V DC, 0.5 A.Operating conditions 0 ... +40 °C, 10 ... 90 % RH, non-condensing <, altitude 2000 m.Storage conditions -10 ... +60 °C, 10 ... 75 % RH, non-condensingDimensions 278 x 76 x 50 mmWeight 350 g

Product type: Sound level meter

Reading type: SPL

SPL resolution: 0.1 dB

dB (A) SPL reading range (max.): 130 dB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 76 x 50 x 278 mm

Display: LCD

Max. frequency: 8 kHz

Min. frequency: 30 Hz

Frequency range: 30 Hz - 8 kHz

dB (A) accuracy: 1.4 dB

dB (C) accuracy: 1.4 dB

dB SPL (A) reading range: 30 - 130 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 30 - 130 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 30 dB

Width: 50 mm

Height: 278 mm

Length: 76 mm

Features: Data logger

Interfaces: USB
Bluetooth®

Documents & Downloads

Datasheet

Datasheet 2620688 PCE Instruments Sound level meter Data logger PCE-323 30 - 130 dB 30 Hz - 8 kHz USB , Bluetooth®

User & Safety Instructions

User & Safety Instructions 2620688 PCE Instruments Sound level meter Data logger PCE-323 30 - 130 dB 30 Hz - 8 kHz USB , Bluetooth®

Description

Bluetooth safety device for Android and iOS / Accuracy class 2 / Live view / Battery and mains operation / PC connection with software / Frequency assessment A and C / Stand holder / Measuring range 30 ... 130 dB / optional with ISO calibration certificate The Bluetooth industrial safety meter has a measuring range of 30 … 130 dB and can be used where noise sources are to be detected. For example, the Bluetooth industrial safety meter is used to control the sound level of punching presses, ventilation systems or on busy roads. At the push of a button, you can switch between frequency evaluation A and C on the Bluetooth safety measuring device. With the data logger function in the Bluetooth industrial safety meter up to 32700 measured values can be recorded. For an optimal positioning of the microphone, the Bluetooth industrial safety measuring device can also be mounted on a tripod. With the Bluetooth interface, the Bluetooth safety device can be set up with an Android or iOS device. The free app allows you to transfer and save the readings from the Bluetooth occupational safety meter Live. For further processing of the values measured by the Bluetooth occupational safety meter, these can then be exported in CSV file format. In addition to the Bluetooth interface, the industrial safety meter also has a mini USB interface. This allows the Bluetooth occupational safety meter to be connected to a computer. With the software for the Bluetooth occupational safety measuring device, the measured values can then be transferred live to the PC and exported as CSV for further processing, if necessary. With the 12 V DC power supply included in the delivery, the Bluetooth industrial safety measuring device can be used stationary. For mobile use, the Bluetooth industrial safety meter can be operated with a 9 V block battery. The carrying case enables the safe transport for the Bluetooth industrial safety measuring device in a mobile application.
