PCE Instruments Sound level meter Data logger PCE-428-KIT-N 25 - 136 dB 20 Hz - 12.5 kHz USB
EAN:
Part number:
Item no:
Highlights & Details

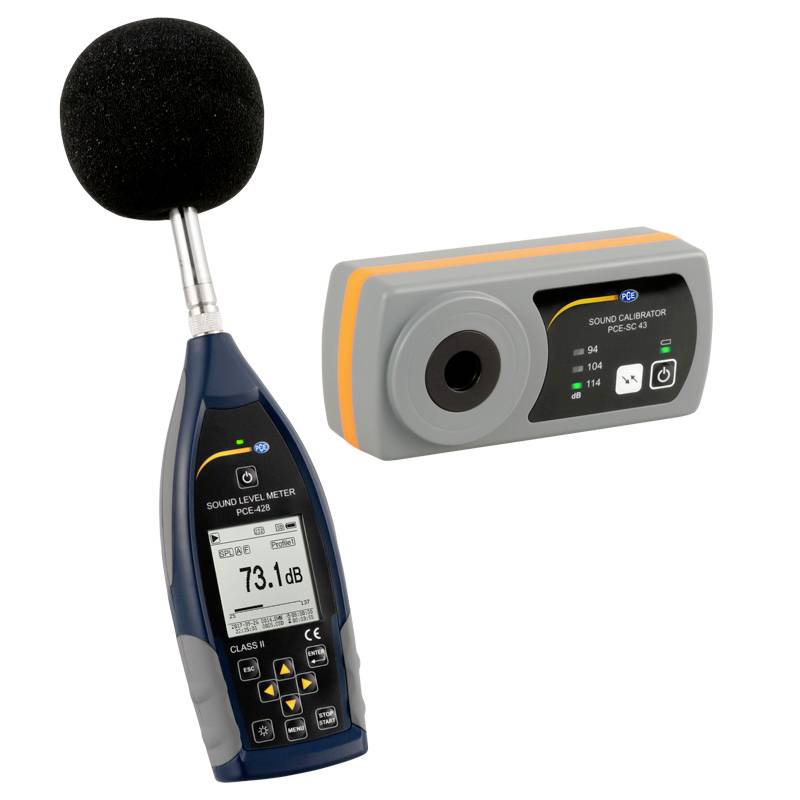

Set consisting of PCE-428 sound level meter + PCE-SC 43 calibrator
- 1/1 octave band included1/3 octave band optionalAccuracy class 2A, B, C & Z FREQUENCY EVALUATIONFast, Slow, Pulse and Peak Time RatingStatistics functionDisplay of the sound course as a graph 3 adjustable measuring profileslow inherent noiseICCP microphone 40 mV /PA Adjustable alarm levelIncl. calibrator
Technical specifications

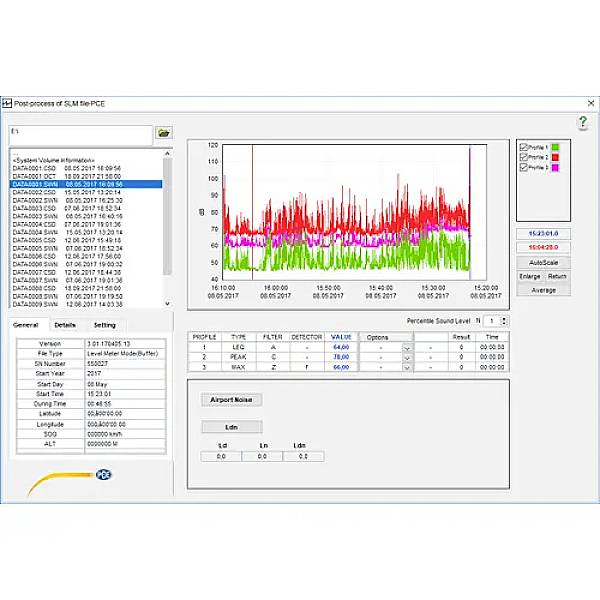

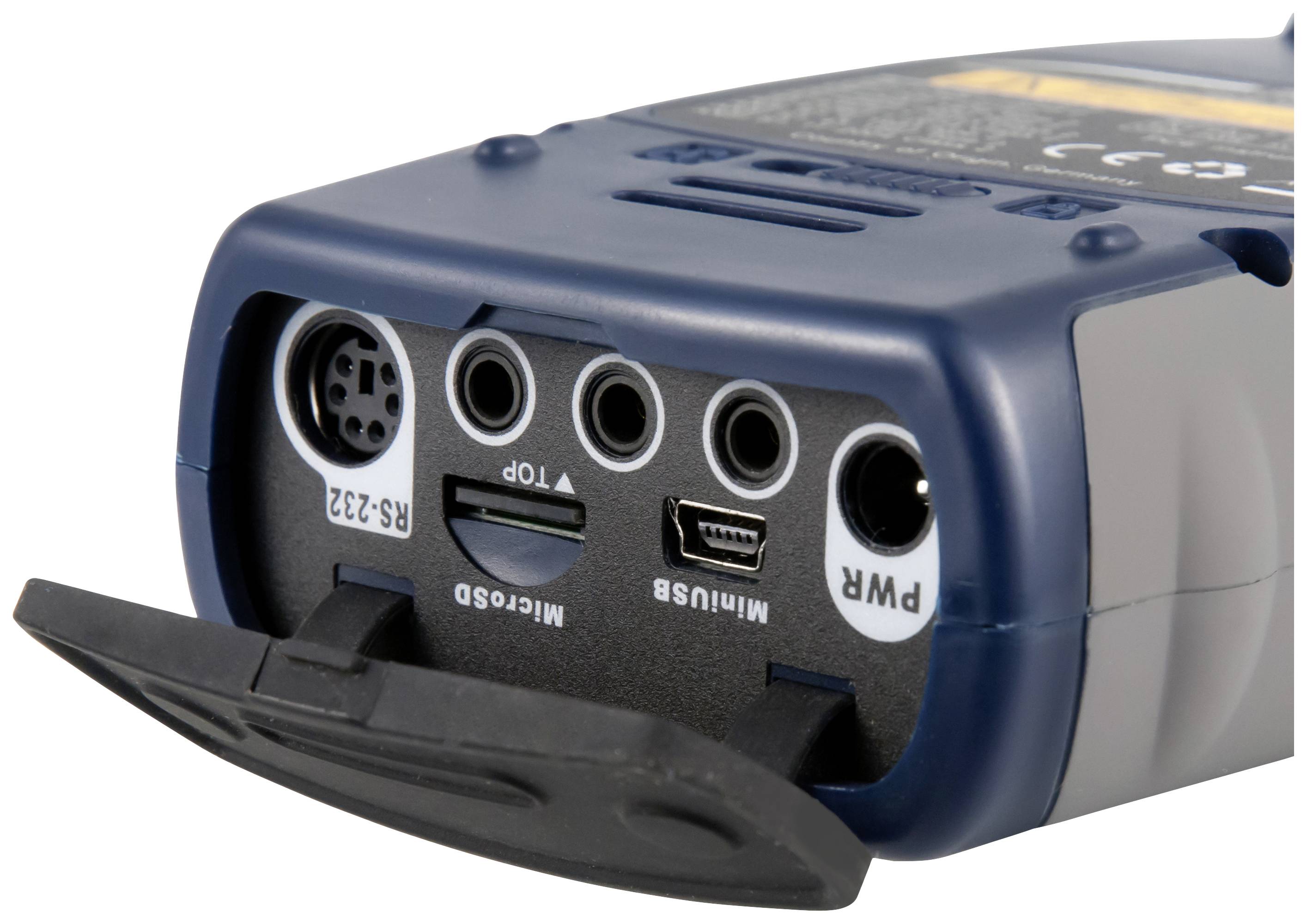

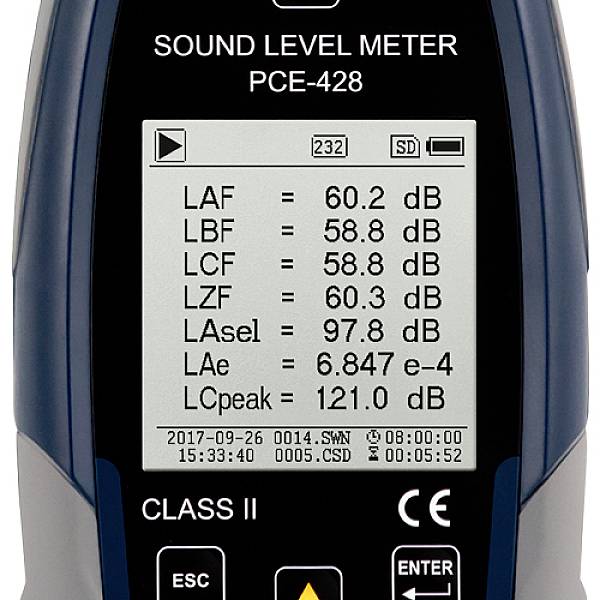

- Measuring range 25 ... 136 dBAAccuracy class 2Frequency range 20 Hz ... 12.5 kHzStandards GB/T3785.1-2010GB/T3785.2-2010IEC60651:1979IEC60804:2000IEC61672-1:2013ANSI S1.4-1983ANSI S1.43-1997Frequency analysisOctave filter: 20Hz ... 8kHz1/3 octavfilter: 20Hz ... 12.5kHzMicrophone 1/2" measuring microphone class 2Sensitivity 40 mV/PAFrequency range: 20 Hz ... 12.5 kHzTNC connectionPower supply: ICCP standardIntegral time measurement1 s ... 24 h (adjustable)Measurement functionsLXY(SPL), LXEQ, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN. X = FREQUENCY RATING: A, B, C, Z; Y = TIME EVALUATION: F, S, I; N = Statistics in %: 1 ... 99%24 hour measurementAutomatic measurement with data storageFREQUENCY EVALUATION A, B, C, ZEvaluation timeFast (F), Slow (S), Pulse (I), Peakresidual noiseMicrophone: 20 db(A), 26 db(C), 31 db(Z)Electronics: 14 db(A), 19 db(C), 24 db(Z)AD converter 24 bitSample rate Standard 48 kHzLN mode: 20 msMeasured value displayNumericBar graphGraphicalDisplay 160 x 160 pixel LCD with illuminationMemory 4 GB Micro SD cardUSB interface (memory can be read via software or directly as mass storage)RS232VOLTAGE OUTPUT AC 5V RMSDC 10 mV/dbAlarms adjustable alarmsVoltage supply4 x 1.5 V AA batteries12 V / 1 A plug power supply5 V / 1 A USBOperating time in battery mode min. 10 hDimensions 70 x 300 x 36 mm (W x H x D)Weight Approx. 620 g including batteriesClass II Sound - Calibrator PCE-SC 43Sound pressure level 94 dB, 104 dB, 114 dBAccuracy ±0.4 dB Class 2Frequency 1000 Hz for A, B, C and D Frequency evaluation Frequency accuracy ±1.7 %Stabilization time 10 seconds Total harmonic distortion <3 %environment Temperature influences <0.4 dB at 0 ... 40 °C).Humidity influences 25 ... 90% RHAtmospheric pressure <0.1 dB at 65 ... 108 kPaStability at <60 seconds ±0.15 dBStability after one year ±0.35 dB(Normal use) Operating conditions 0 ... 40 °C, <25 ... 90% RH non-condensingStorage conditions -20 ... 50 °C, <90% RH, non-condensingAutomatic switch-off after 20 minutesPower supply 2 x 1.5 V AA batteriesBattery life approx. 50 hoursDimensions 60 x 130 x 37.5 mmWeight 400 g
- Product type
Sound level meter
- Reading type
SPL
- SPL resolution
0.1 dB
- dB (A) SPL reading range (max.)
136 dB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 70 x 36 x 300 mm
- Display
LCD
- Max. frequency
12.5 kHz
- Min. frequency
20 Hz
- Frequency range
20 Hz - 12.5 kHz
- dB (A) accuracy
1.4 dB
- Weight
620 g
- Calibration service
Two point calibration at 94 dB and 114 db
- dB SPL (A) reading range
25 - 136 dB
- dB (A) SPL reading range (min.)
25 dB
- Reading category
CAT II
- Width
36 mm
- Height
300 mm
- Length
70 mm
- Features
Data logger
- Interfaces
USB
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2620690 PCE Instruments Sound level meter Data logger PCE-428-KIT-N 25 - 136 dB 20 Hz - 12.5 kHz USB
Description

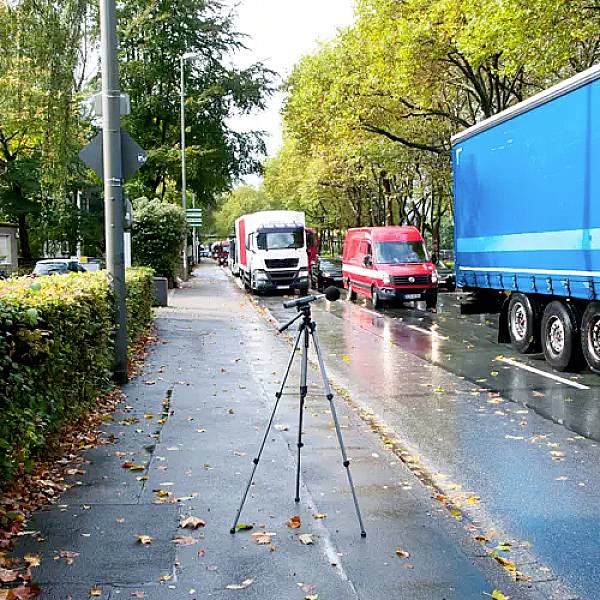

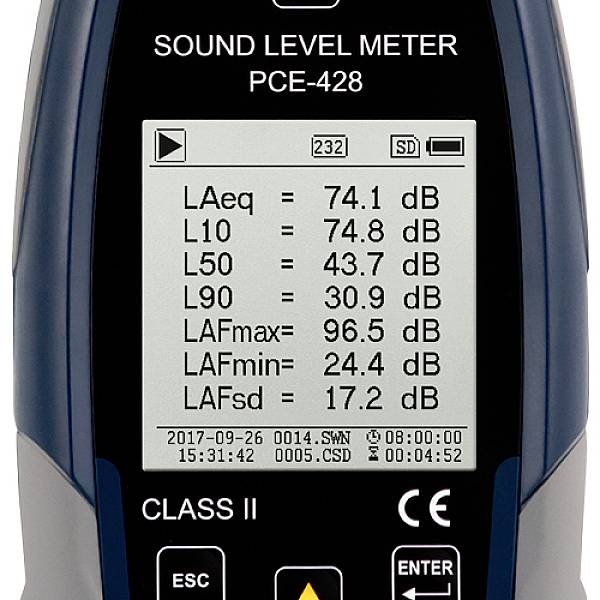

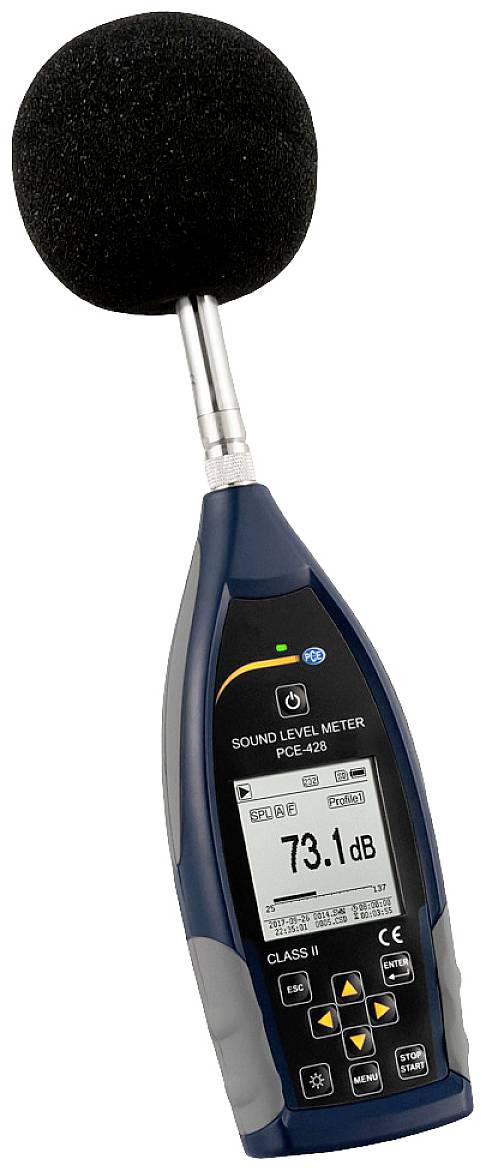

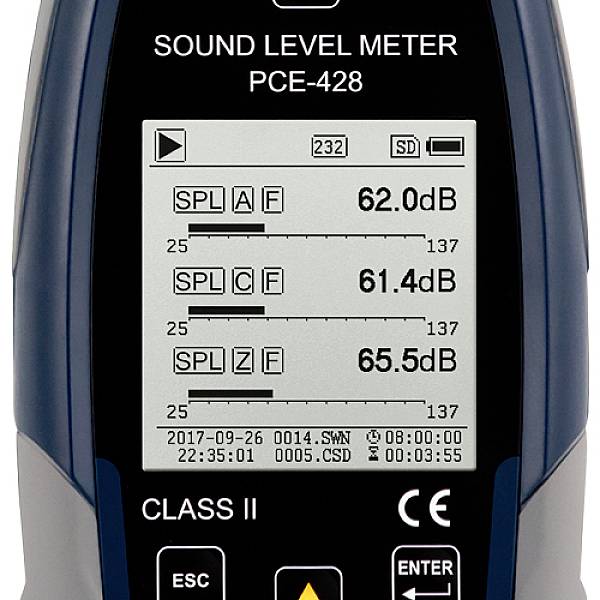

Sound level meter with class II sound calibrator sound level meter with octave filter or 1/3 octave filter for frequency analysis / USB interface / data logger / A, B, C, Z evaluation / Fast, Slow and pulse analysis The PCE-428 sound level meter is an optimal sound level meter for measurements at work places, construction sites, traffic, airports, etc. The sound level meter is a class 2 device and is equipped with an octave band frequency filter. Optionally, the PCE-428 sound level meter can be upgraded by a 1/3 octave band filter. In addition to the numerical display of the measured value, a graph can show the progression of the sound level. The sound level meter has different frequency ratings such as A, B, C and, For Example, the sound meter can also display measurements with the time ratings Fast, Slow, Pulse and Peak. The measuring range of the sound level meter is 25 ... 136 dBA at a frequency of 20 Hz ... 12.5 kHz. 3 different measuring profiles can be stored on the sound level meter. Here, the user can decide which parameters the sound level meter should record. Here, for example, you can choose between Laeq, LcPeak, LaFmax, LaFMin, etc. The peaking function in the sound level meter allows the maximum sound pressure level to be recorded and frozen in the display during a long-term measurement. A 24 bit AD converter and the specially developed electronics of the sound level meter contribute to the reduction of the inherent noise to a very low level. A sampling of the measuring signal with more than 48 kHz enables a high accuracy and improved stability of the measured value on the sound level meter.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x sound level meter PCE-428-KIT 1 x 1/2" measuring microphone class 2 1 x wind noise suppressor (foam ball) 1 x USB interface cable 1 x software 1 x power supply 1 x carrying case 1x user manual 1 x Calibrator PCE-SC 43 Note: The sound level meter is supplied with an octave band filter. An upgrade with a 1/3 octave band filter is optionally possible (see selection option)
