Buy PCE Instruments Sound level meter Data logger PCE-SLM 10 30 - 130 dB 31.5 Hz - 8.5 kHz USB

Digital sound level meter display reading 75.1 dB on a black screen<br>

NoiseMeter real-time measurement window showing a green digital 40.8 dB reading, a timestamped data table, and a red sound-level line graph over time.

Black wall-mountable electronic device with front ports, indicator lights, and a top instruction label; angled product view on white background.

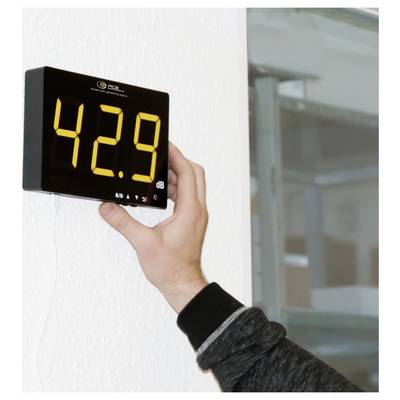

Hand holding a digital sound level meter mounted on a wall, displaying 42.9 dB.

Black PCE Instruments sound level meter with large digital display showing dB, plus a blue USB cable above it.

1/5

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 247.90 / piece)

€ 247.90

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Sound level meter PCE-SLM 10

75 mm digit height
30 ... 130 dBA measuring range
0.1 dB or 1 dB resolution
Wall mounting
Operation via micro-USB socket
Notification
For offices, schools, function rooms
Memory for 657,000 measured values

Technical specifications

Product type: Sound level meter

Reading type: SPL

SPL resolution: 0.1 dB

dB (A) SPL reading range (max.): 130 dB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 210 x 28 x 130 mm

Display: LED

Max. frequency: 8.5 kHz

Min. frequency: 31.5 Hz

Frequency range: 31.5 Hz - 8.5 kHz

dB (A) accuracy: 1.5 dB

Weight: 453 g

dB SPL (A) reading range: 30 - 130 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 30 - 130 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 30 dB

Width: 28 mm

Height: 130 mm

Length: 210 mm

Features: Data logger

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 2299561 PCE Instruments Sound level meter Data logger PCE-SLM 10 30 - 130 dB 31.5 Hz - 8.5 kHz USB

User & Safety Instructions

User & Safety Instructions 2299561 PCE Instruments Sound level meter Data logger PCE-SLM 10 30 - 130 dB 31.5 Hz - 8.5 kHz USB

Description

The PCE-SLM 10 dB display is suitable for continuous measurement and visualization of the sound pressure level. The PCE-SLM 10 dB display is used in schools, open-plan offices, bars, clubs and other transmission rooms. The large digits of the dB display make the measured value easy to read at any time. Due to the LED display, this is also possible in dark environments without any problems. The dB display is operated via USB with the optionally available power supply. The measuring range of the dB display ranges from 30 ... 130 dB The sound level meter shows the measured value A weighted. The time evaluation of the dB display is always fast. The frequency range of the 6 mm condenser microphone extends from 31.5 Hz to 8.5 kHz. The dB display can be connected to the PC via the USB interface. The software can be used to transfer live measurements to a computer. The dB display also has an internal memory that can be read with the software.

This text is machine translated.
