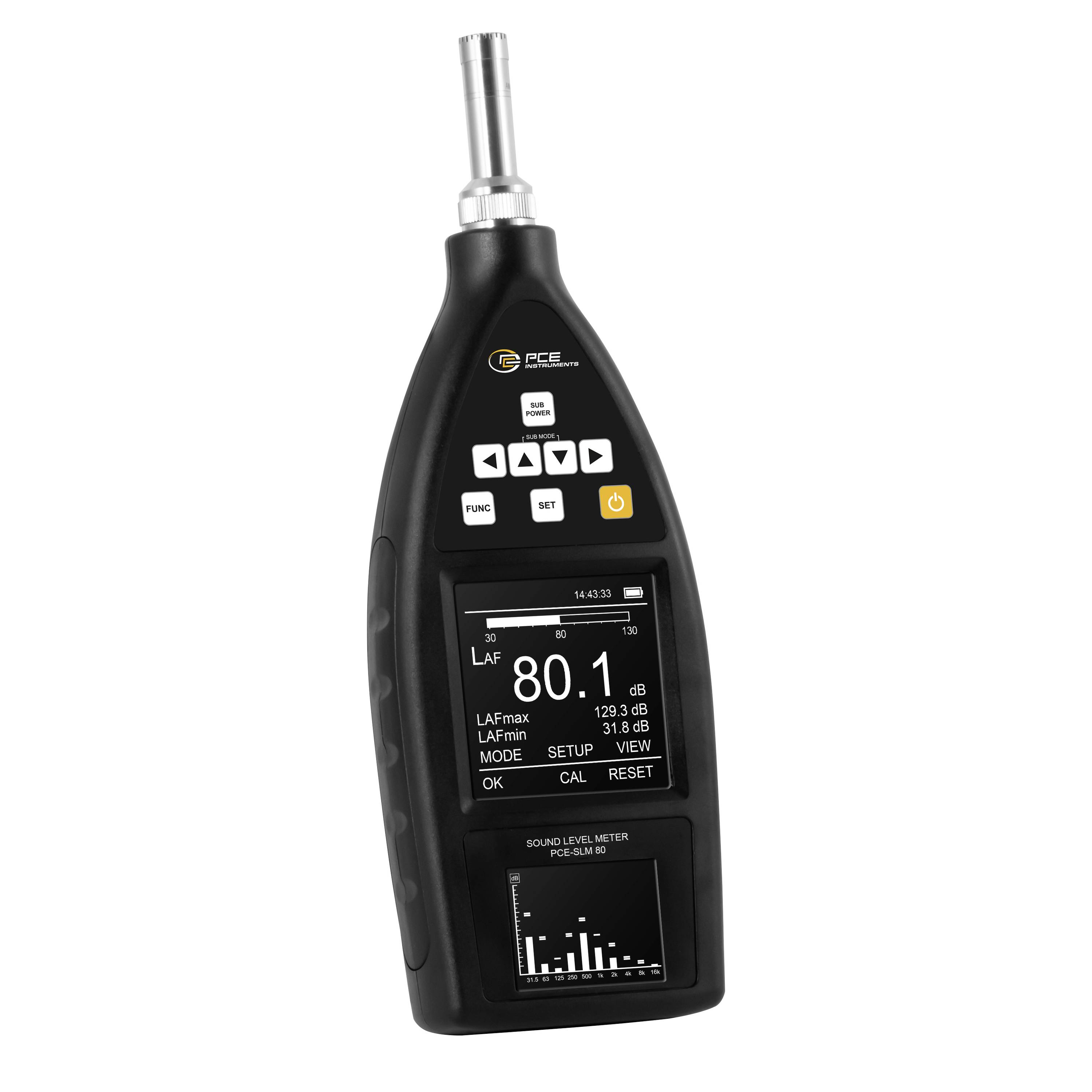

PCE Instruments Sound level meter Data logger PCE-SLM 80 30 - 130 dB USB-C
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE SLM 80
- Eight operating modes: Standard sound level meter, integral mean, parallel measurement, statistical analysis, 24-hour measurement, 1/1-octave band, 1/3-octave band, indoor noise measurement
- Frequency rating: A, C, Z, low frequency
- Time rating: Fast (F), slow (S), pulse (I)
- Frequency range 10 Hz to 20 kHz (level 1)
- 8 GB memory for automatic logging
- Power supply: 5 AA batteries, USB power supply
- LCD-display 128×128 pixels with 0.1 dB resolution and warning displays

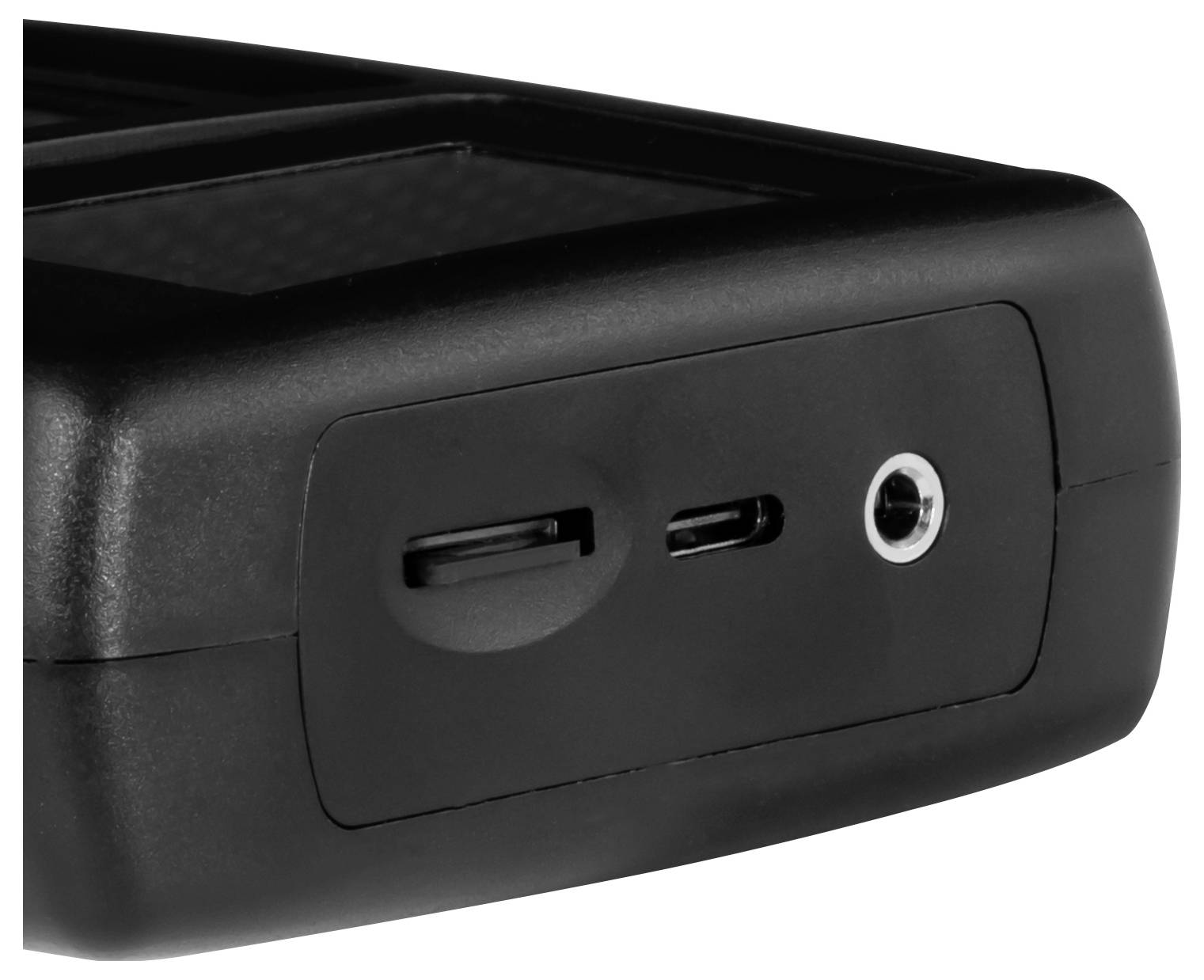

- Analogue output (3.5 mm two-channel headphone jack) and digital type-C output
Technical specifications
- Sound level
- Measuring range 30 ... 130 dB
- Resolution 0.1 dB
- Accuracy 0.7 dB @1 kHz
- General Technical Data
- Analogue output AC/DC
- Measurement functions MIN, MAX, Lpeak
- Time evaluation fast (125 ms), slow (1 s), pulse (35 ms)
- FREQUENCY WEIGHTING A, C, Z
- Frequency 10 ... 20000 Hz
- Display type LCD
- Display update rate 1 x per second
- Storage capacity: 8 GB
- Memory capacity (additional information) expandable to 32 GB

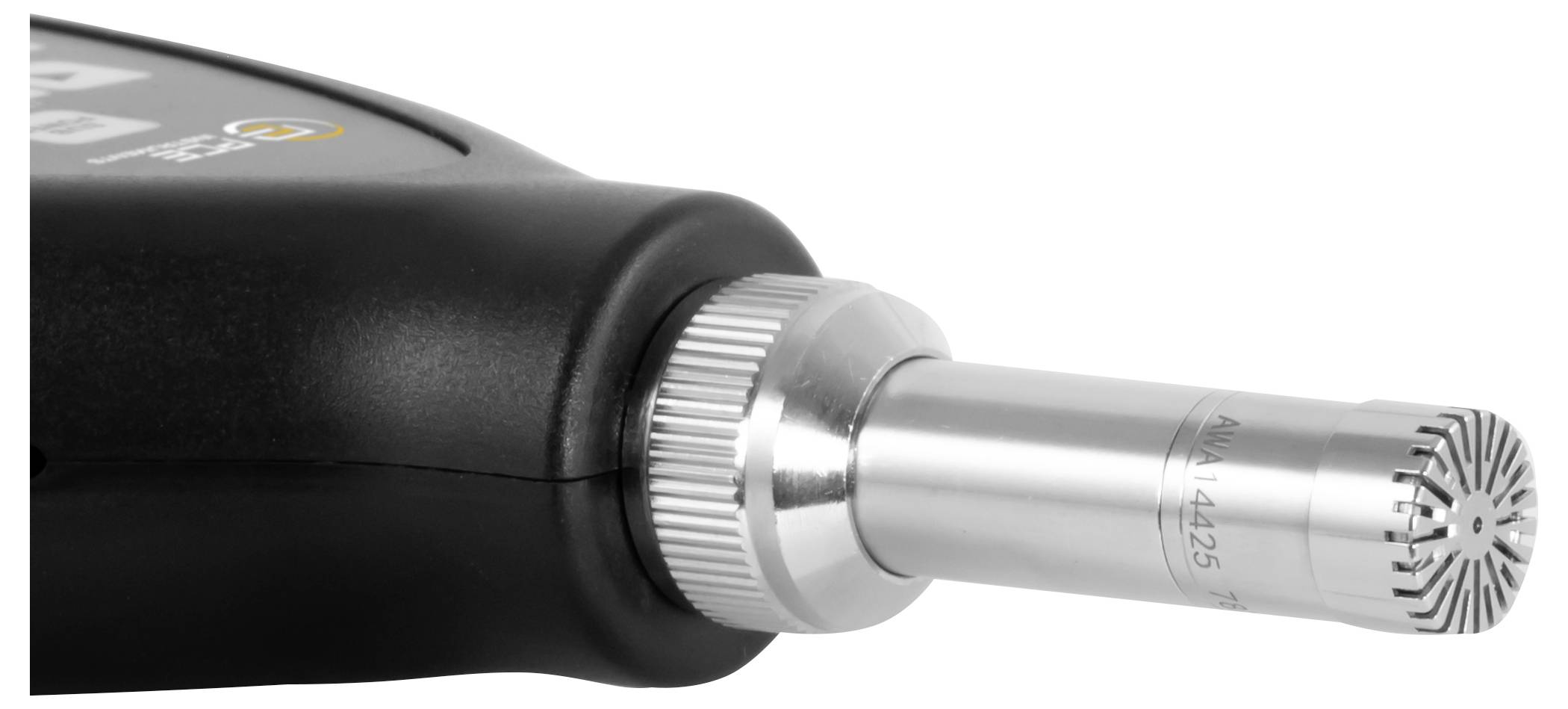

- Microphone type outdoors
- Class 1 classification
- Interface USB-C

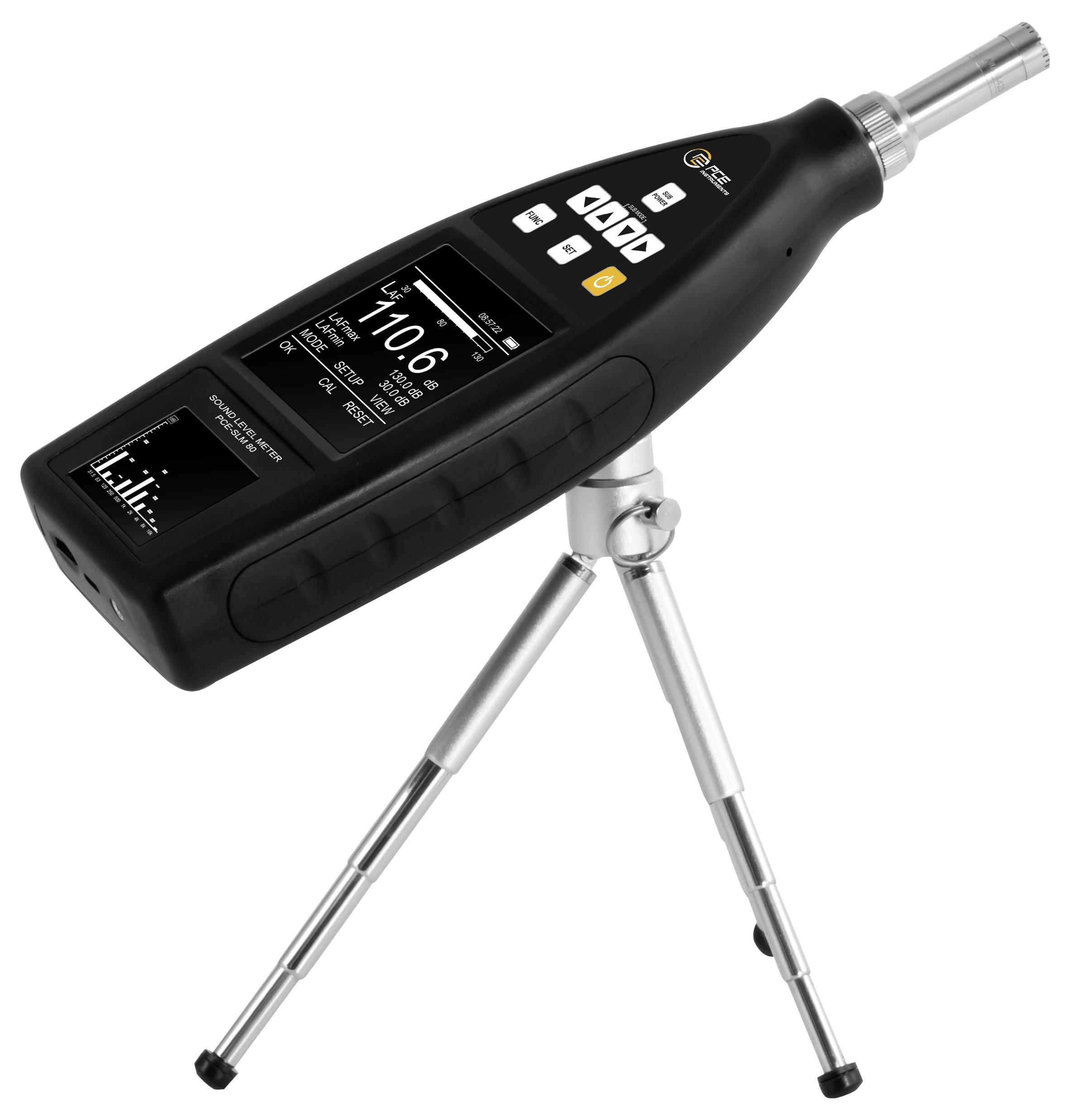

- Tripod socket 1/4 inch
- Menu language English (GB), English (US)
- Protection class (device) IP20
- Power supply 7.5 V (AA batteries)
- Battery 5 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions -20 ... 60 °C , 0 ... 95 % r.F.
- Storage conditions -20 ... 60 °C , 0 ... 95 % r.F.
- Dimensions ( L x W x H ) 267 x 90 x 35 mm
- Weight 385 g.
- Product type
Sound level meter
- Reading type
SPL
- SPL resolution
0.1 dB
- dB (A) SPL reading range (max.)
130 dB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 267 x 90 x 35 mm
- Display
LCD
- dB (A) accuracy
0.7 dB
- Weight
385 g
- dB SPL (A) reading range
30 - 130 dB
- dB (A) SPL reading range (min.)
30 dB
- Width
90 mm
- Height
35 mm
- Length
267 mm
- Features
Data logger
- Interfaces
USB-C
Documents & Downloads
Datasheet
Datasheet 3812969 PCE Instruments Sound level meter Data logger PCE-SLM 80 30 - 130 dB USB-C
User & Safety Instructions
User & Safety Instructions 3812969 PCE Instruments Sound level meter Data logger PCE-SLM 80 30 - 130 dB USB-C
Description
The noise level meter is specially designed for the reliable and precise measurement of noise in different environments. It supports eight operating modes, including standard sound level measurement, integral mean, statistical analysis, parallel measurement, 24-hour measurement as well as 1/1- and 1/3-octave measurements and indoor noise measurements.
The device measures frequency-evaluated sound pressure levels with A-, C-, Z- and low-frequency evaluation as well as time-weighted sound levels with fast, slow and pulse-time evaluations. It meets the requirements of national and international standards such as GB/T 3785.1-2010 and IEC 61672-1:2013. The integrated 16-GB-memory card enables the automatic storage of calibration and measuring protocols.
Power is supplied by 5 AA batteries; a power bank can be used for longer measurements as an option. The device features an LCD display with warning signals for overload, undervoltage and battery, an analogue and digital output interface and a USB interface for data transfer. Explosion-proof versions are available that comply with the protection requirements Ex ib I MB and Ex ib IIb T4 GB. Ideal is suitable for measurements in electromechanical systems, ambient noise, traffic noise as well as industrial hygiene and field noise.
This text is machine translated.
The device measures frequency-evaluated sound pressure levels with A-, C-, Z- and low-frequency evaluation as well as time-weighted sound levels with fast, slow and pulse-time evaluations. It meets the requirements of national and international standards such as GB/T 3785.1-2010 and IEC 61672-1:2013. The integrated 16-GB-memory card enables the automatic storage of calibration and measuring protocols.
Power is supplied by 5 AA batteries; a power bank can be used for longer measurements as an option. The device features an LCD display with warning signals for overload, undervoltage and battery, an analogue and digital output interface and a USB interface for data transfer. Explosion-proof versions are available that comply with the protection requirements Ex ib I MB and Ex ib IIb T4 GB. Ideal is suitable for measurements in electromechanical systems, ambient noise, traffic noise as well as industrial hygiene and field noise.
This text is machine translated.
Scope of delivery
- 1 x PCE-SLM 80 sound level meter
- 5 x 1.5 V AA batteries
- 1 x 8 GB micro-SD card
- 1 x USB-C cable

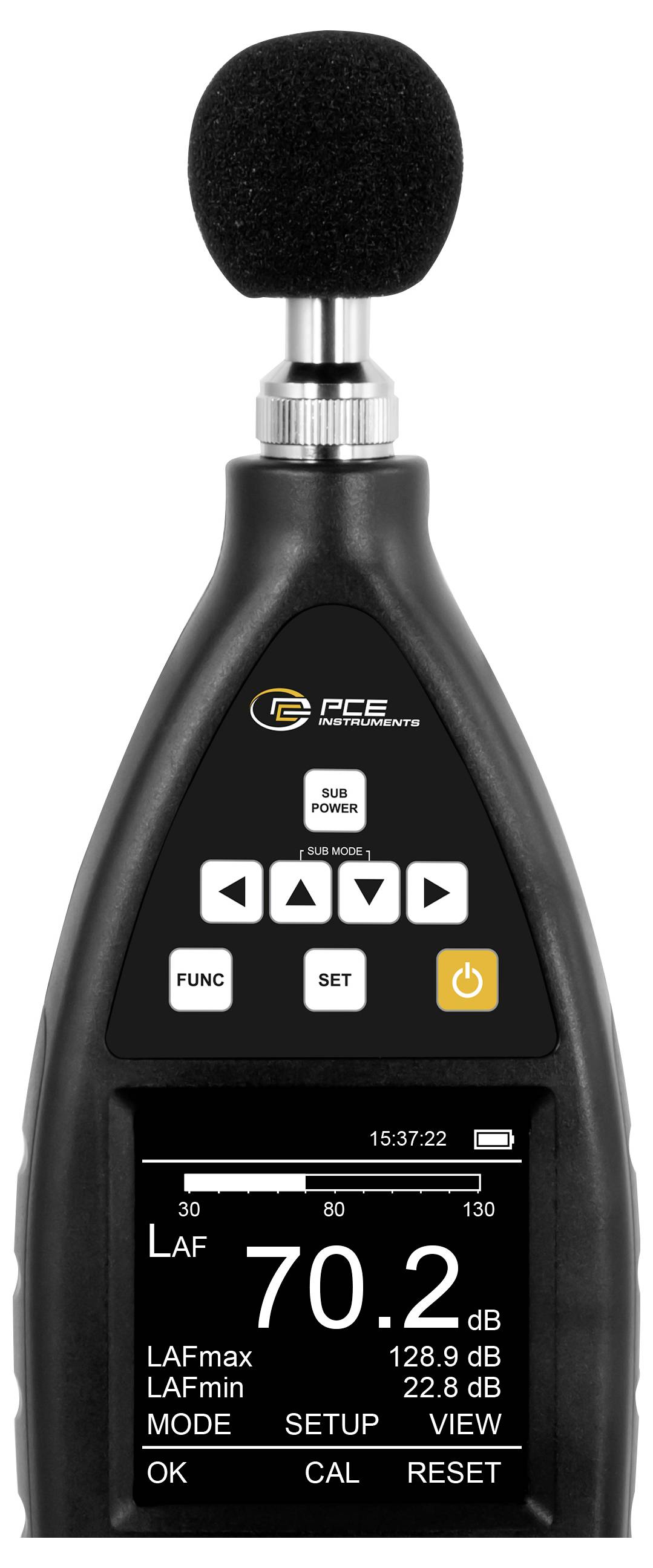

- 1 x wind-protection for microphone
- 1 x transport case
- 1 x PC software on the USB stick
- 1x user manual
