Buy PCE Instruments Sound level meter PCE-324 30 - 130 dB

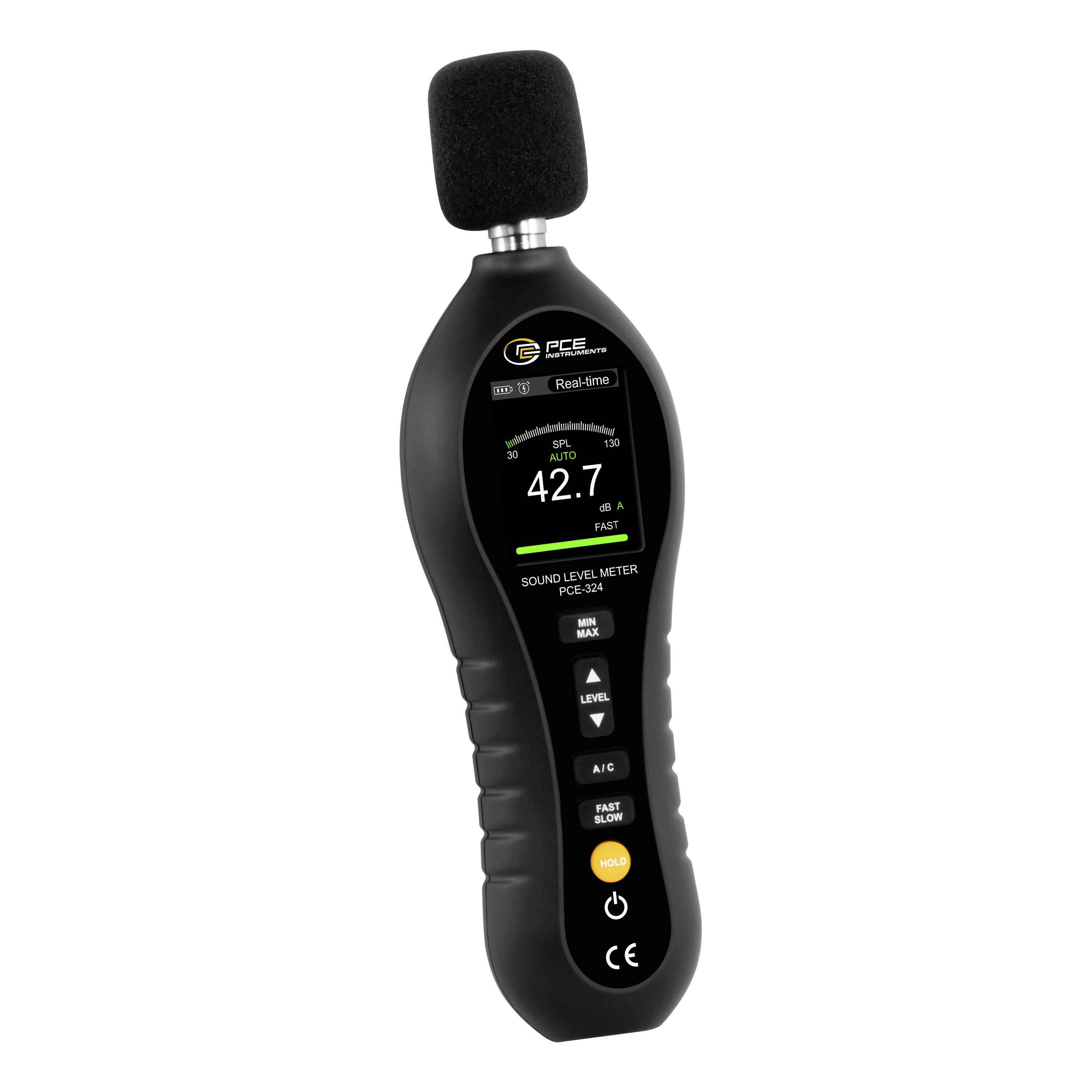

Handheld sound level meter with foam microphone, showing a digital reading of 42.7 dB A on its display.

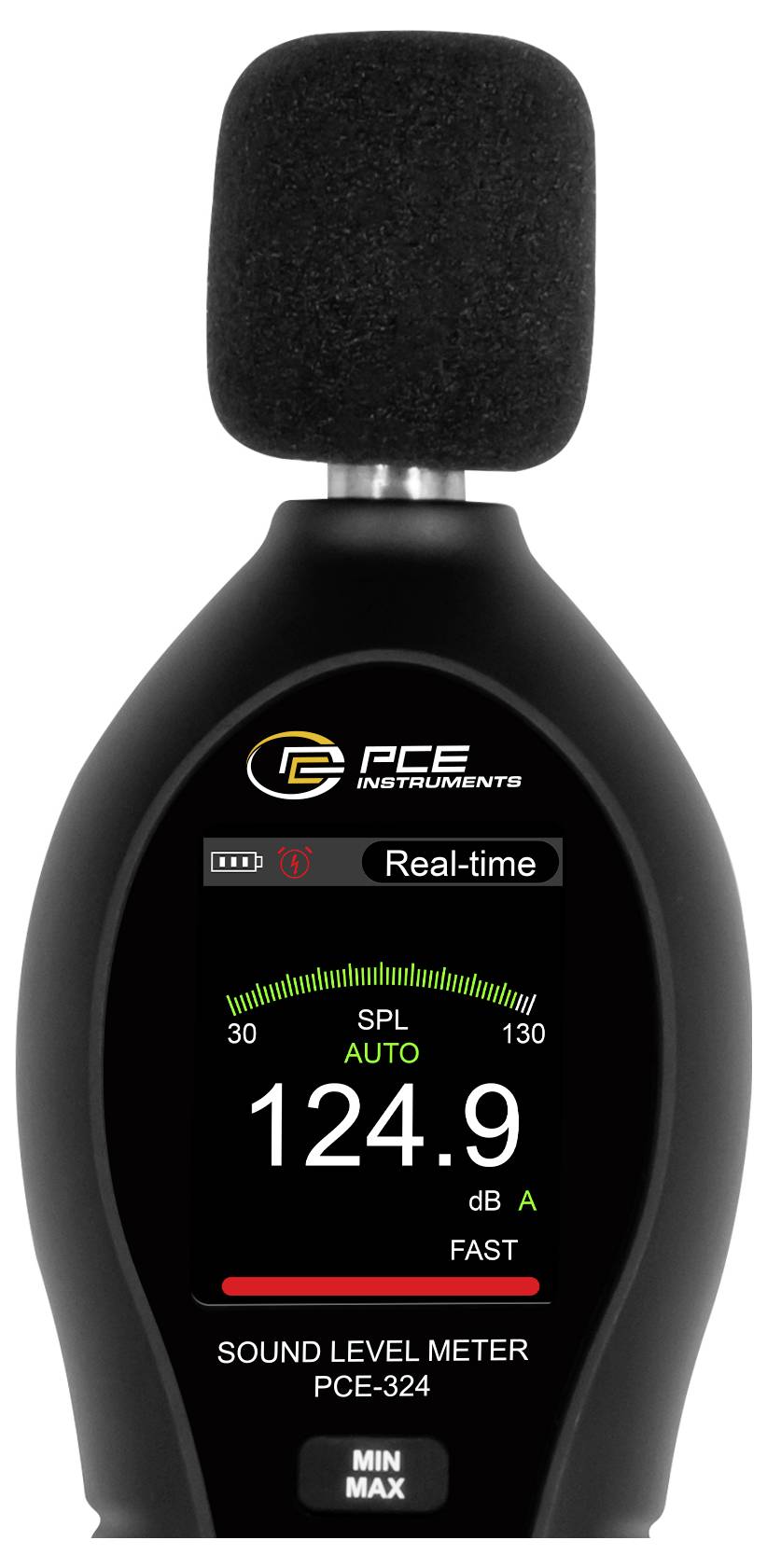

Handheld PCE sound level meter showing real-time SPL at 124.9 dB A, with min/max button and red level bar.

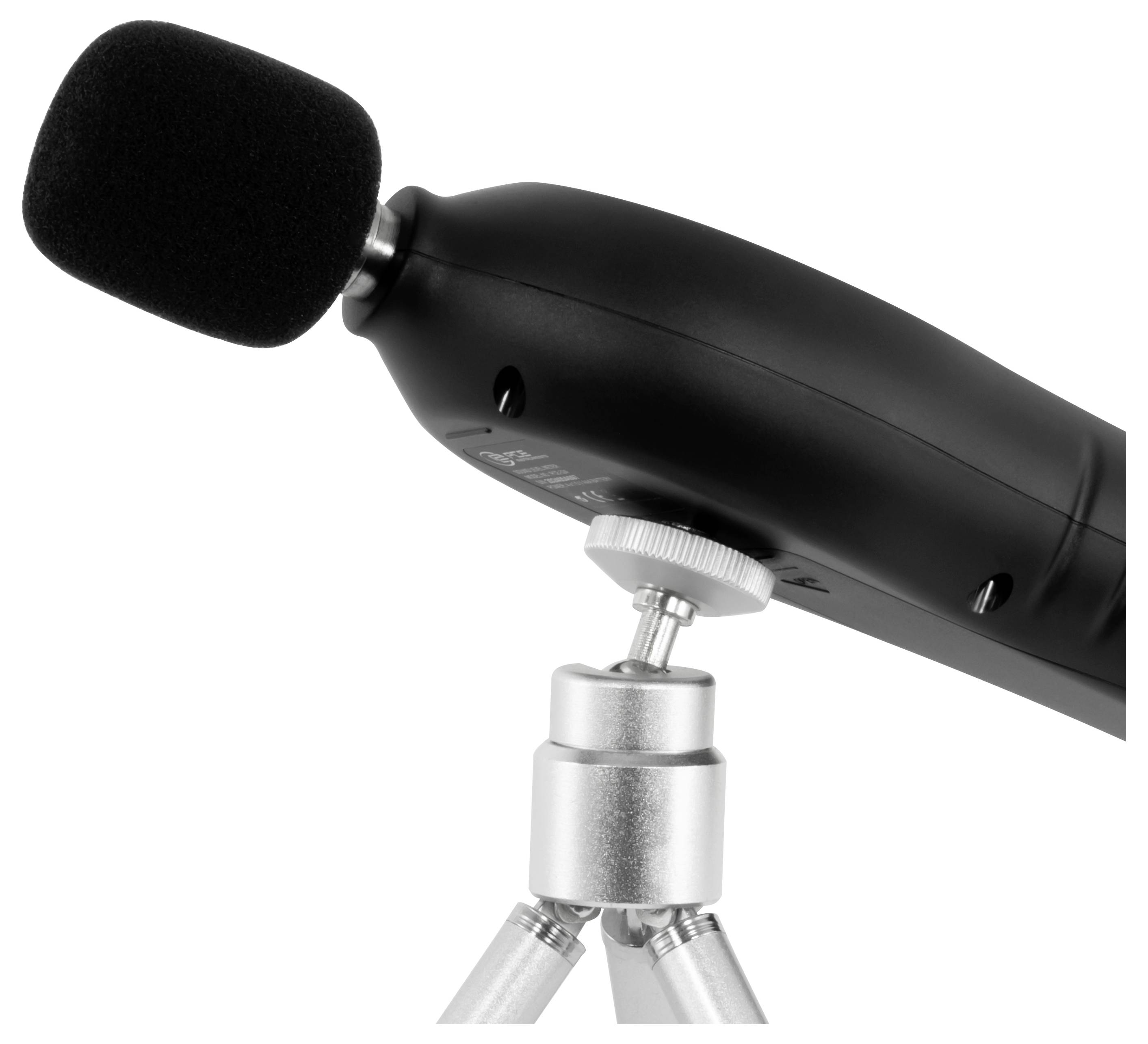

Black handheld microphone mounted on a silver tripod stand against a white background.

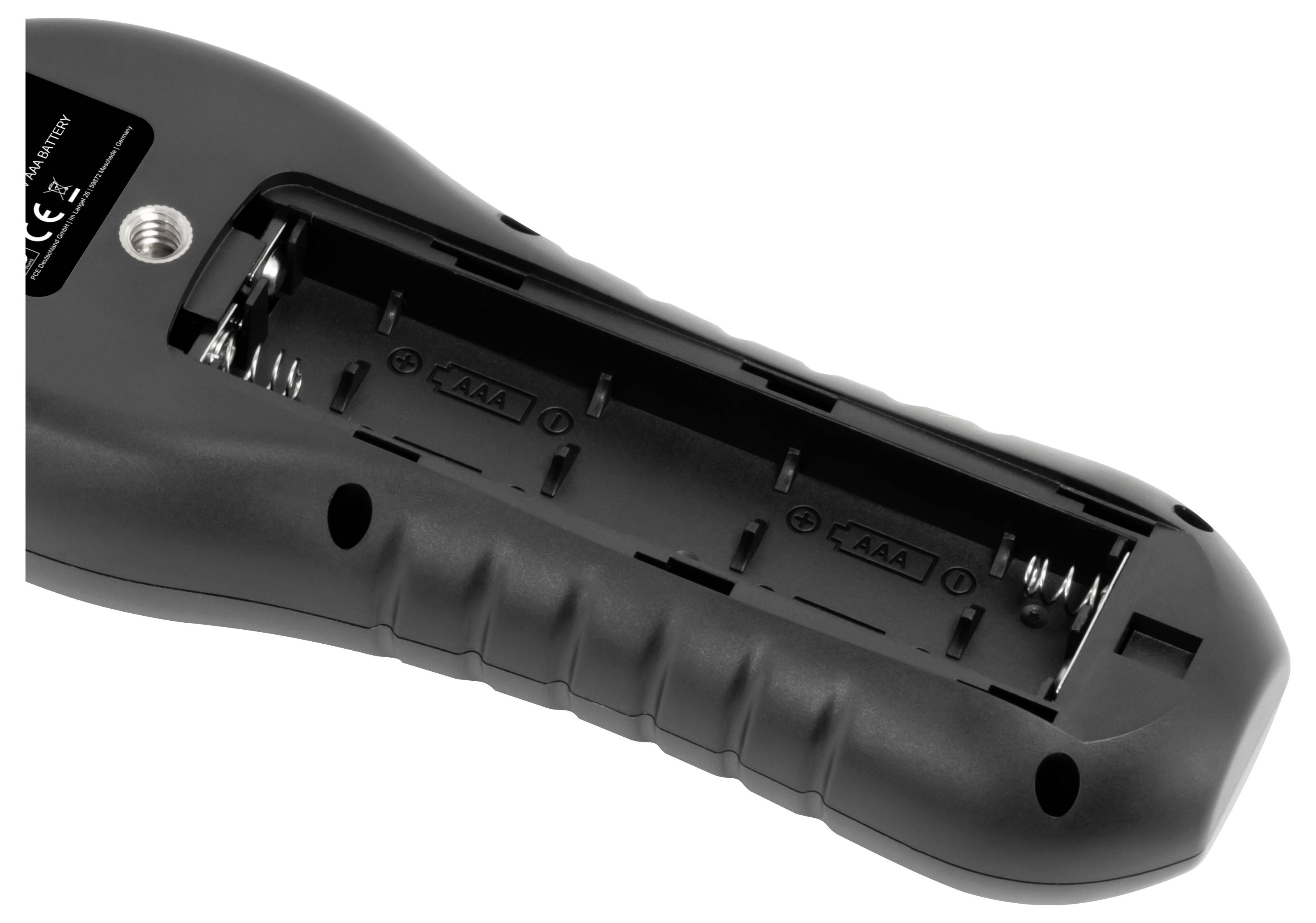

Open battery compartment on the underside of a black electronic device, showing slots for two AA batteries and spring contacts.

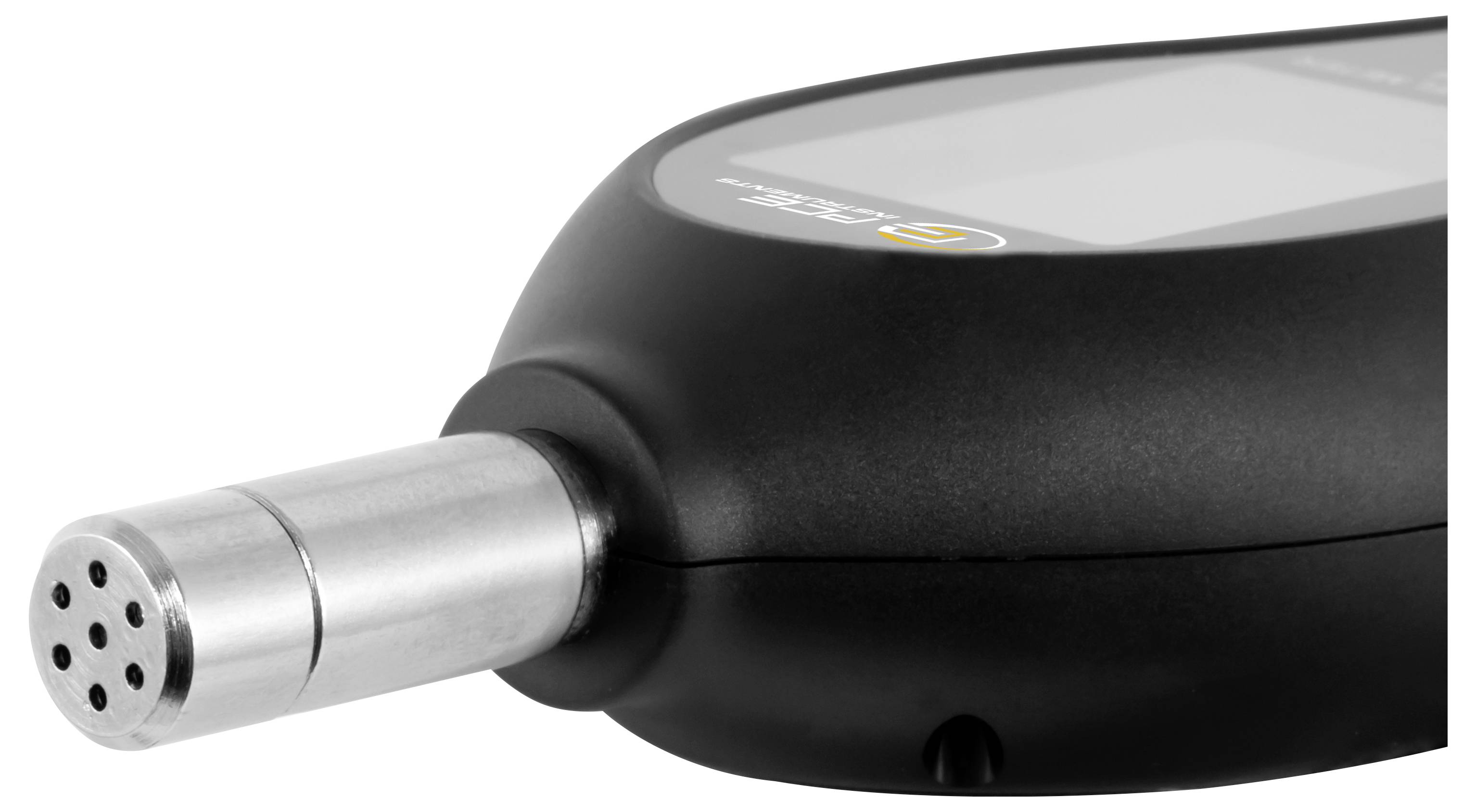

Close-up of a black handheld device with a silver cylindrical metal probe extending from the front.

PCE Instruments Sound level meter PCE-324 30 - 130 dB-5

1/6

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

16 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 72.26 / piece)

€ 72.26

plus VAT.

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-34th

Automatic / manual selection of measuring range
Fast and slow time evaluation
Frequency weighting A and C.
Numeric value and traffic light display
MEASUREMENT FUNCTIONS: MIN, MAX, HOLD
Automatic power off
Accuracy class 2

Technical specifications

Sound level
Measuring range 30 ... 130 dBA
Resolution 0.1 dB
Accuracy ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)
Sound level
Measuring range 35 ... 130 dBC
Resolution 0.1 dB
Accuracy ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)
Sound level
Measuring range 30 ... 80 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)
Sound level
Measuring range 60 ... 110 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)
Sound level
Measuring range 80 ... 130 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)
General Technical Data
MEASUREMENT FUNCTIONS MIN, MAX, HOLD
Time evaluation fast (125 ms), slow (1 s)
Frequency weighting A, C
Display type LC-color display with illumination
Display size 2 inches
Measurement rate 2 x per second
Microphone type capacitor microphone
Standard(s) IEC 61672-1 (Class II)
Automatically switches off approx. 20 min.
Automatic switch-off deactivated Yes
Tripod socket 1/4 inch
Menu language English (US), English (GB)
Protection class (device) IP20
Battery 4 x 1.5 V AAA battery , alkaline-manganese
Capacity 1200 mAh
Operating conditions 0 ... 40 °C , 10 ... 80 % r.F.
Storage conditions -10 ... 60 °C , 10 ... 70 % r.F.
Dimensions ( L x W x H ) 210 x 64 x 32 mm
Weighs 123 g.

Product type: Sound level meter

Reading type: SPL

SPL resolution: 0.1 dB

dB (A) SPL reading range (max.): 130 dB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 210 x 64 x 32 mm

Display: LCD

Weight: 123 g

dB SPL (A) reading range: 30 - 130 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 35 - 130 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 35 dB

Width: 64 mm

Height: 32 mm

Length: 210 mm

Documents & Downloads

Datasheet

Datasheet 3369047 PCE Instruments Sound level meter PCE-324 30 - 130 dB

User & Safety Instructions

User & Safety Instructions 3369047 PCE Instruments Sound level meter PCE-324 30 - 130 dB

Description

The sound level meter has a wide measurement range from 30 to 130 dB (dBA) and 35 to 130 dB (dBC), making it suitable for accurate measurements in different acoustic environments. The accuracy of the device is ±1.5 dB at 94 dB @ 1 kHz. Equipped with A and C frequency evaluation and both faster and slower time evaluation, our sound level meter is versatile and can be adapted to different requirements.

The 2 inch LCD color display provides clear, numeric display of measurements for easy-to-read viewing. In addition, the equipment possesses a scale that enables a quick visual evaluation of the sound level. With a measurement rate of 2 x per second, the sound level meter records acoustic changes in almost real time and is therefore particularly suitable for monitoring sound levels in dynamic environments.

The sound level meter is equipped with functions such as MIN, MAX and HOLD. Thanks to the automatic switch-off function the device is energy-efficient and protects the battery, which extends the operating time. The sound level meter complies with IEC 61672-1 (Class II). It is operated with 4 AAA-batteries and can thus be used mobile and flexibly. Whether in residential areas, offices, production sites or other environments - this sound level meter is versatile and provides precise results in the most varied acoustic scenarios.
