Buy PCE Instruments Sound level meter PCE-325 30 - 90 dB 31.5 Hz - 8000 Hz Micro USB

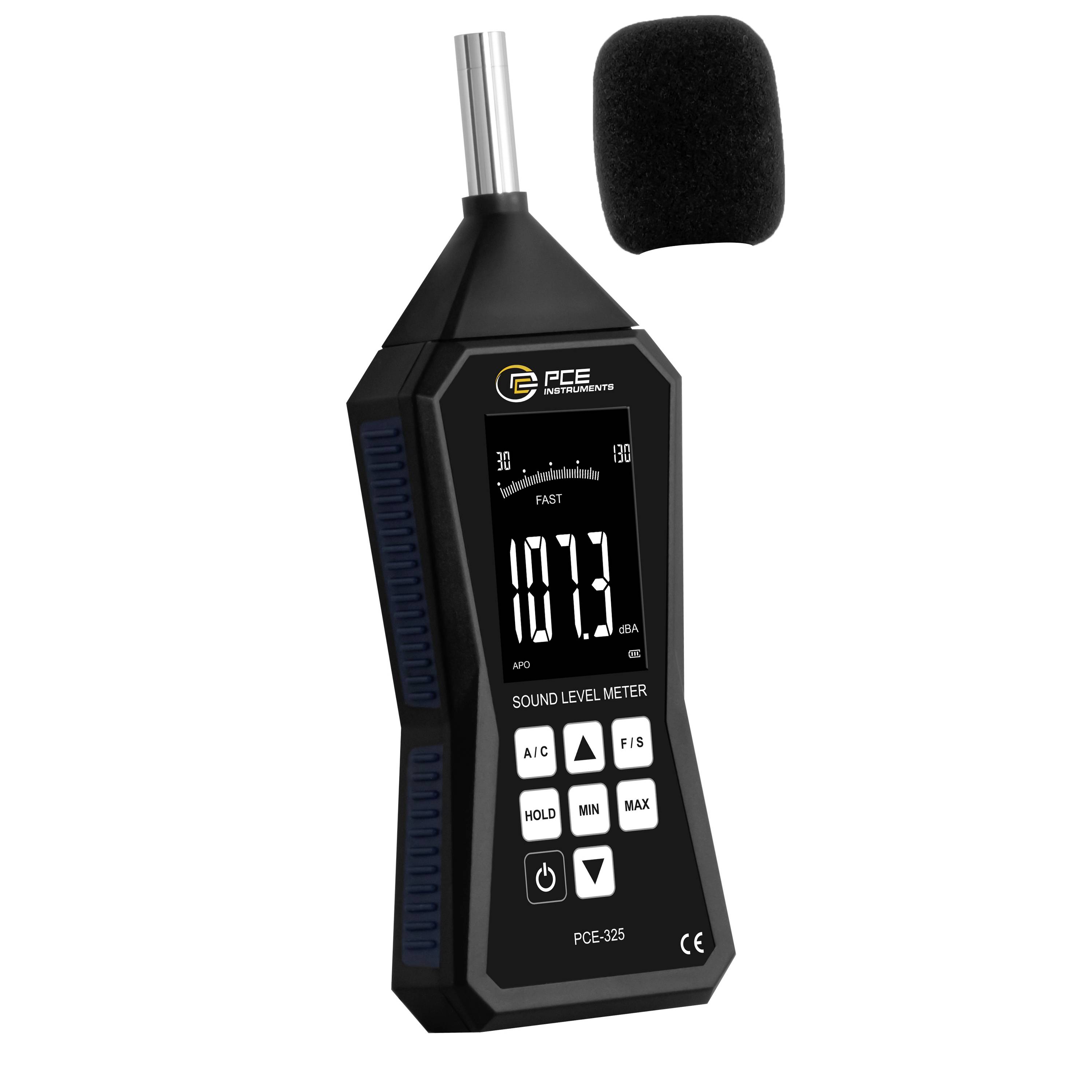

Handheld PCE sound level meter with attached microphone and foam windscreen, showing a digital decibel reading on its display.<br>

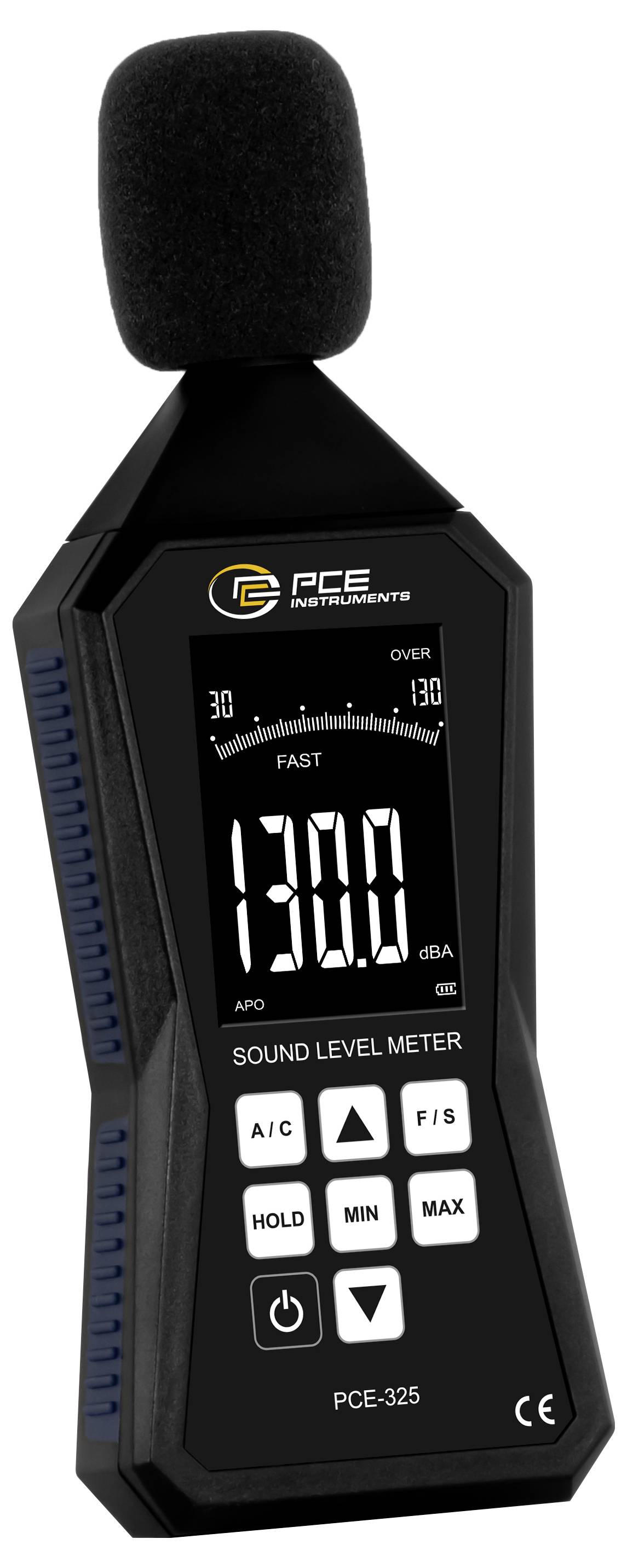

Handheld PCE sound level meter showing a reading of 130.0 dBA, with A/C and Fast/Slow controls visible.

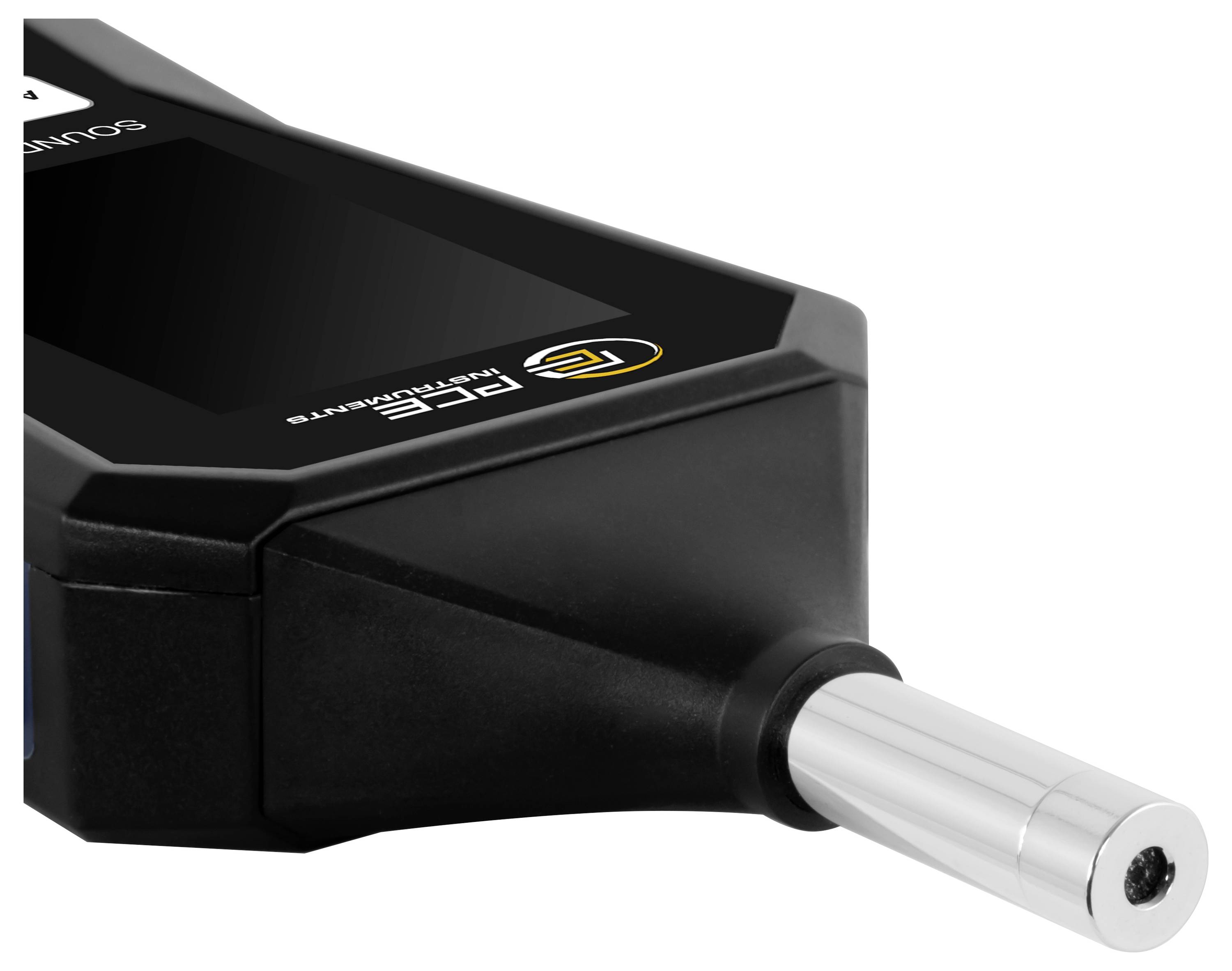

Close-up of a black electronic device with a silver cylindrical probe or connector extending from one end.

Black digital sound level meter with display controls, labeled 'SOUND LEVEL METER' and 'PCE-322', shown in close-up on a white background.

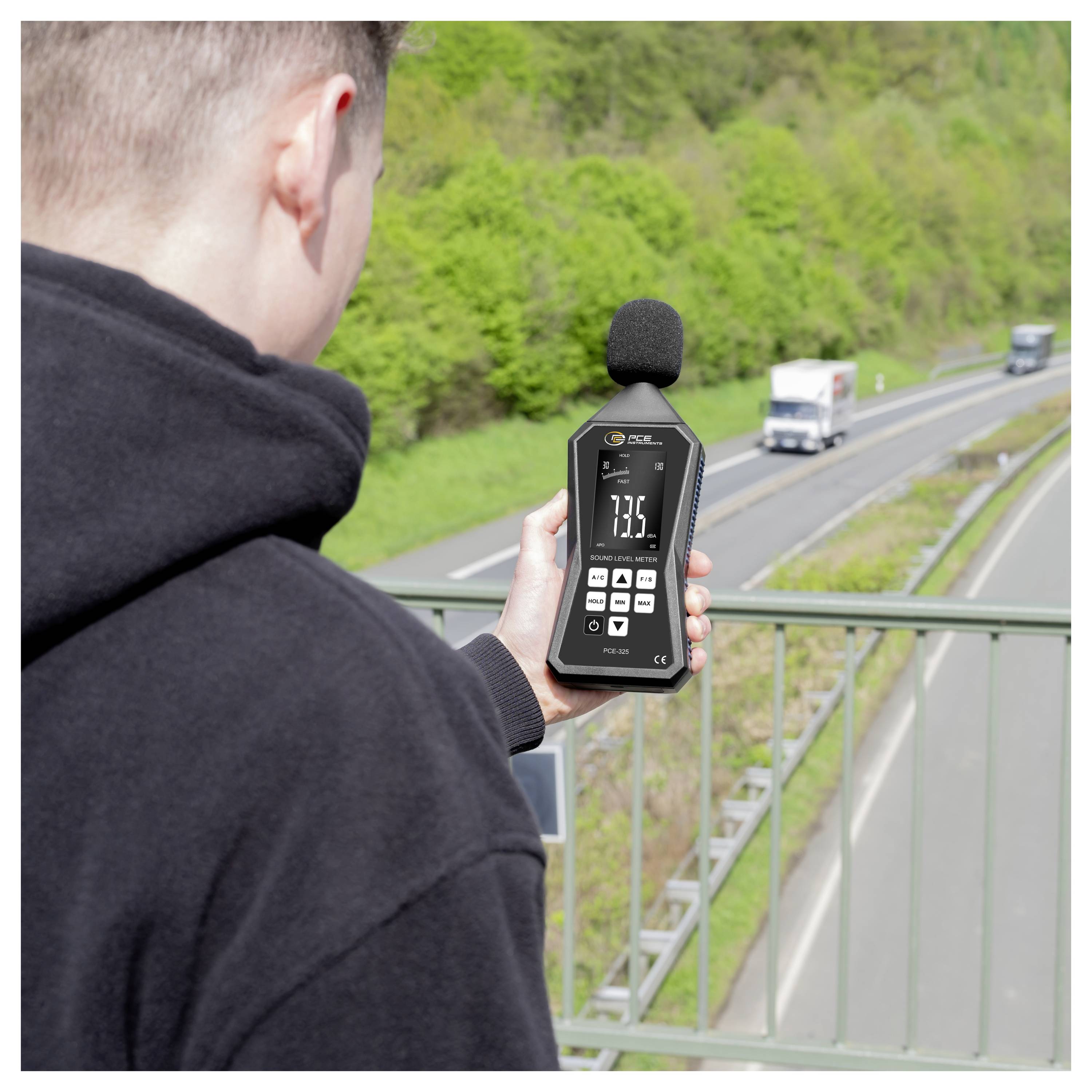

Person using a sound level meter to measure traffic noise beside a highway, with trucks passing in the background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-325

Measuring range of 30 ... 130 dB
Auto and manual range mode for selection
MEASUREMENT FUNCTIONS: HOLD, MIN, MAX.
Time rating F and S.
Frequency weighting A and C.
Auto switch-off
LCD 2.8"
Data update 500 ms
LCD 2.8"

Technical specifications

Sound level
Measuring range 30 dB ... 90 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (for reference conditions of 94 dB and 1 kHz)
Sound level
Measuring range 50 dB ... 110 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (for reference conditions of 94 dB and 1 kHz)
Sound level
Measuring range 70 dB ... 130 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (for reference conditions of 94 dB and 1 kHz)
General Technical Data
MEASUREMENT FUNCTIONS MIN, MAX, HOLD
Time evaluation fast (125 ms), slow (1 s)
Frequency 31.5 ... 8000 Hz
Frequency weighting A, C
Display type LCD
Display update rate 500 mS
Microphone type Electret capacitor
Interface Micro-USB
Standard(s) IEC 61672-1 (Class II)
Automatically switches off approx. 3 min.
Automatic switch-off deactivated Yes
Menu language English (US)
Protection class (device) IP52
Power supply 5V/DC
Weighs 307 g.
Dimensions (L x W x H) 248 x 90 x 35 mm
Operating conditions -10 ... 50 °C , 0 ... 80 % r.F.
Storage conditions -20 ... 50 °C , 0 ... 80 % r.F.
Capacity 2500 mAh

Product type: Sound level meter

Reading type: SPL

SPL resolution: 0.1 dB

dB (A) SPL reading range (max.): 90 dB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 248 x 90 x 35 mm

Display: LCD

Max. frequency: 8000 Hz

Min. frequency: 31.5 Hz

Frequency range: 31.5 Hz - 8000 Hz

dB (A) accuracy: 1.5 dB

dB (C) accuracy: 1.5 dB

Weight: 307 g

dB SPL (A) reading range: 30 - 90 dB

dB (A) SPL reading range (min.): 30 dB

dB (C) SPL reading range (max.): 70 - 130 dB

dB (C) SPL reading range (max.): 130 dB

dB SPL (C) reading range (min.): 70 dB

Width: 90 mm

Height: 35 mm

Length: 248 mm

Interfaces: Micro USB

Documents & Downloads

Datasheet

Datasheet 3192911 PCE Instruments Sound level meter PCE-325 30 - 90 dB 31.5 Hz - 8000 Hz Micro USB

User & Safety Instructions

User & Safety Instructions 3192911 PCE Instruments Sound level meter PCE-325 30 - 90 dB 31.5 Hz - 8000 Hz Micro USB

Description

Our sound level meter records and visualizes sound levels in the range from 30 to 130 dB. It offers three manual measuring ranges and an automatic measuring range mode. When powered on, the automatic mode is enabled by default with a range from 30 to 130 dB, while the manual ranges are 30 to 90 dB, 50 to 110 dB and 70 to 130 dB.

The user can select between the frequency assessments A or C on the sound level meter and the time assessments "fast" and "slow" by pressing a button. The "Fast" mode is used to measure short sound pulses or peak levels, while "Slow" mode is suitable for general sound level measurements. The sound level meter is charged via the micro-USB interface and is delivered in a practical case for transport.

In addition to the basic functions such as MIN, MAX and HOLD, the sound level meter switches off automatically after about 3 minutes of inactivity in order to extend the battery life. The "AUTO Power Off" function can also be deactivated.

This text is machine translated.
