PCE Instruments Sound level meter PCE-MSL 1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

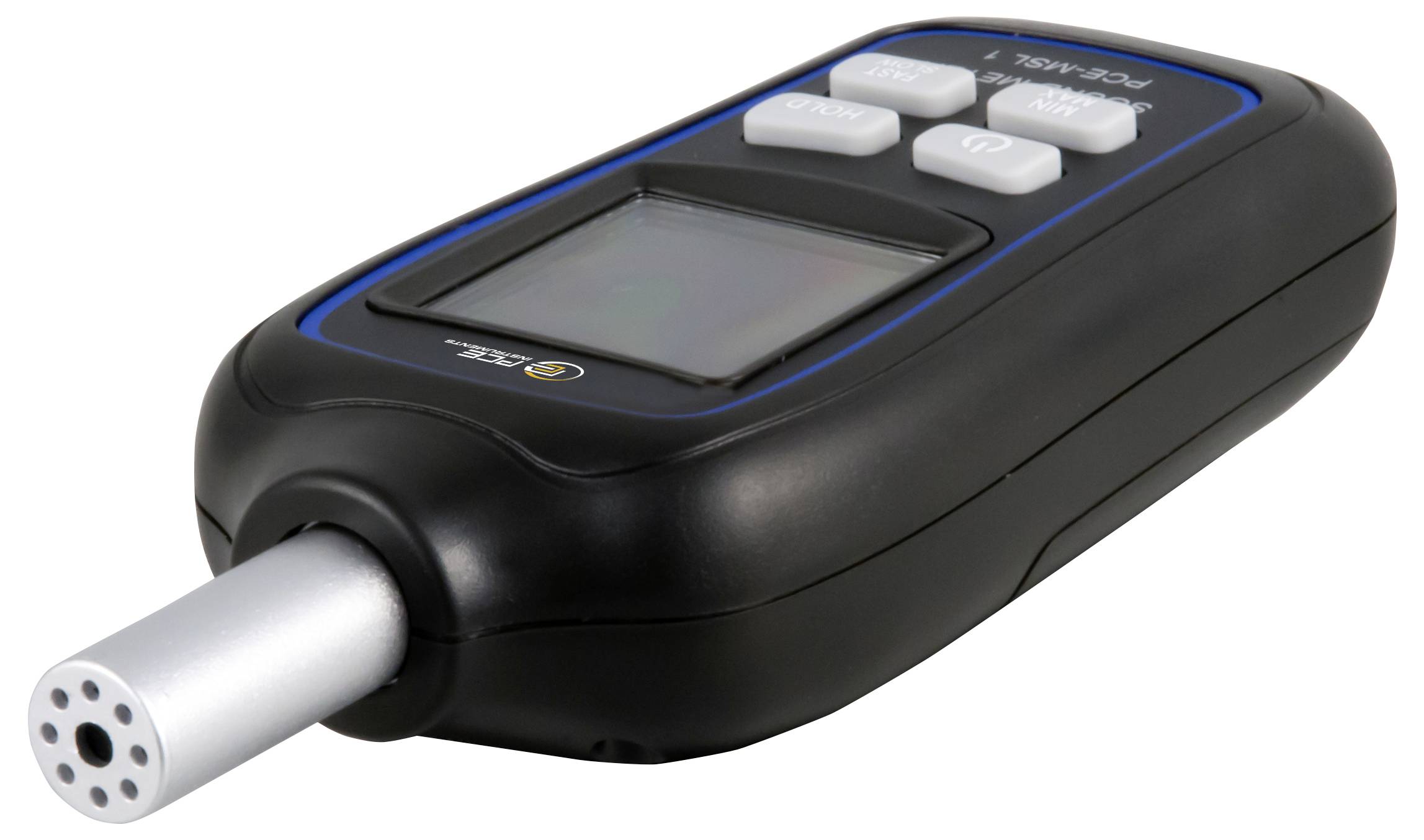

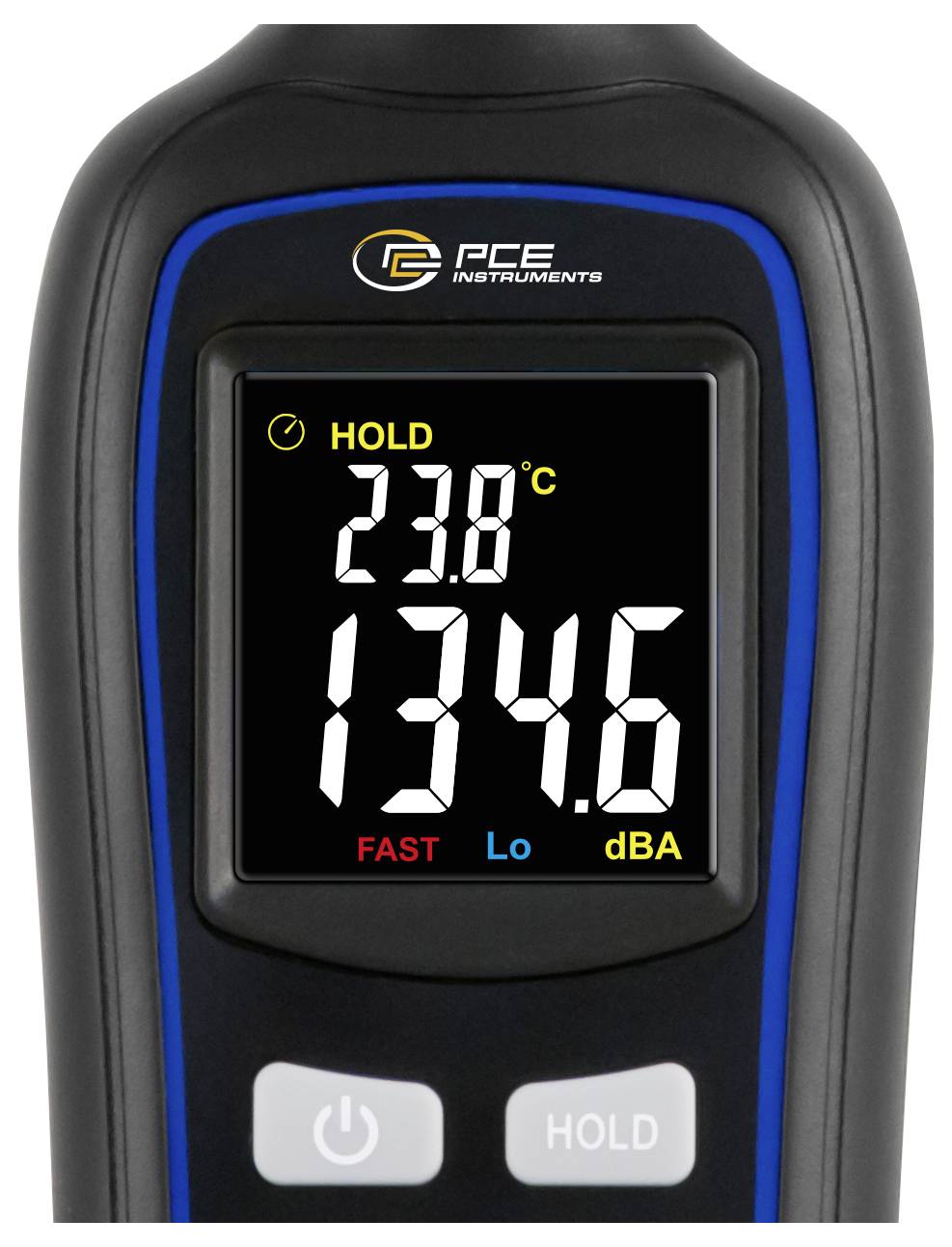

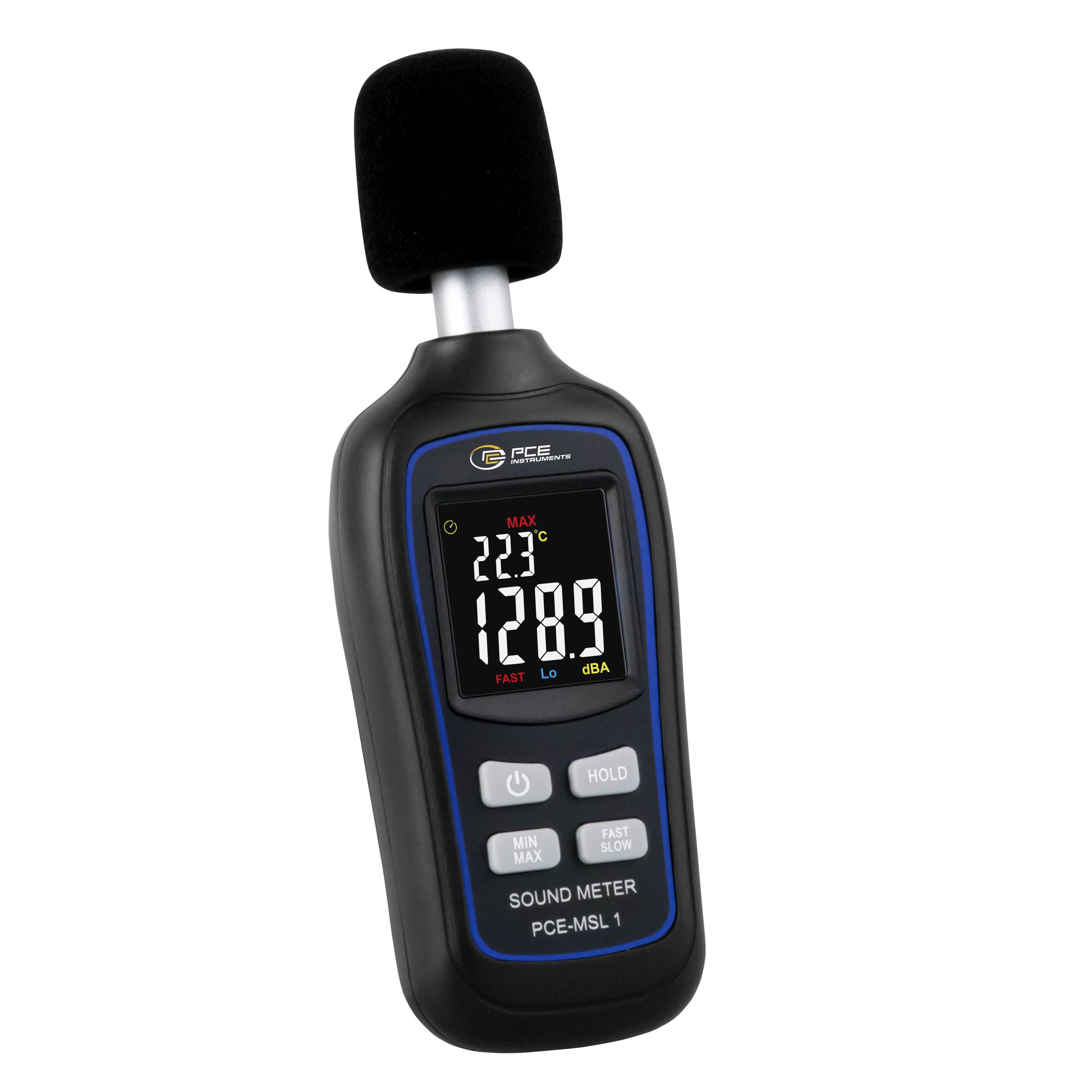

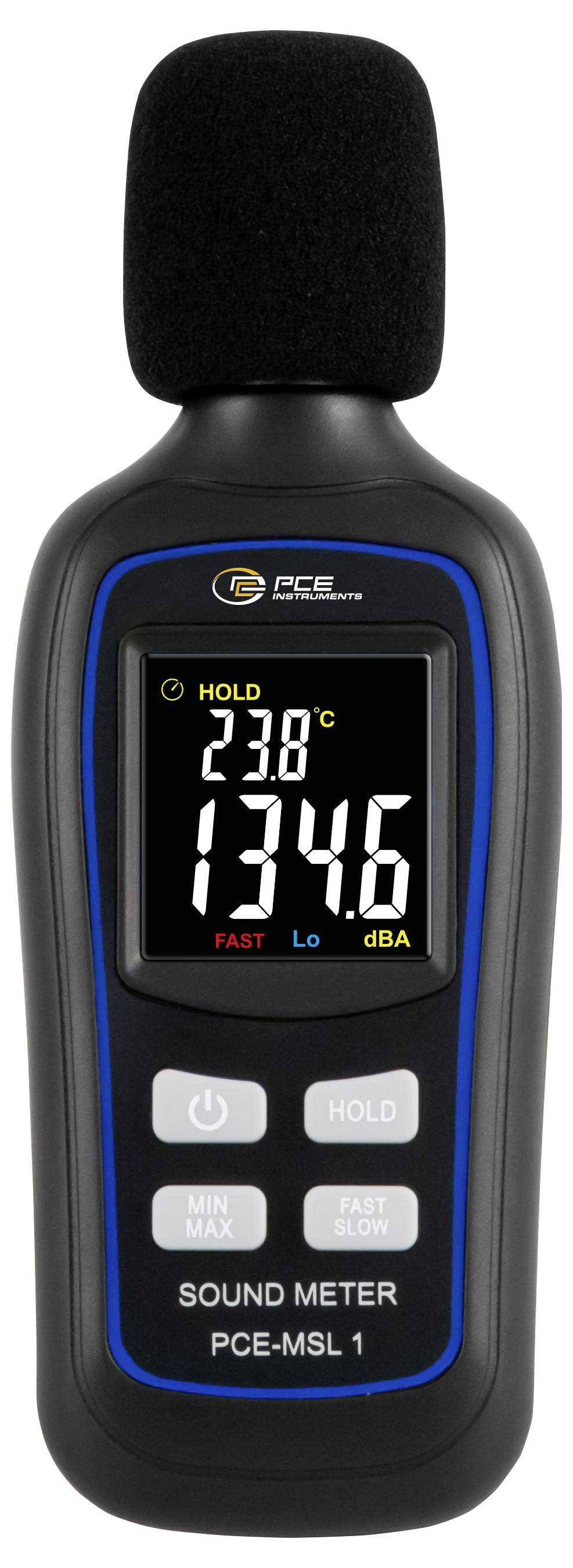

Sound level meter PCE-MSL 1
- Extreme value measurement
- High accuracy
- Quick volume measurements
- Backlit color LCD
- Simultaneous temperature measurement
- HOLD function
- Wide frequency range
- A frequency rating
- Robust ABS plastic housing
Technical specifications
- Measuring range 35...135 dB Dynamic range: 50 dB Frequency range 31.5 Hz ... 8 kHz Accuracy ±2 dB Frequency 31.5 Hz...8 kHz Frequency Rating A. Time rating fast: 125 ms slow: 1 sec. Microphone type 1/2 " Electret condenser microphone Visual alarm limits > 100 dB: Display shows "HI"< 100 dB: Display shows "LO " Temperature accuracy ±1.5 °C. Resolution 0.1 Data update 300 ms Battery life< 60 h. Auto power off after 15 minutes of inactivity (can be disabled) Power supply 3 x 1.5 AAA batteries Operating conditions 0....+60 °C, 10 ... 90% rel. Humidity storage conditions 0 ... +60 °C, 10 ... 70% rel. Humidity dimensions 144 x 56 x 30.5 mm Weight 73 g Standard IEC 61672-1 class II.
- Product type
Sound level meter
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452520 PCE Instruments Sound level meter PCE-MSL 1
User & Safety Instructions
User & Safety Instructions 2452520 PCE Instruments Sound level meter PCE-MSL 1
Description
Sound level meter PCE-MSL 1 Sound level meter with A frequency evaluation / simultaneous temperature measurement / 0.1 dB resolution / HOLD function / extreme value measurement / large frequency range / backlit color LCD The sound level meter PCE-MSL 1 is a simple sound meter. The PCE-MSL 1 sound meter is used to quickly determine the ambient volume. In addition to the volume measurement, the sound level meter also has the option of determining the ambient temperature. The measurement of the background noise becomes important in today's time in almost every situation. For this purpose, it is helpful to use a simple sound level meter, which gives the user a first idea about the possible noise load. The LC display gives clear results about the measurements made by the sound level meter. A background lighting was also integrated in the display. The sound level meter is ideally suited for measurements that must be free of any place.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x sound level meter PCE-MSL 1
- 1 x wind noise suppressor
- 3 x 1.5 V AAA batteries
- 1x user manual
