PCE Instruments Sound level meter PCE-SLT
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

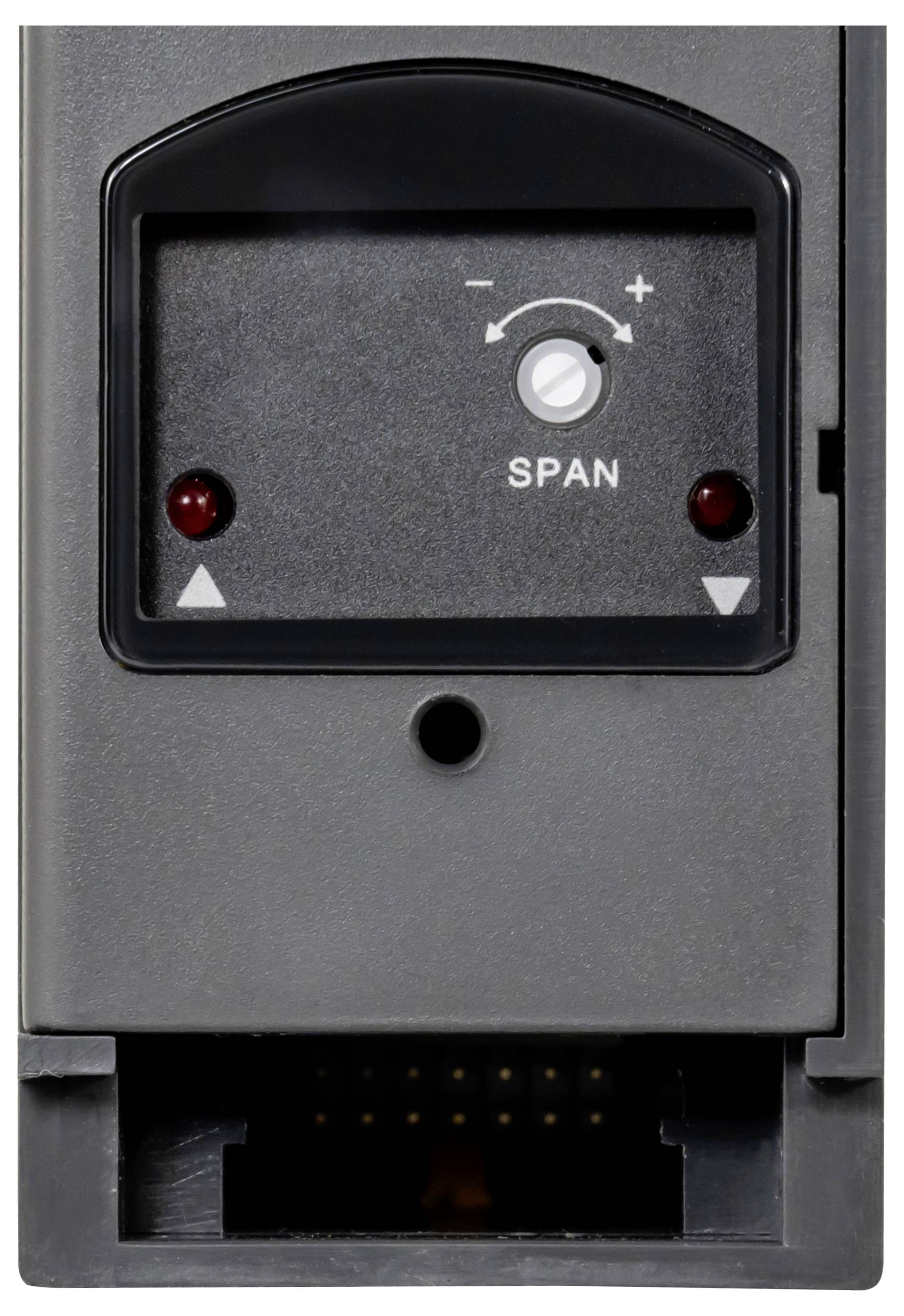

- Audio sensor Measuring range 30 ... 130 dB in three ranges Resolution 0.1 dB Accuracy ±1.5 dB Evaluation A supply via transmitter Cable length: 1.5 m Wall bracket for screwing on (included in delivery) Ambient conditions max. 85 % relative humidity / 0 ... +50 °C Microphone 1/2 " Precision-Electret-Microphone Standard IEC 61672 class II transmitter Housing ABS-plastic Supply 90 … 260 ACV (max. 1.5 A) Calibration can be set via grub screw Output 4 ... 20 mA protection class IP 54 Ambient conditions max. 85 % relative humidity / 0 ... +50 °C Digital display Input signal from transmitter 4 – 20 mA Display -1999 ... 9999 (1 ... 3 decimal places, depending on the measured value/ can be selected by the user) Programming data (decimal place, limit value...) are stored in the device 3-point control output (Com, NO, NC) Alarm output relay output: 5 A / 240 VAC Supply 90 ... 260 ACV / 50 ... 60 Hz Dimensions/panel cut-out according to DIN 92 (+0.8) mm x 45 (+0.5) mm Weight approx. 250 g Ambient conditions max. 85 % relative humidity / 0 ... +50 °C Protection class IP 65
- Product type
Sound level meter
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452646 PCE Instruments Sound level meter PCE-SLT
User & Safety Instructions
User & Safety Instructions 2452646 PCE Instruments Sound level meter PCE-SLT
Description

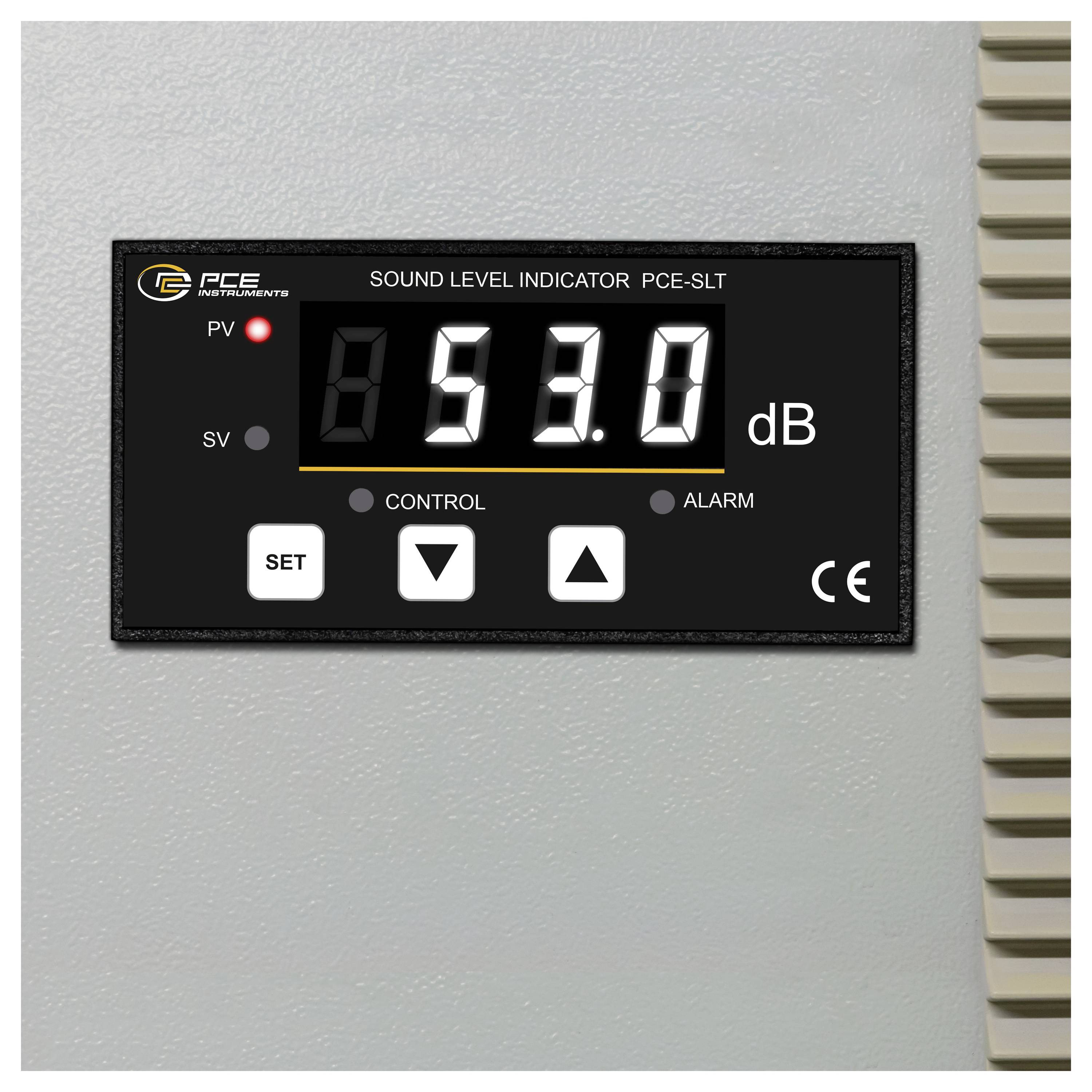

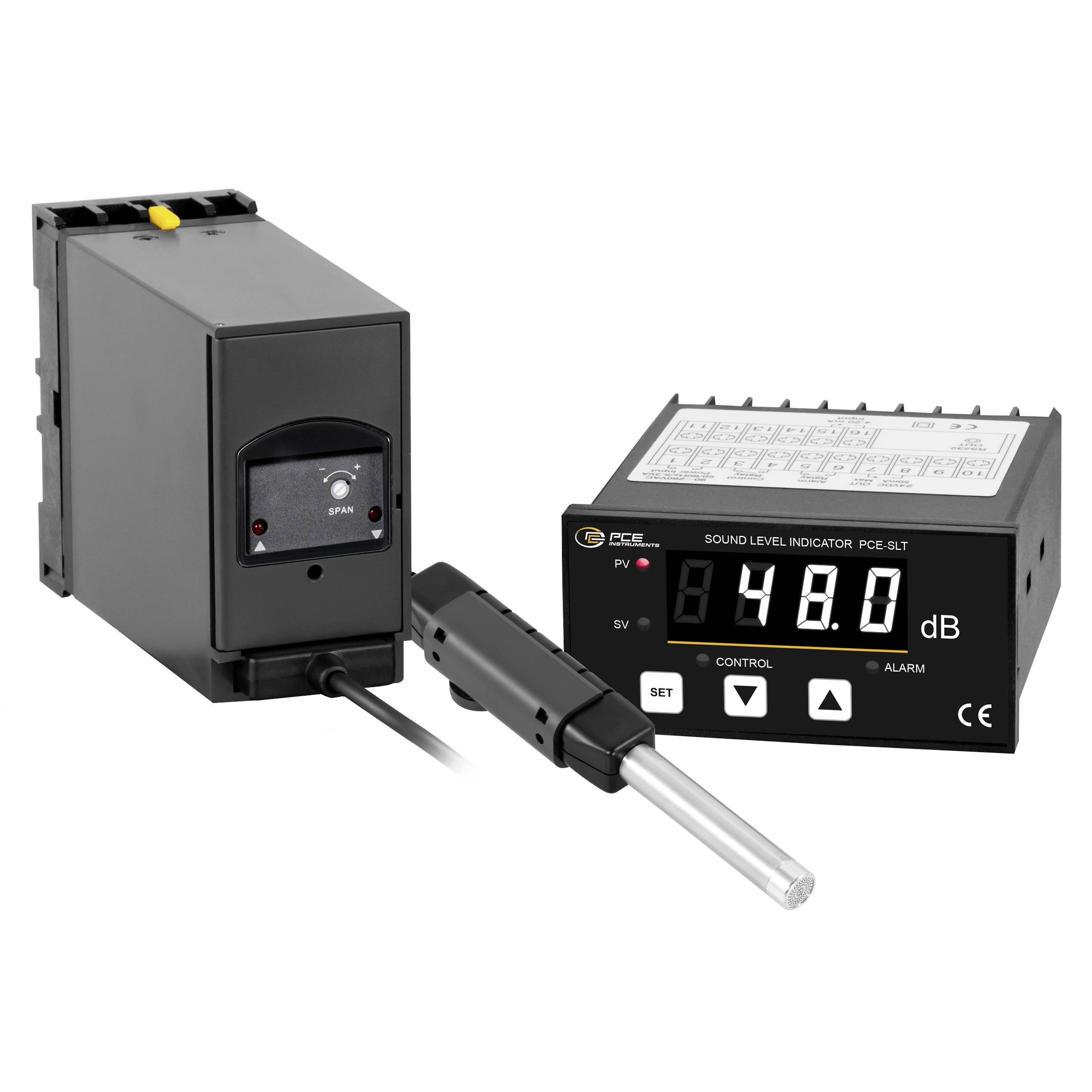

SLT noise measuring device for fixed installation with relay output and control output The noise warning system consists of a measuring microphone with handle and a wall bracket on 1.5 m cable, a noise transmitter and a digital display. The main area of application of this noise warning system is the continuous noise measurement and noise monitoring of factory halls, production rooms and at major events (discotheques, folk festivals, karting tracks ...). The digital display has a relay output for controlling alarm horns or flashing lights for visual or acoustic warning and a control output. The limit value for this alarm output can be programd on the display. The analogue output signal can also be used to control window flaps ... or the transmitter signals can be stored, evaluated and documented on a logger. The noise warning device is very easy to connect and can be operated via 240 V mains power. The digital display for the noise warning display is delivered preconfigured on the noise transmitter and can be used immediately.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x noise meter SLT

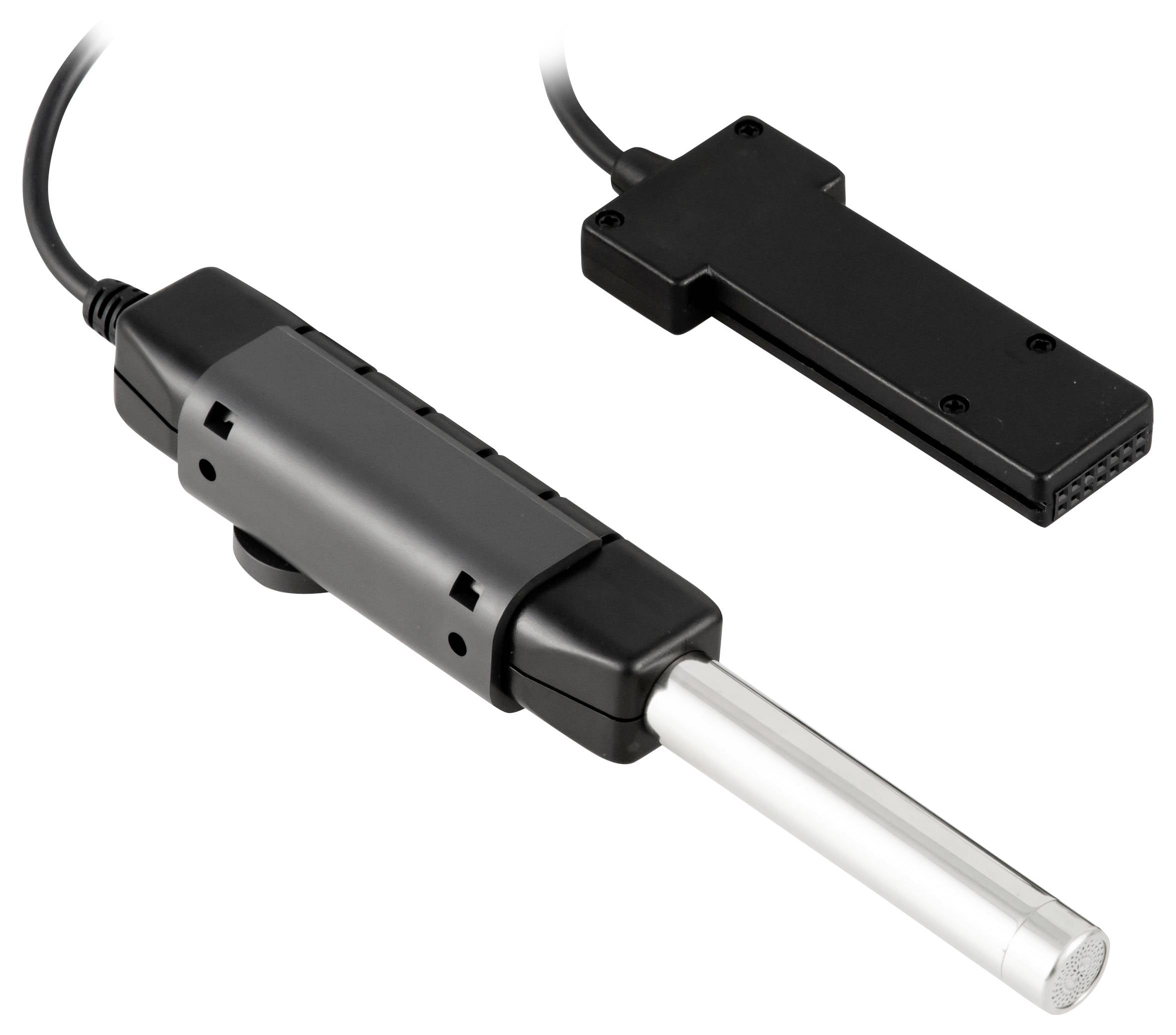

- 1 x noise sensor at 1.5 m cable

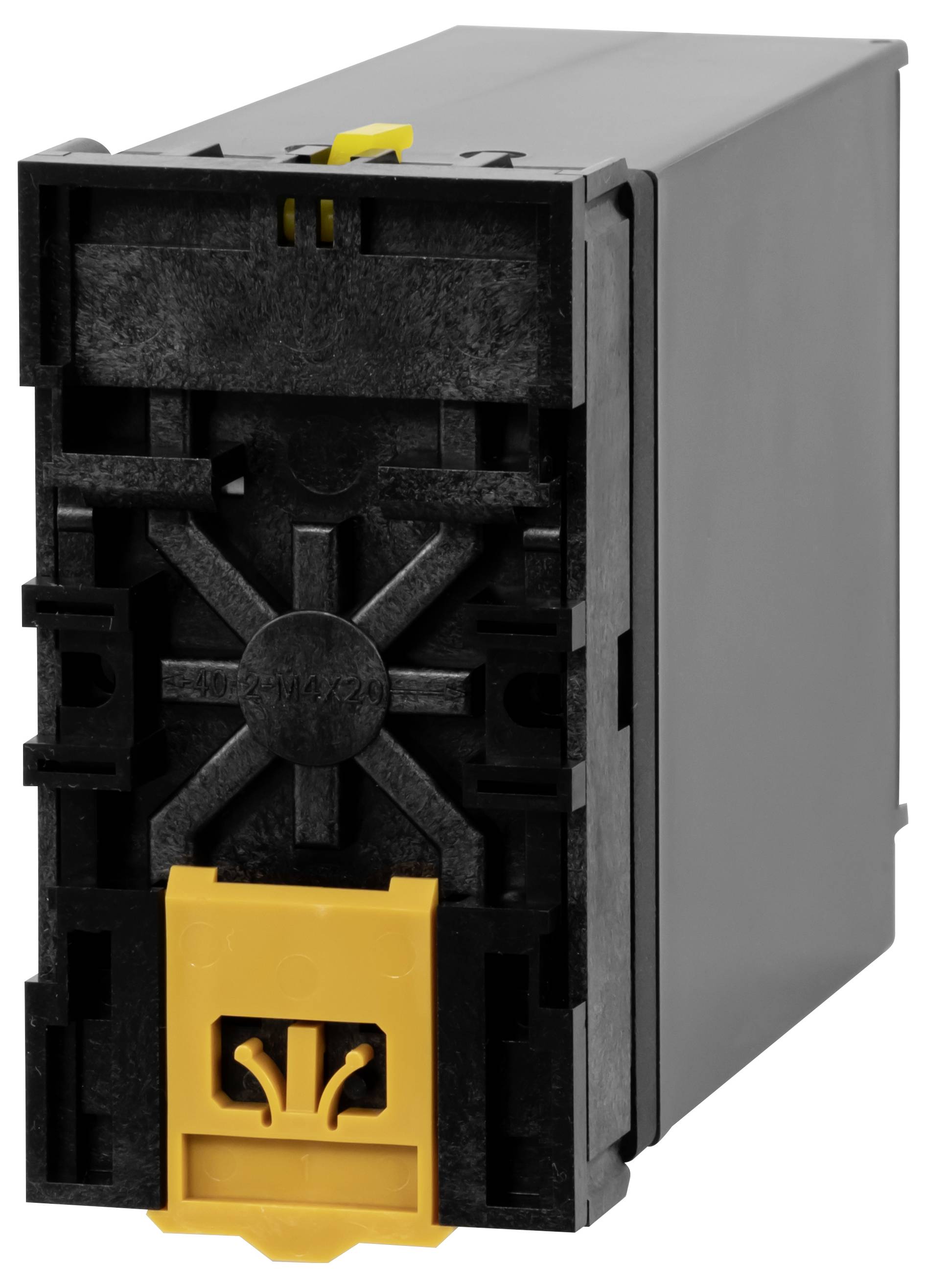

- 1 x noise transmitter
- 1 x digital display device
- 1 x sensor holder for screwing on
- 1x user manual
