PCE Instruments Sound level meter PCE-SLT-TRM
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

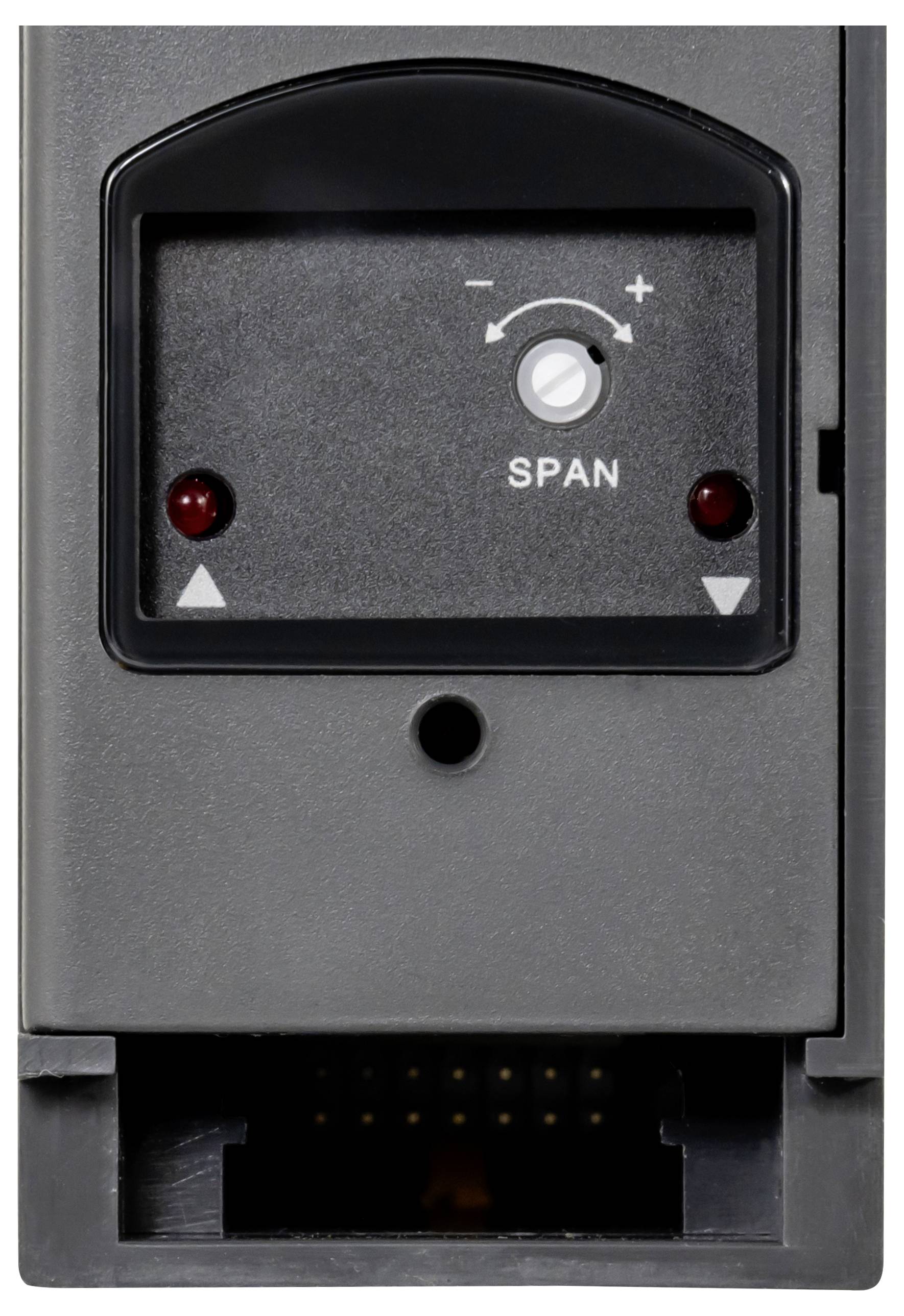

- Audio sensor Reading range 30 ... 130 dB in three ranges I. 30...80 dB(A) II. 50...100 dB(A) III. 80...130 dB(A) Resolution 0.1 dB Accuracy ±1.5 dB Rating A. Supply via transmitter Cable length: 1.5 m Wall bracket for screwing on (included in delivery) Ambient conditions max. 85 % relative humidity / 0 ... +50 °C Microphone 1/2 " Precision-Electret-Microphone Standard IEC 61672 class II transmitter Housing ABS-plastic Supply 90 … 260 ACV (max. 1.5 A) Calibration can be set via grub screw Output 4 ... 20 mA Protection Class IP 54 . Ambient conditions max. 85 % relative humidity / 0 ... +50 °C
- Product type
Sound level meter
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452647 PCE Instruments Sound level meter PCE-SLT-TRM
User & Safety Instructions
User & Safety Instructions 2452647 PCE Instruments Sound level meter PCE-SLT-TRM
Description
Sound warning system / Sound warning device for fixed installation with analogue output 4 ... 20 mA the sound warning system consists of a measuring microphone with handle and a wall bracket on 1.5 m cable, a sound transmitter. The main area of application of this sound warning system is the continuous sound measurement and sound monitoring of factory halls, production rooms and at large events (discotheques, folk festivals, cart tracks...). The analogue output signal can also be used to control window flaps ... or the transmitter signals can be stored, evaluated and documented on a logger. The sound warning device is very easy to connect and can be operated via 240 V mains current.
This text is machine translated.
This text is machine translated.
Scope of delivery

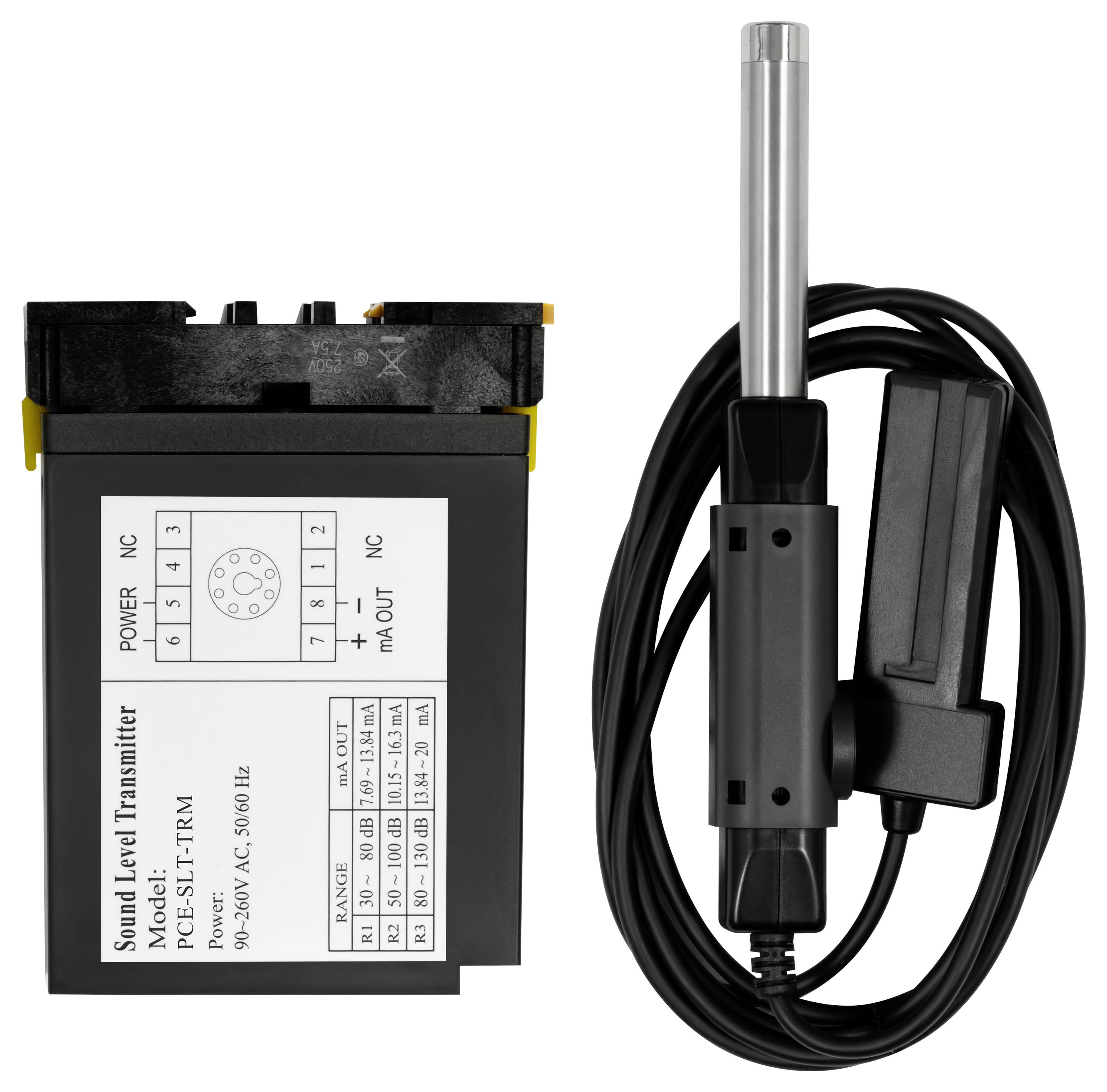

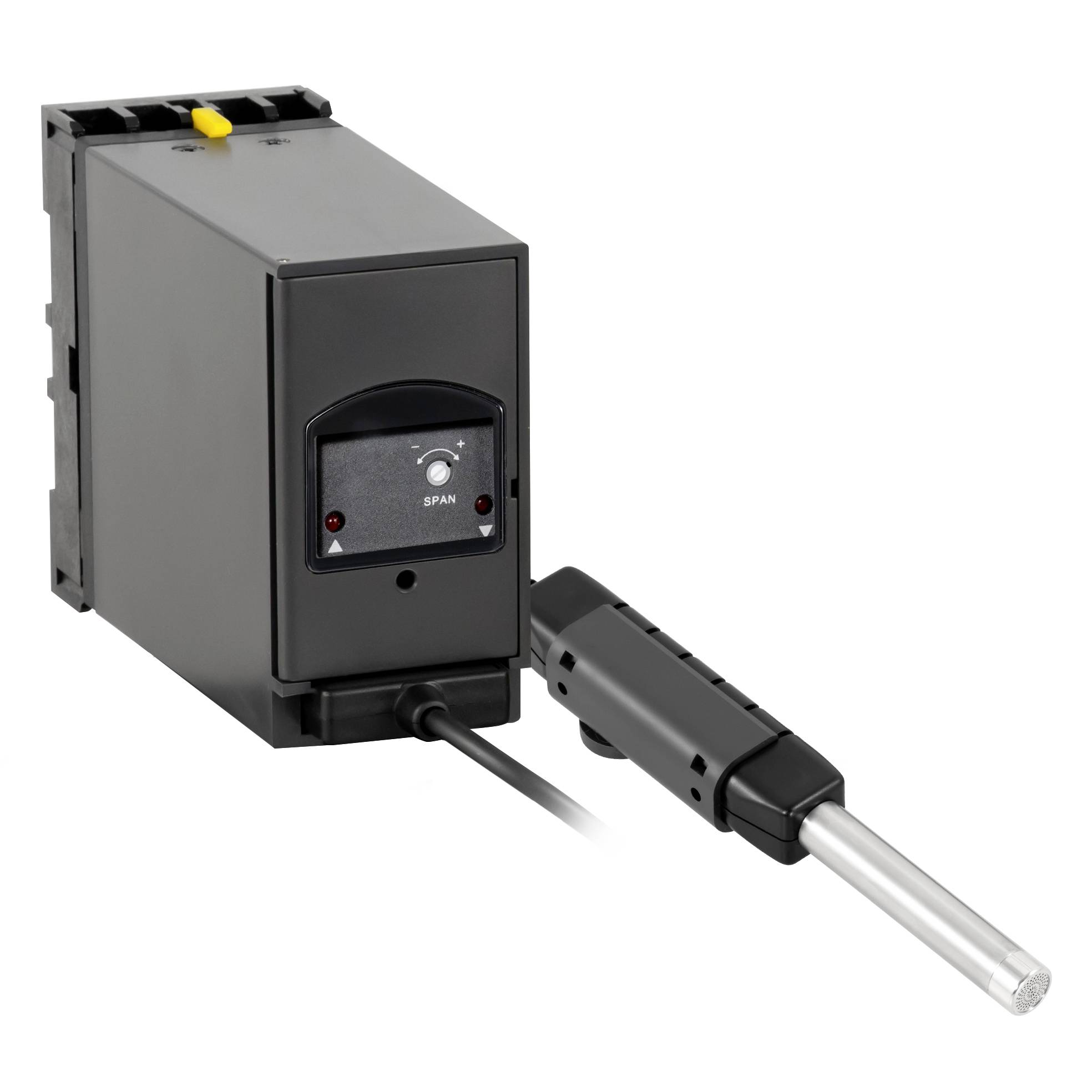

- 1 x sound level meter PCE-SLT-TRM

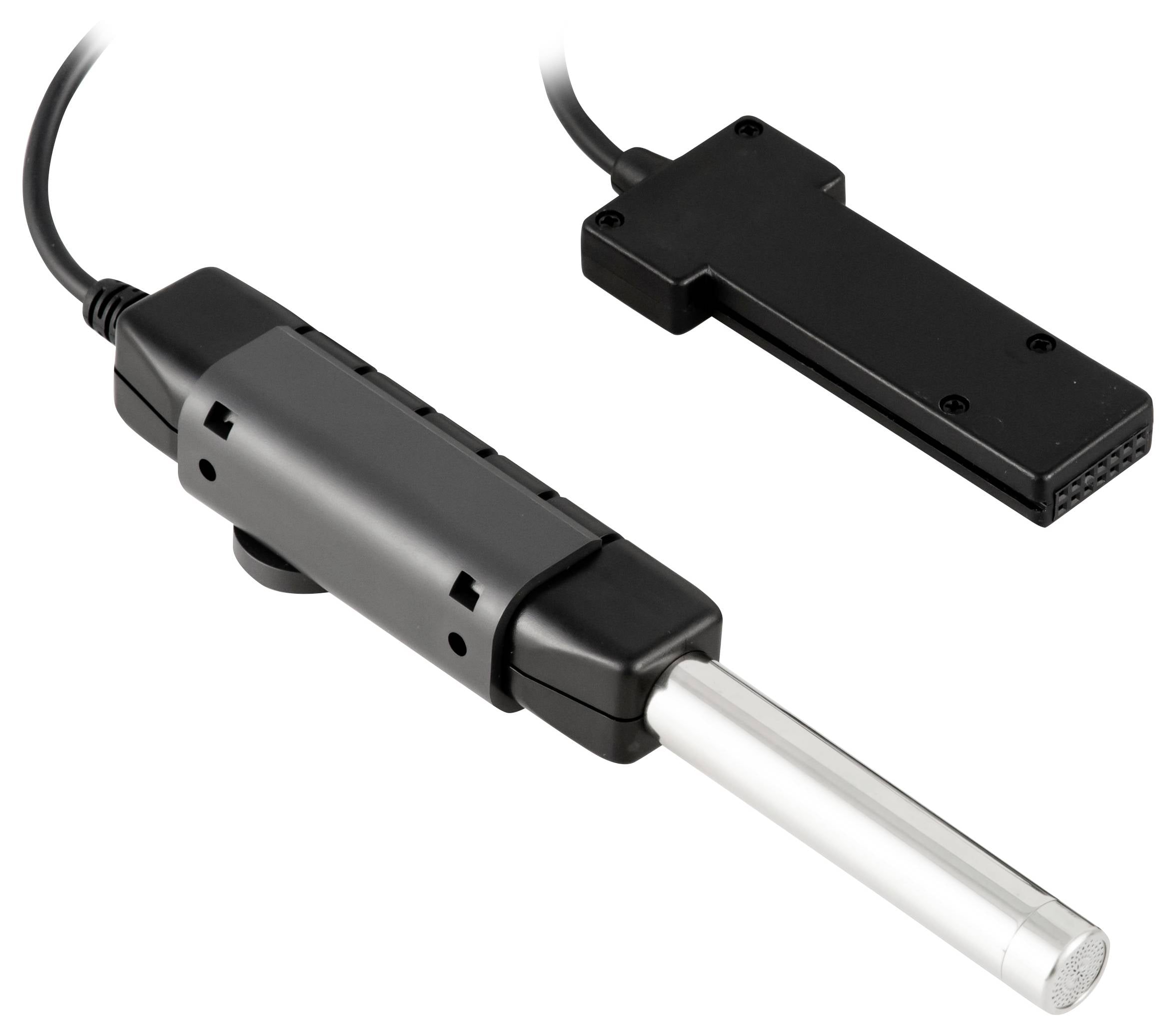

- 1 x sound sensor at 1.5 m cable
- 1 x sound transmitter
- 1 x sensor holder for screwing on
- 1x user manual
