PCE Instruments Sound level meter SPL monitor (DIN 15905-5) , Data logger PCE-MND 10 70 - 140 dB 31.5 Hz - 8 kHz Serial
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

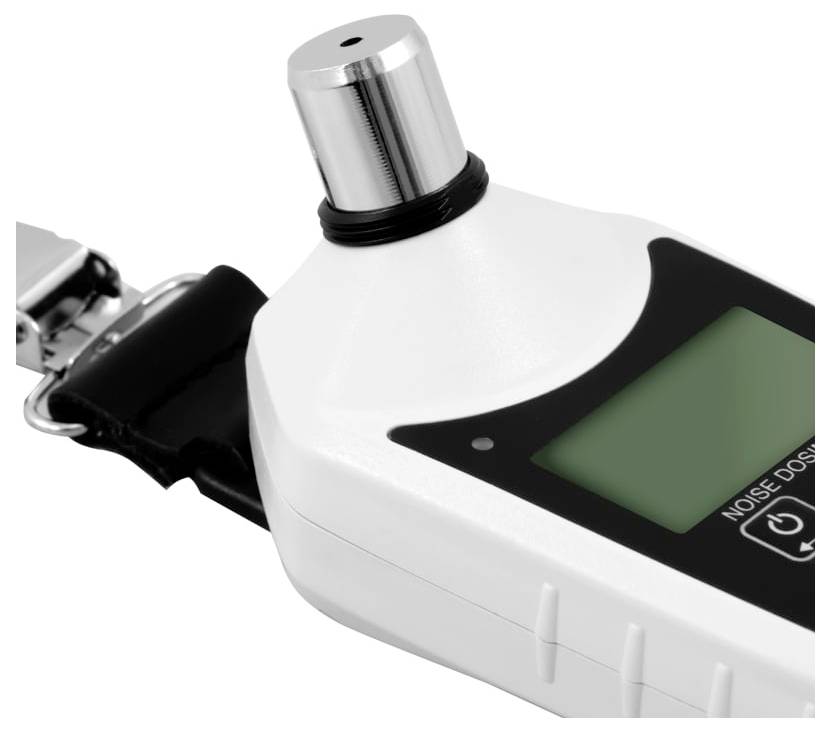

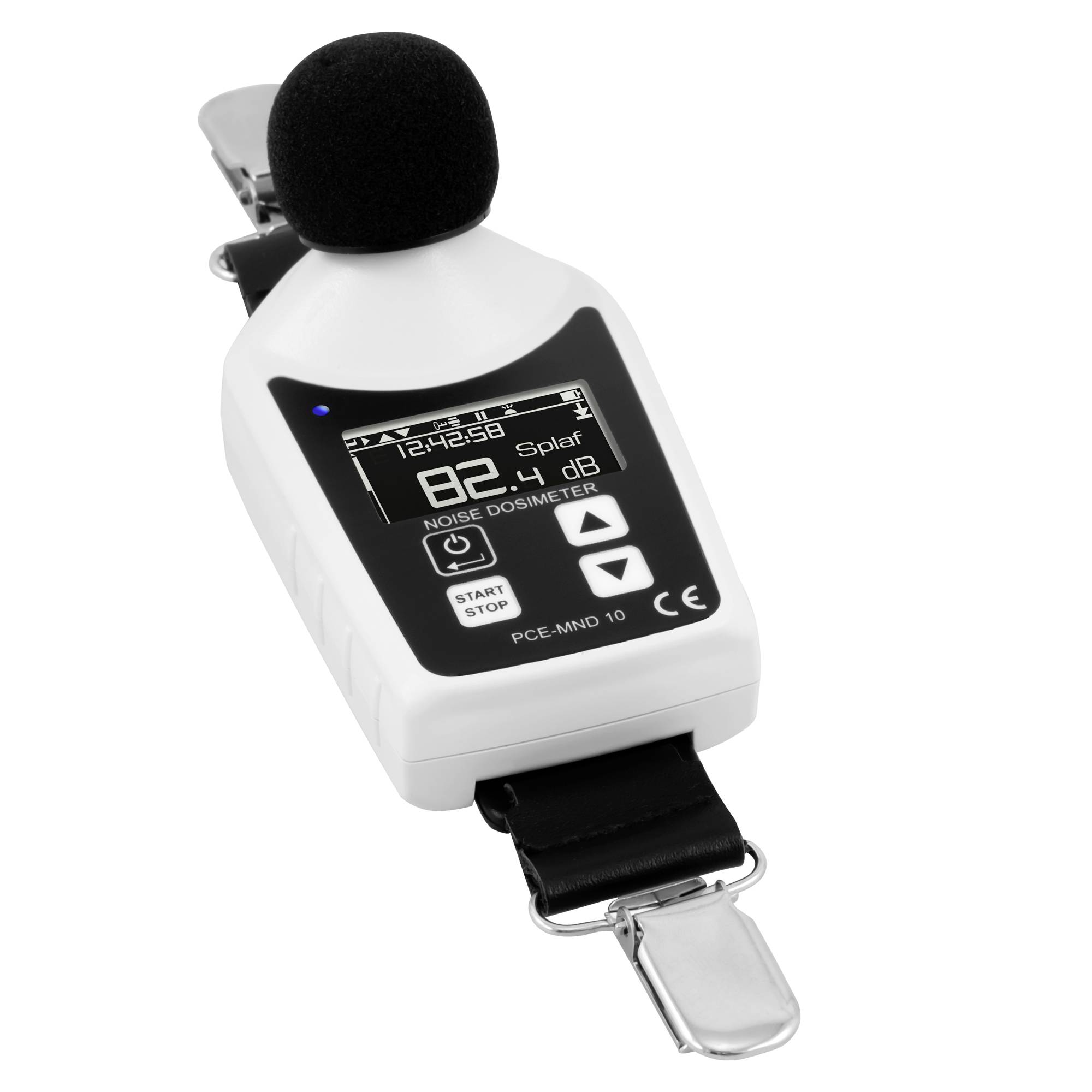

Sound dosimeter PCE-MND 10
- Frequency evaluation A, C and Z - Battery runtime of >15 hours - Software for setting parameters - Measuring range 70 ... 140 dB - IEC 61252:2002, ANSI S1.25-1991 - optionally with ISO calibration certificate
Technical specifications
- Measurement range 70 … 140 dB (A, C) 90 … 140 dB (Z)Measuring range (peak value) 103 … 143 dB PEAKResolution 0.1 dBAccuracy class 2Frequency: 31.5 Hz - 8 kHzFrequency assessments A, C and Z.Time evaluation fast, slow, impulseAdjustable level increase 3, 4, 5, 6 dBSetting range of the threshold 70 … 90 dBResolution of the threshold value 1 dBSetting range of the criterion level 70 … 90 dBCriterion level resolution 1 dBDisplay at too loud ambient condition >115 dBMemory 30 measurement cycles with a total of 6101 measurement pointsTimer switch 16 timers for automatic data recording and 99 timersWarm-up time 10 seconds after switching onMicrophone 1/2 inch electret capacitorDisplay 128 x 64 pixel LC displayFor applications according to standard IEC 61252:2002, ANSI S1.25-1991Number of virtual dosimeters 3Dosimeter standards OSHA-80, OSHA-90, MSHA-80, MSHA-90, DOD, ACGIH, ISO-85, ISO-90, NR-15, NHO-01, In addition, up to 9 individual standards can be stored.Measurement parameters for all virtual dosemeters CAN, PDOSE (PDOs), TWA (TWA), PTWA (PTwa), LAVG (Lavg), LEPd (Lepd), PLEPd (PLEpd), Overtime (Las>105 or Las >115), LEQ (Lceq, Lceq, Lzeq), SEL (LAE, LCE or LZE), SEpa2h (EA, EC, EZ), PEAK (PKC, PKC or PKZ), LEX8H (Lex8h), PLEX8H (PLex8h), EXPHrs (Exph), EXPsec (EXPS), NENAdditional measurement parameters MAX/MIN, L05, L10, L50, for the first virtual dosimeter L90 and L95 at a 20 ms interval and a difference of 0.1 dB, LAEQ05, LAEQ10, LAEQ50, LAEQ90, LAEQ95 at a 1 second interval and a difference of 0.1 dBInterface USB interface on the charging stationPower supply (rechargeable battery) 3.7 V, 470 mAh, lithium polymer rechargeable batteryPower supply (power supply) Primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.7 A, secondary: 9 V DC, 2 A.Operating time >15 hours at 23 °C.Operating conditions 0 … 50 °C (32 … 122 °F), 10 … 95 % RH, non-condensingStorage conditions -10 … +60 °C (14 … 140 °F), 10 … 75 % RH, non-condensingDimensions 84 x 49 x 55 mm / 3.3 x 1.9 x 2.2 inchWeight 77 g.
- Product type
Sound level meter
- Reading type
SPL
- SPL resolution
0.1 dB
- dB (A) SPL reading range (max.)
140 dB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 49 x 55 x 84 mm
- Display
LCD
- Max. frequency
8 kHz
- Min. frequency
31.5 Hz
- Frequency range
31.5 Hz - 8 kHz
- dB (A) accuracy
1.4 dB
- dB (C) accuracy
1.4 dB
- Weight
77 g
- dB SPL (A) reading range
70 - 140 dB
- dB (A) SPL reading range (min.)
70 dB
- dB (C) SPL reading range (max.)
103 - 140 dB
- dB (C) SPL reading range (max.)
140 dB
- dB SPL (C) reading range (min.)
103 dB
- Width
55 mm
- Height
84 mm
- Length
49 mm
- Features
SPL monitor (DIN 15905-5)
Data logger
- Interfaces
Serial interface
Documents & Downloads
Datasheet
Datasheet 2620678 PCE Instruments Sound level meter SPL monitor (DIN 15905-5) , Data logger PCE-MND 10 70 - 140 dB 31.5 Hz - 8 kHz Serial
User & Safety Instructions
User & Safety Instructions 2620678 PCE Instruments Sound level meter SPL monitor (DIN 15905-5) , Data logger PCE-MND 10 70 - 140 dB 31.5 Hz - 8 kHz Serial
Description

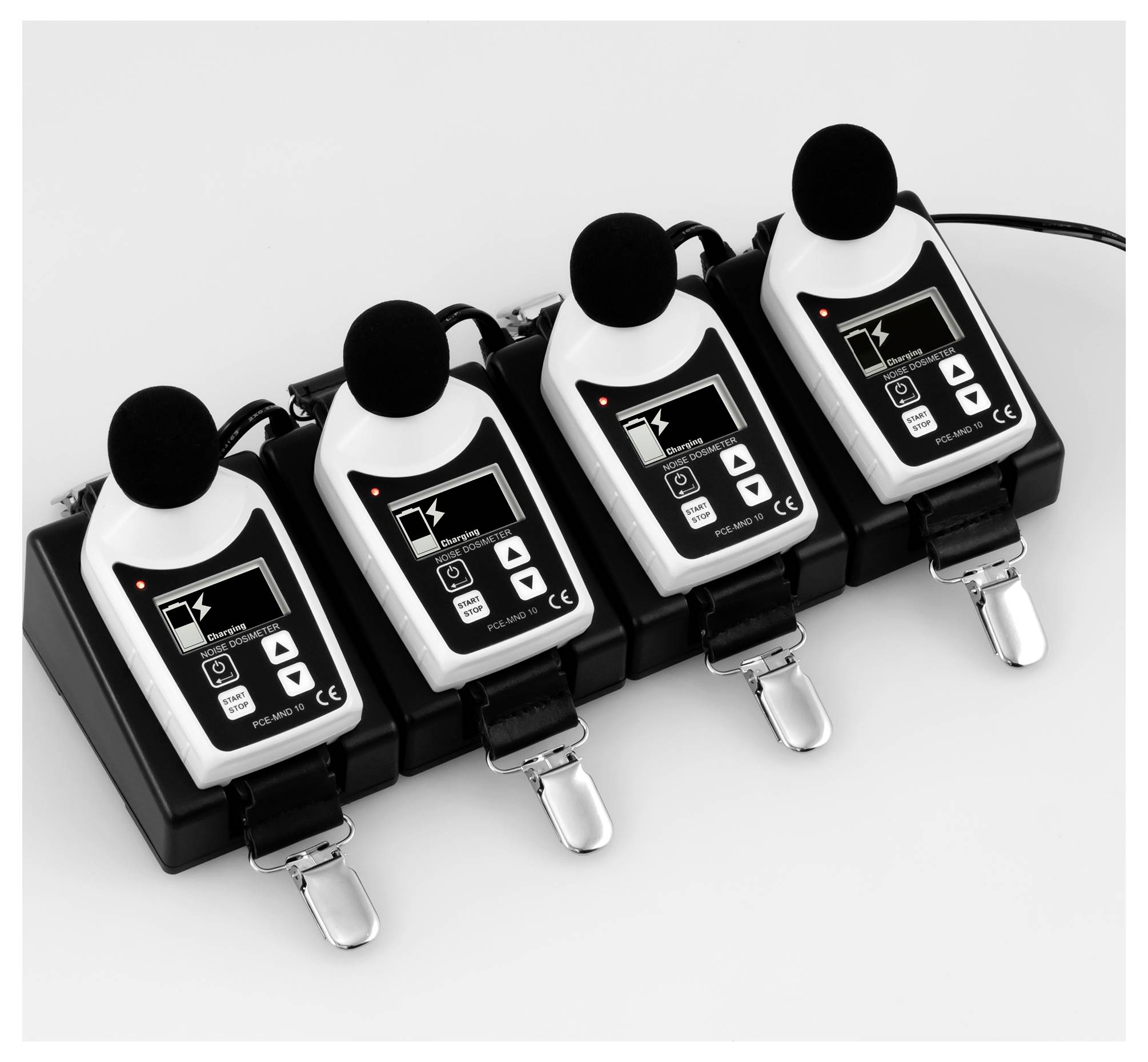

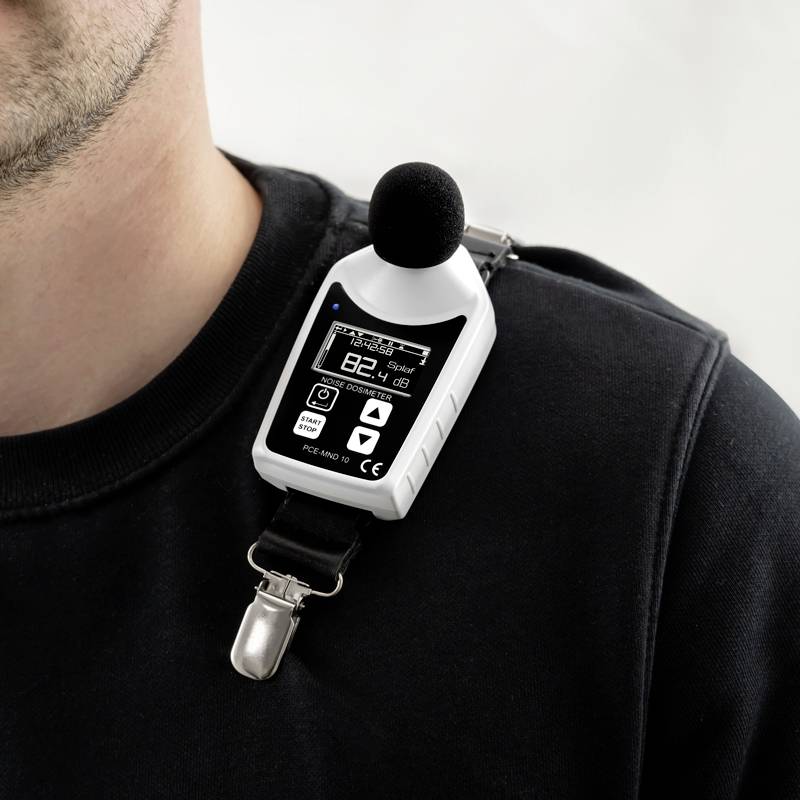

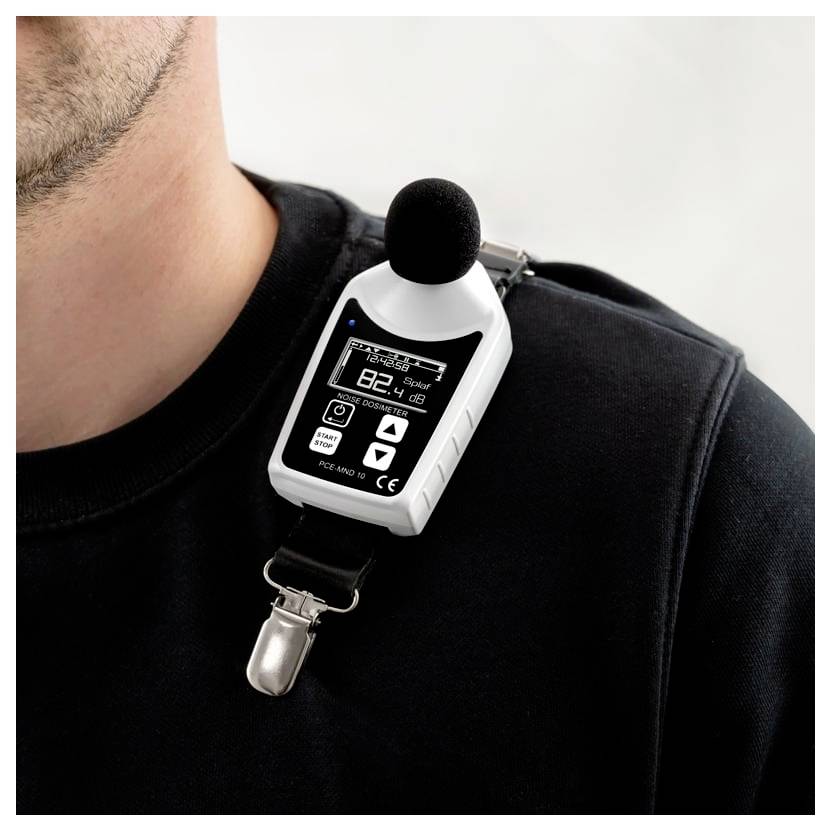

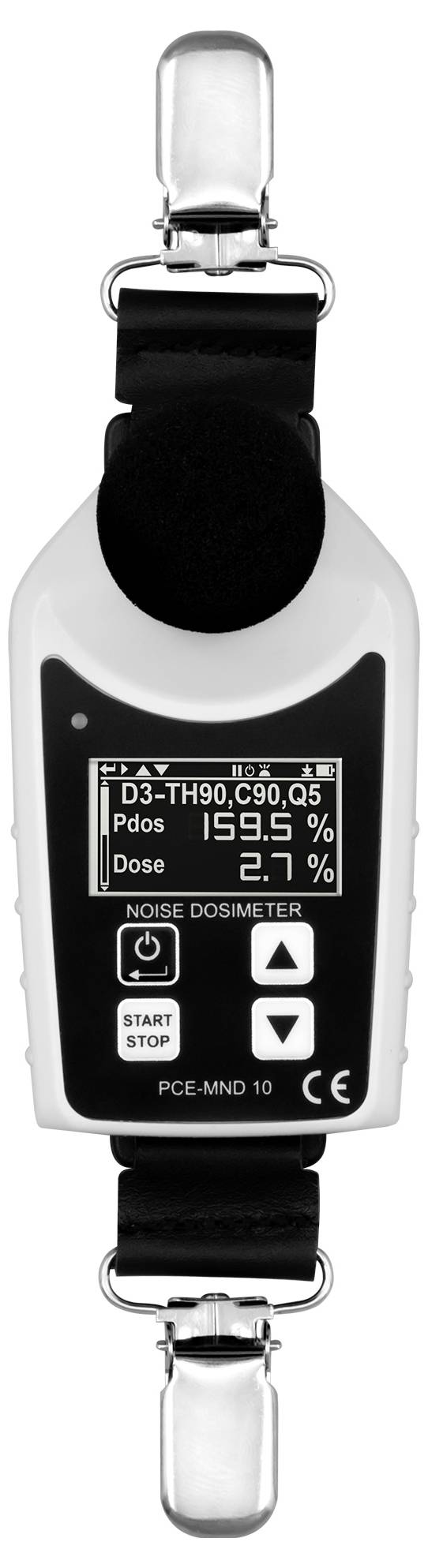

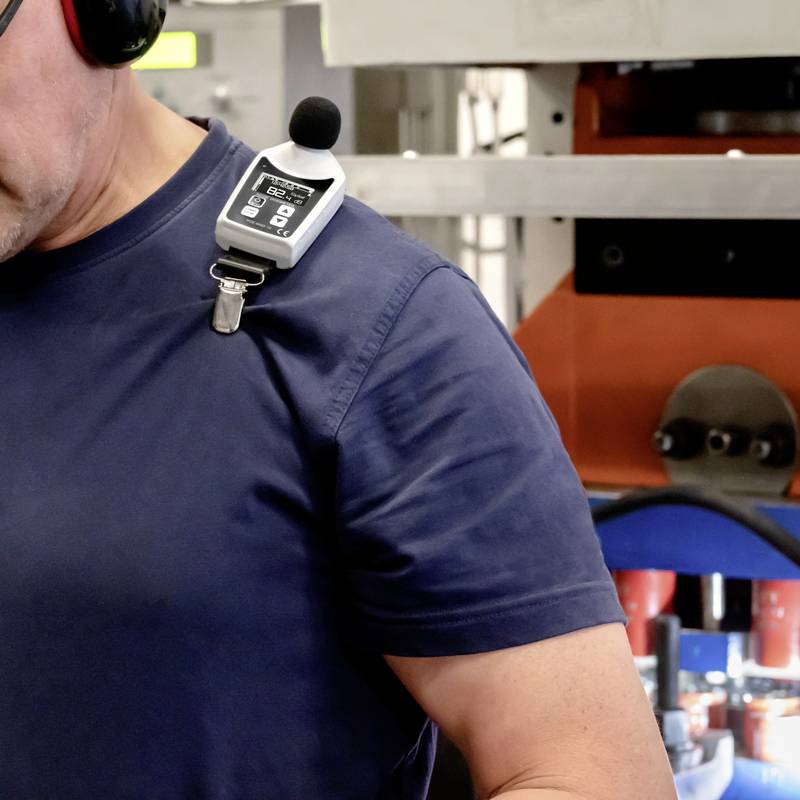

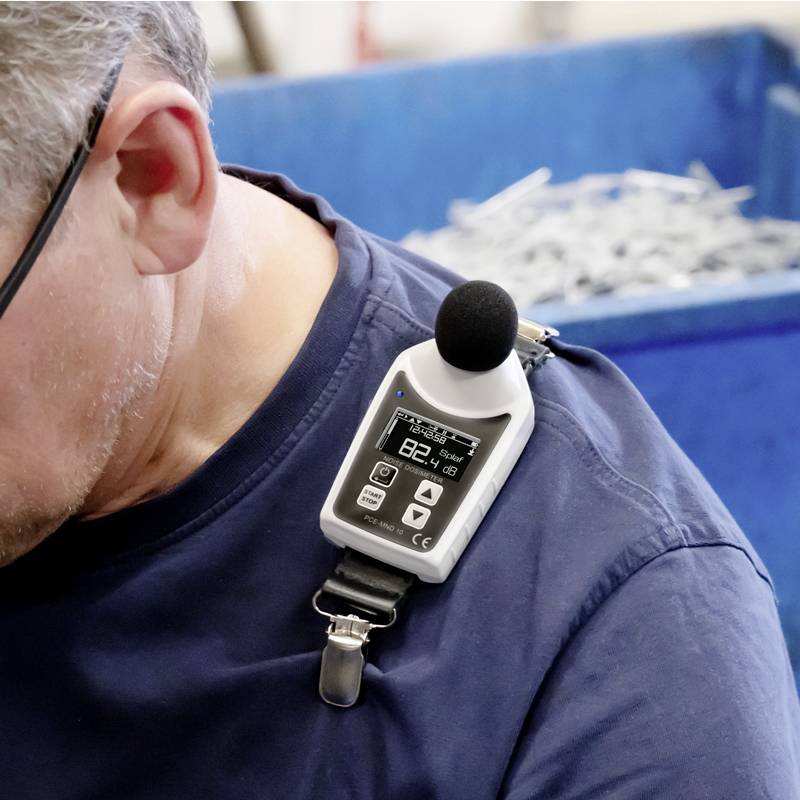

Industrial safety meter according to IEC 61252:2002 / Measuring range 70 ... 140 dB / alligator clips / for use in occupational safety / battery life >15 hours / USB interface / key lock / frequency rating A, C and Z / optionally with ISO calibration certificateThe occupational safety meter has been specially developed for measuring the noise exposure at workplaces and conforms to the IEC 61252:2002 standard. With a measuring range of 70 … 140 dB and a frequency evaluation of A, C and Z, the industrial safety meter is ideally suited for this purpose. The time evaluation for the safety measuring device can be selected between fast, slow and pulse. With the built-in 470 mAh rechargeable battery, the industrial safety meter has a runtime of >15 hours. Up to three virtual safety measuring instruments can be set in a safety device. This has the advantage that up to three measurement standards can be measured simultaneously. Up to 14 measurement windows are shown on the display of the safety measuring device, which can be set individually. The data transfer from the safety measuring device to a PC is done directly via the charging station. With the software of the occupational safety measuring device, the recorded measurement data can be read out and analyzed. In addition, all settings for the safety measuring device can be made via the software. Another special feature of the safety device is that the charging stations can be coupled with each other. This has the advantage that several safety measuring instruments can be charged via a power supply. Up to four safety measuring instruments can be charged at the same time per power supply. For optimum support and positioning, the safety measuring device is attached to the work clothing by the respective employee with two alligator clips. The distance between the hearing and the safety measuring device should be between 10 … 15 cm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Safety measuring device PCE-MND 10 1 x USB cable 1 x charging station with power supply 1 x supply bridge 1 x mounting bridge 1 x software CD 1 x carrying case 1x user manual
