PCE Instruments Vibration tester 10 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

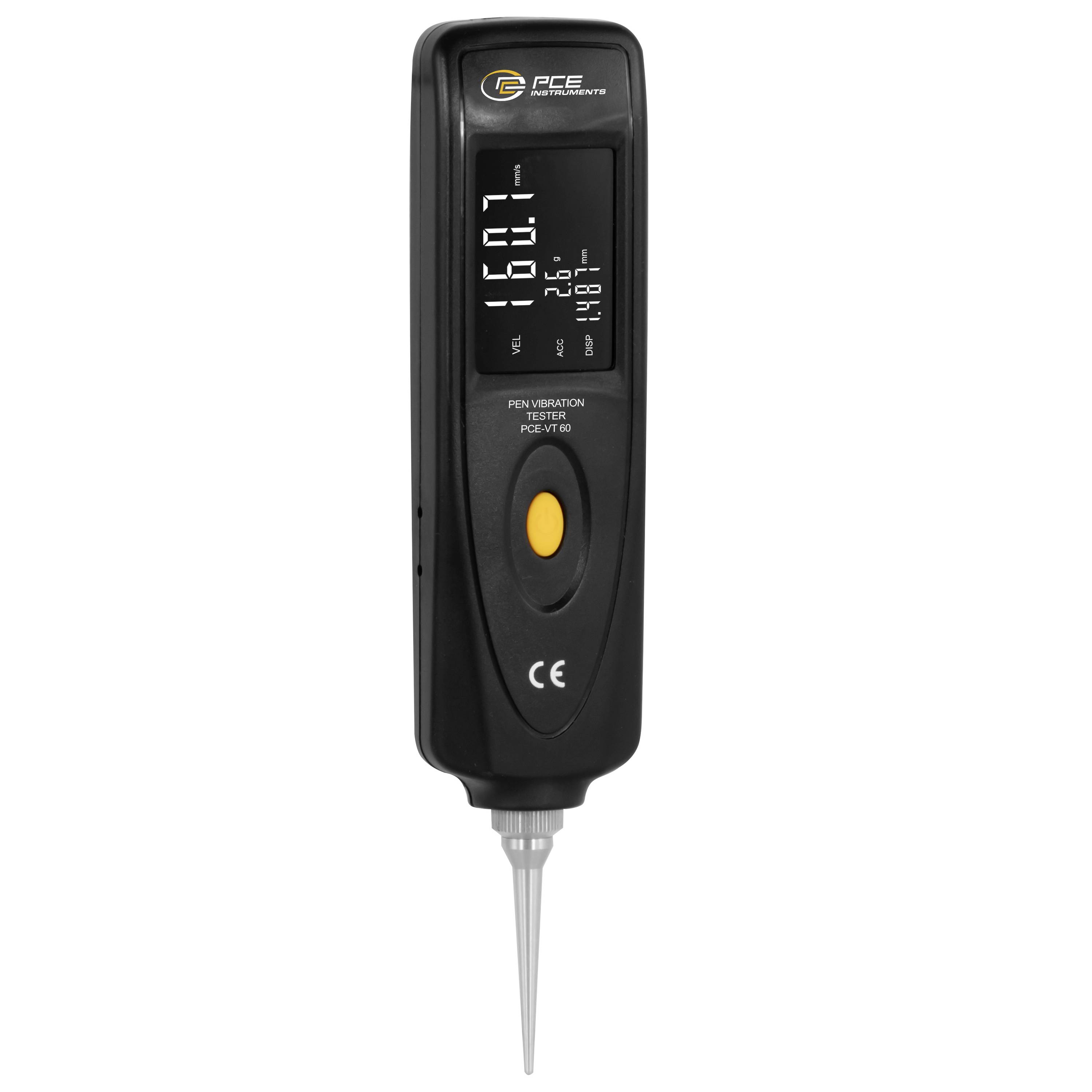

PCE Instruments Vibration Tester PCE-VT 60 Acceleration: 0.1…300 m/s² Speed: 0.1…300 mm/s Path: 0.001…3 mm
- Mobile vibration measurement
- Max Hold function
- Displays offset, velocity, and acceleration simultaneously
- Wide frequency range in acceleration mode
- Switchable units (metric/Imperial)
- Measurement according to ISO 2954
Technical specifications
- Acceleration
- Measuring range 0.1 ... 300 m/s²
- Resolution 0.1 m/s²
- Accuracy ±(10 % from MW. +0.2 m/s²)
- Frequency range 10 Hz ... 10 kHz
- Acceleration
- Measuring range 0.1 ... 985 ft/s²
- Resolution 0.1 ft/s²
- Accuracy ±(10 % from MW. +0.2 ft/s²)
- Speed
- Measuring range 0.1 ... 300 mm/s
- Resolution 0.01 mm/s.
- Accuracy ±(10 % from MW. +0.2 mm/s)
- Frequency range 10 Hz ... 1 kHz
- Speed
- Measuring range 0 ... 13 inch/s
- Resolution 0.01 inch/s
- Accuracy ±(10 % from MW. +0.2 inch/s)
- Way
- Measuring range 0.001 ... 3 mm
- Resolution 0.001 mm
- Accuracy ±(10 % from MW. +0.2 mm)
- Frequency range 10 Hz ... 1 kHz
- Way
- Measuring range 0.04 ... 120 mil
- Resolution 0.001 mil
- Accuracy ±(10 % from MW. +0.2 mil)
- General Technical Data
- MAX-Hold measurement functions
- Display type LCD
- Display size 2 inches
- Interface RS232
- ISO 2954 standard(s)
- Piezo-electric sensor
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply 100 ... 240 V AC 50/60 Hz
- Connector type for device Euro plug
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- 1000 mAh output
- Operating conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Dimensions ( L x W x H ) 158 x 43 x 22 mm
- Weighs 123 g.
- Basic accuracy
10 %
- Product type
Vibration tester
- Reading type
Acceleration
Speed
Motion
Vibration
Shift
- Display
LCD
- Operating voltage
100 V/AC - 240 V/AC, 50 - 60 Hz
- Dim
(L x W x H) 158 x 43 x 22 mm
- Weight
123 g
- Width
43 mm
- Height
22 mm
- Length
158 mm
- Interfaces
USB
Europlug
RS232
- Type
PCE-VT 60
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3788950 PCE Instruments Vibration tester 10 %
User & Safety Instructions
User & Safety Instructions 3788950 PCE Instruments Vibration tester 10 %
Description
The vibration tester is a handy measurement device for vibration analysis and machine monitoring in industry, production and maintenance. It is particularly suitable for rotating machines such as motors, pumps, gears or fans, in order to detect imbalances, misalignments or bearing problems at an early stage. Thanks to its portable design, it can be used directly on site for quality control, commissioning or predictive maintenance.
The vibration tester records the three most important vibration parameters - acceleration, speed and displacement - and shows these simultaneously on the display. The frequency ranges are 10 Hz for acceleration ... 10 kHz, 10 Hz each for speed and offset ... 1 kHz. These values enable accurate measurements of high frequency vibrations, such as Occur in gears, as well as in low-frequency movements of slow-running machines.

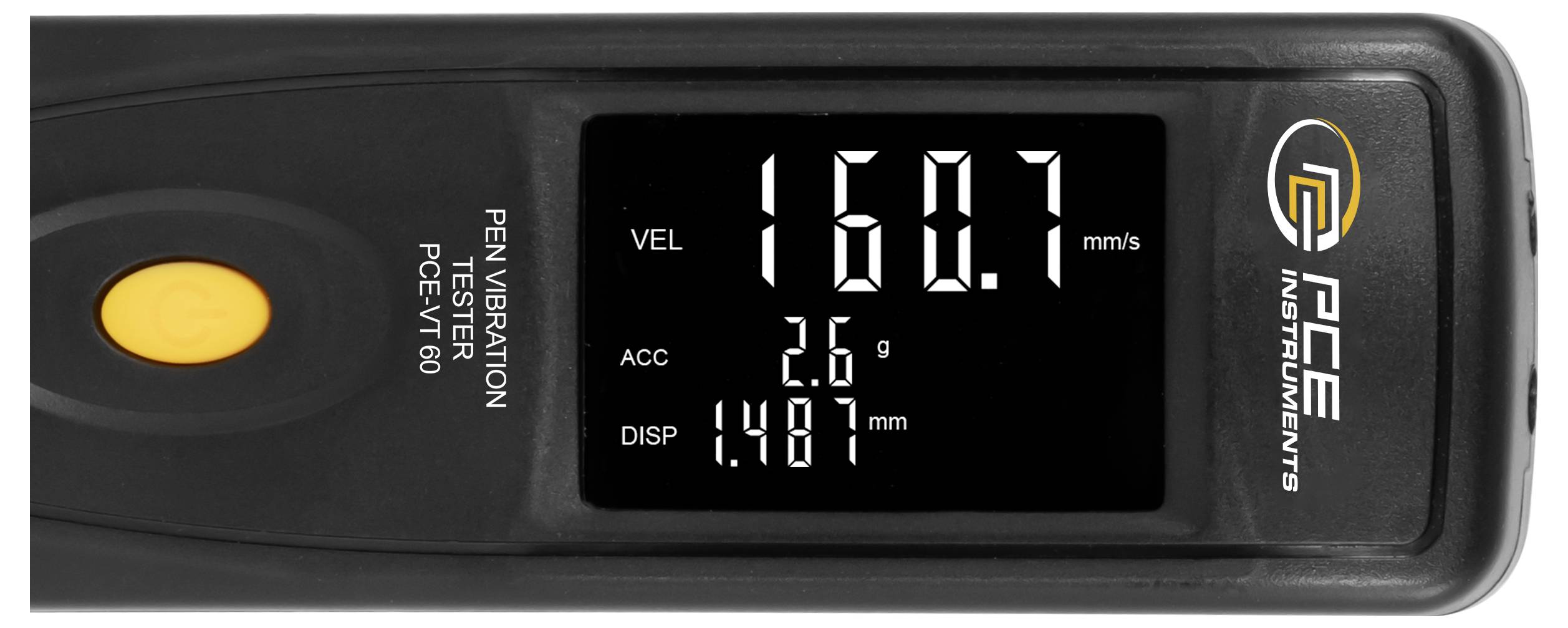

Technically, the vibration tester is based on a piezoelectric acceleration sensor, which ensures high measurement accuracy, exact repeatability and a wide frequency range. Measurements are displayed on a 4-digit, 2-inch LCD display that supports both metric and imperial units. Practical function such as MAX-Hold makes it possible to store the highest measurement value. The vibration tester is particularly mobile and easy to handle thanks to its robust design, low weight (123 g), compact dimensions and rechargeable battery.
Specifically, the vibration tester is suitable for operational use in maintenance, service technicians, engineers in mechanical engineering as well as for quality assurance departments that must monitor machine conditions. The device can also be used in training sessions or technical laboratories to demonstrate vibrations and their effects. The vibration tester makes precise statements about the condition of machines, reduces the risk of failure and extends the life of critical components.
This text is machine translated.
The vibration tester records the three most important vibration parameters - acceleration, speed and displacement - and shows these simultaneously on the display. The frequency ranges are 10 Hz for acceleration ... 10 kHz, 10 Hz each for speed and offset ... 1 kHz. These values enable accurate measurements of high frequency vibrations, such as Occur in gears, as well as in low-frequency movements of slow-running machines.
Technically, the vibration tester is based on a piezoelectric acceleration sensor, which ensures high measurement accuracy, exact repeatability and a wide frequency range. Measurements are displayed on a 4-digit, 2-inch LCD display that supports both metric and imperial units. Practical function such as MAX-Hold makes it possible to store the highest measurement value. The vibration tester is particularly mobile and easy to handle thanks to its robust design, low weight (123 g), compact dimensions and rechargeable battery.
Specifically, the vibration tester is suitable for operational use in maintenance, service technicians, engineers in mechanical engineering as well as for quality assurance departments that must monitor machine conditions. The device can also be used in training sessions or technical laboratories to demonstrate vibrations and their effects. The vibration tester makes precise statements about the condition of machines, reduces the risk of failure and extends the life of critical components.
This text is machine translated.

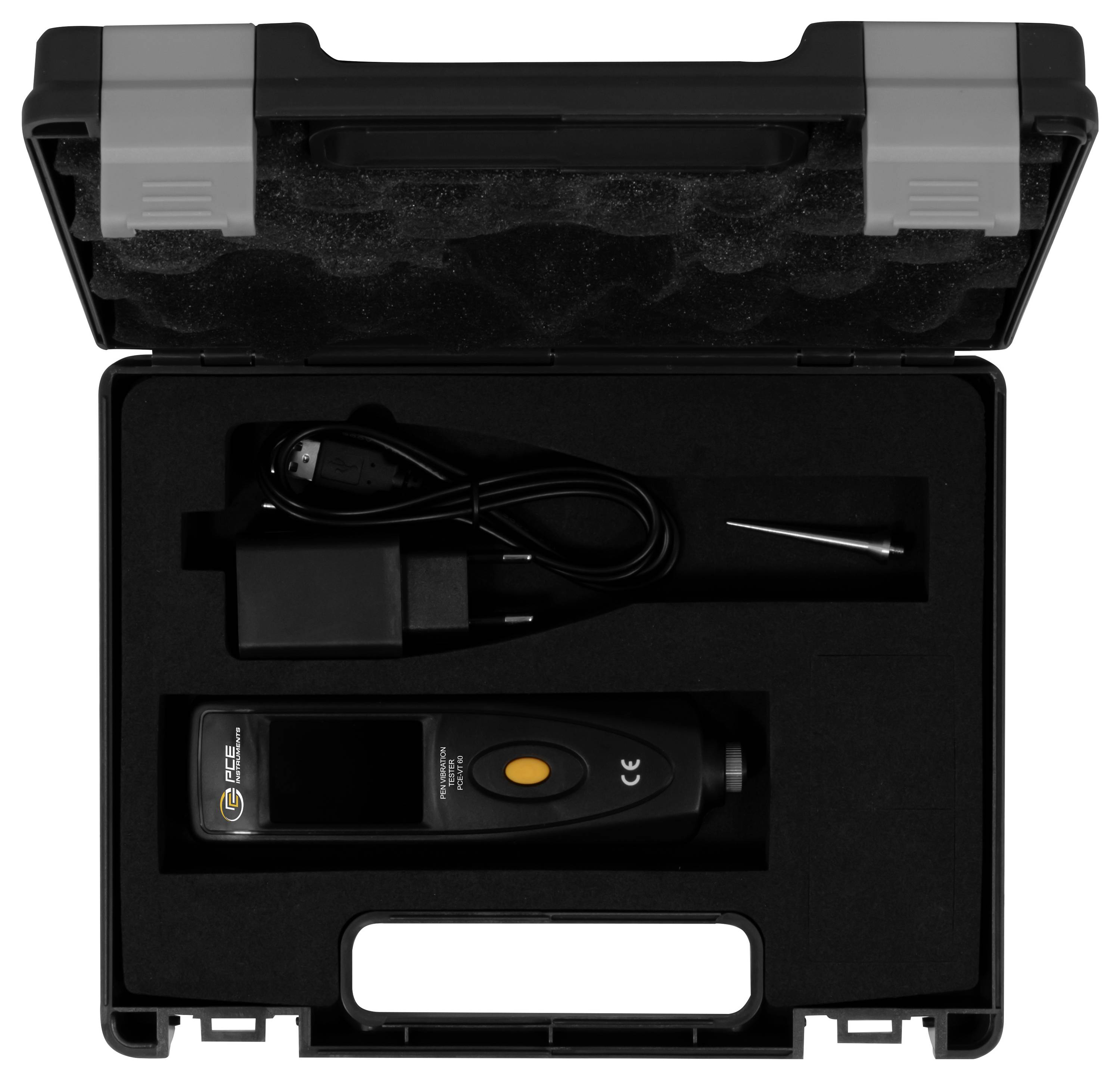

Scope of delivery
- 1 x vibration tester PCE-VT 60

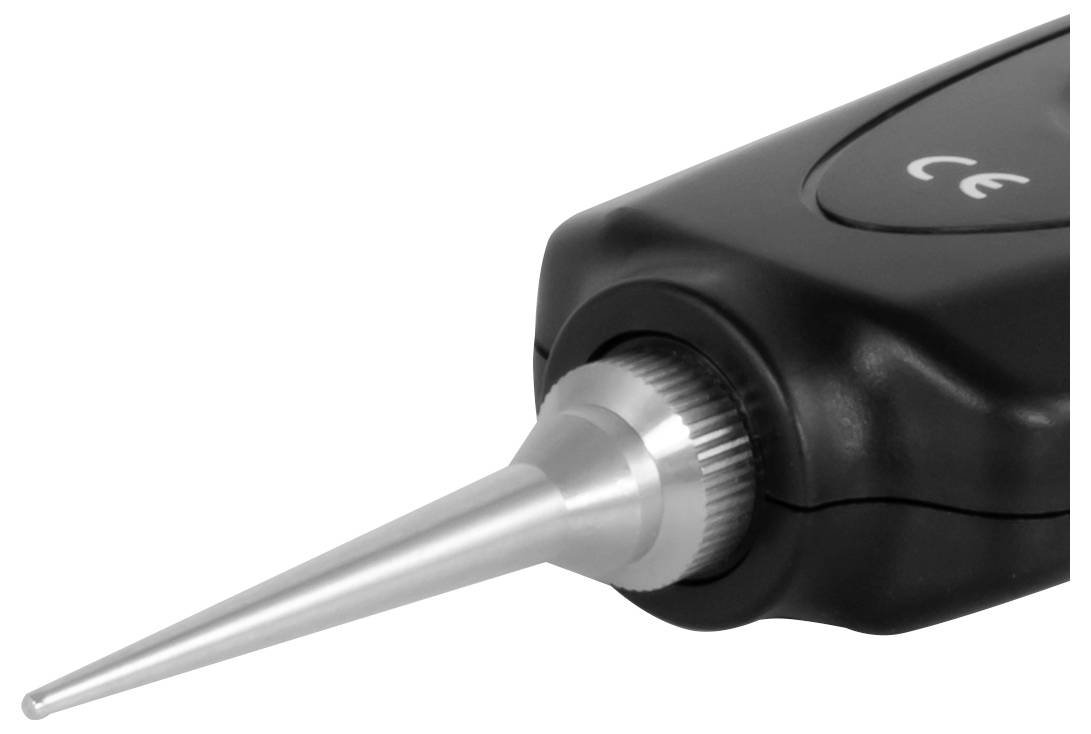

- 1 x Needle sensors
- 1 x power supply 5 V / 2.1 A
- 1 x USB-A cable to DC-hollow plug
- 1 x transport case
- 1x user manual
