PCE Instruments Vibration transducer PCE-VT 420 9 - 30 V DC 0.0005 up to 0.1999 G 0,0005 … 0,1999 m/s 1 pc(s)

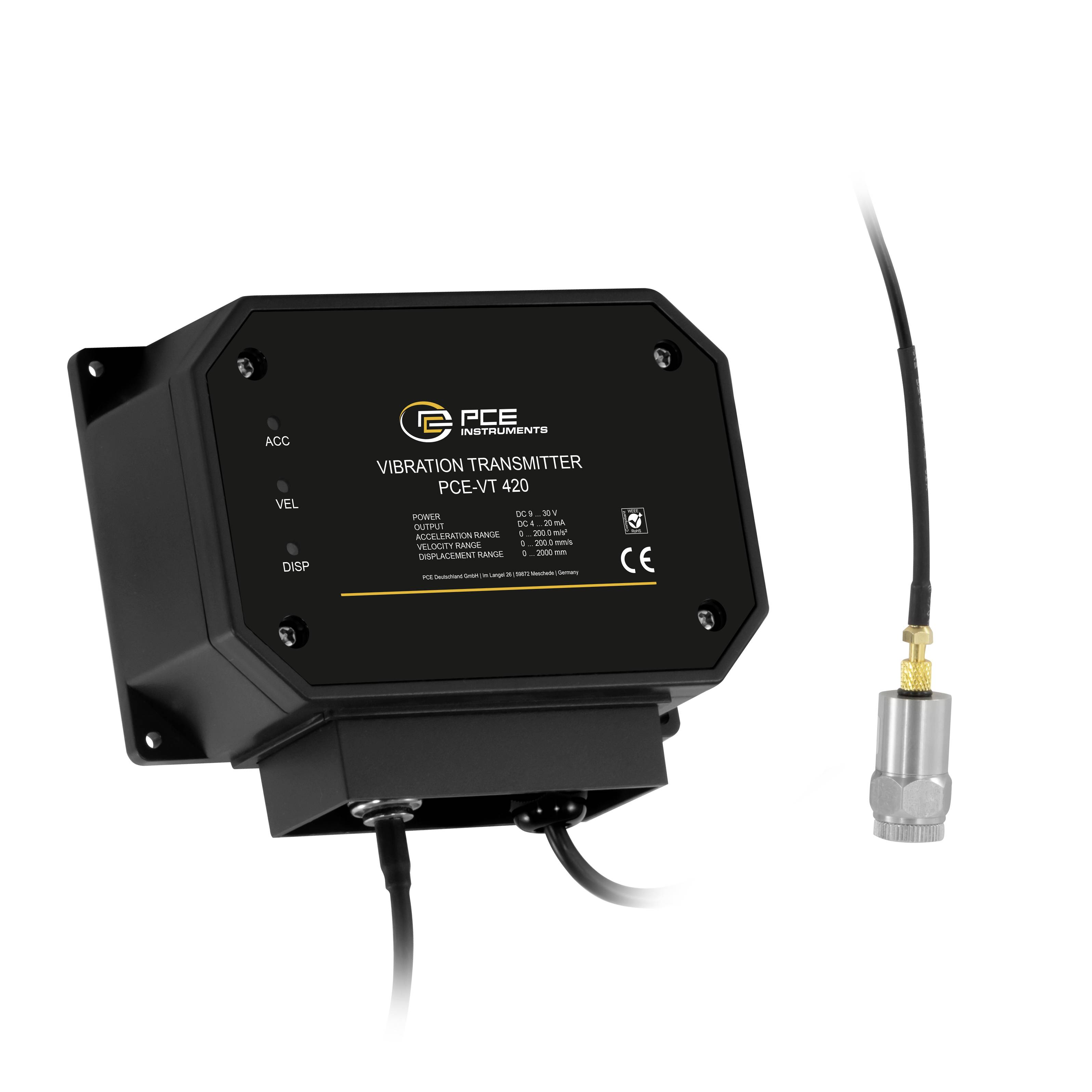

The vibration transmitter offers a reliable solution for monitoring the vibrations of industrial machines. The device can record and output acceleration, speed or displacement as desired. The desired measurement unit is easily set using the integrated DIP switches. The device operates in the frequency range of 10 Hz … 1000 Hz and meets the requirements of ISO 2954. The measuring ranges comprise 0.5 ... 199.9 m/s² for acceleration, 0.5 ... 199.9 mm/s for speed and 0 ... 1.999 mm for the shift. The high resolution of 0.1 m/s², 0.1 mm/s and 0.001 mm enables a precise detection of even the smallest vibrations. The accuracy is ±5 % + 2 digit under typical operating conditions.

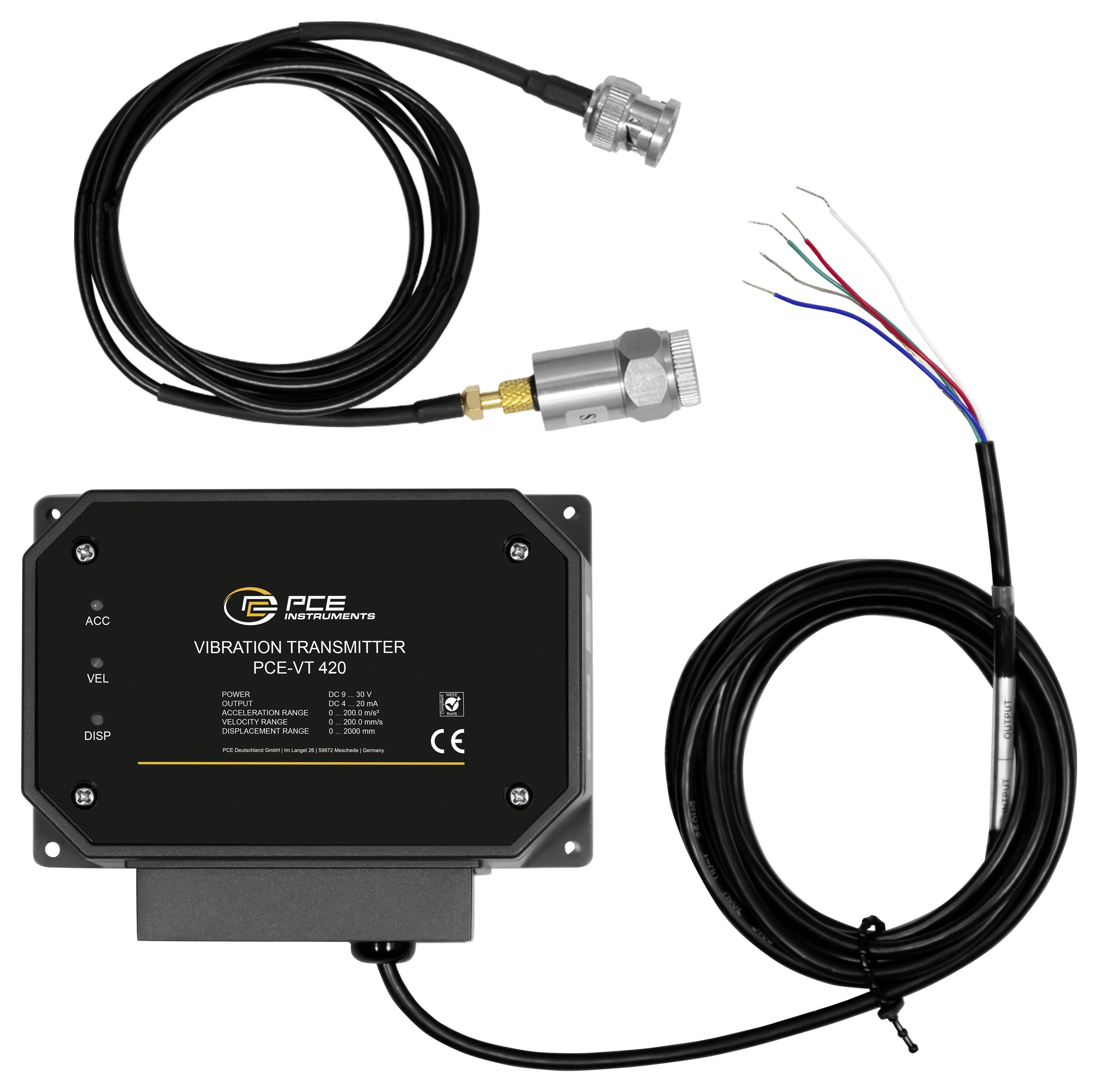

The vibration transmitter supports both RMS and peak to peak measurements, offering a wide range of analysis possibilities. The analog 4 ... 20 mA interface enables a simple integration into existing monitoring systems. The separate vibration detection is done via a robust probe with magnetic holder, which ensures a flexible and secure fixing at the measurement object. The housing of the vibration transmitter is protected according to IP3, the probe according to IP60. Power is supplied via 12 ... 30 V DC, as a result of which the vibration transmitter can be integrated in various industrial environments.

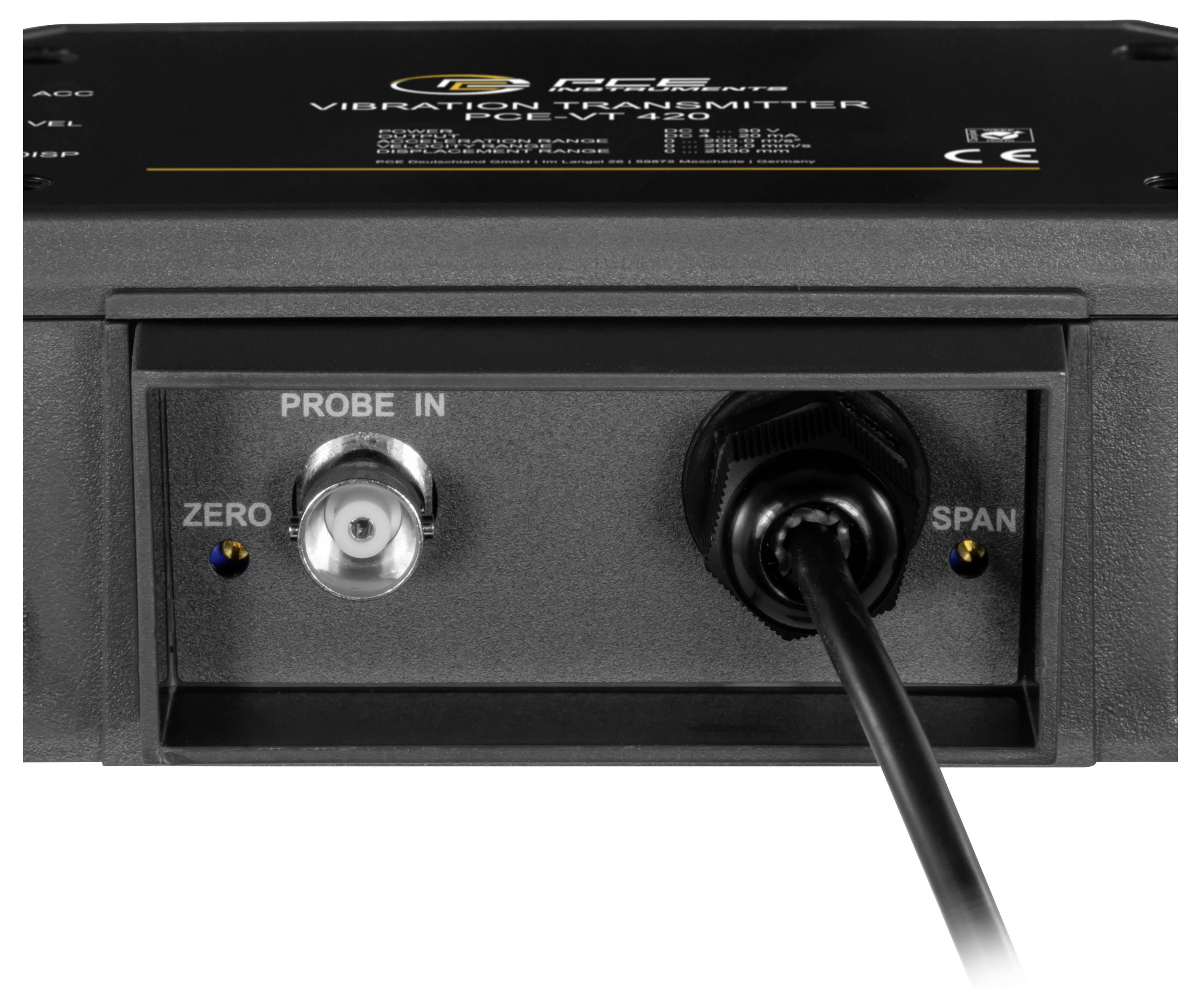

Thanks to zero and span adjustment the vibration transmitter can be optimally adjusted to suit individual measuring requirements. Operation is especially user-friendly owing to its compact design and easy handling. The vibration transmitter is suitable for Ideal for the status monitoring of machines, the preventive maintenance as well as for the continuous process monitoring in the industry. Typical application areas are the monitoring of motors, pumps, fans and other rotating machines in production, maintenance and quality assurance.

This text is machine translated.
