Buy PCE 025-6TT 025-6tt CEE plug 32 A 5-pin 400 V 1 pc(s)

Industrial connector plugs in red and grey with multiple golden contact pins, suitable for high-voltage connections.

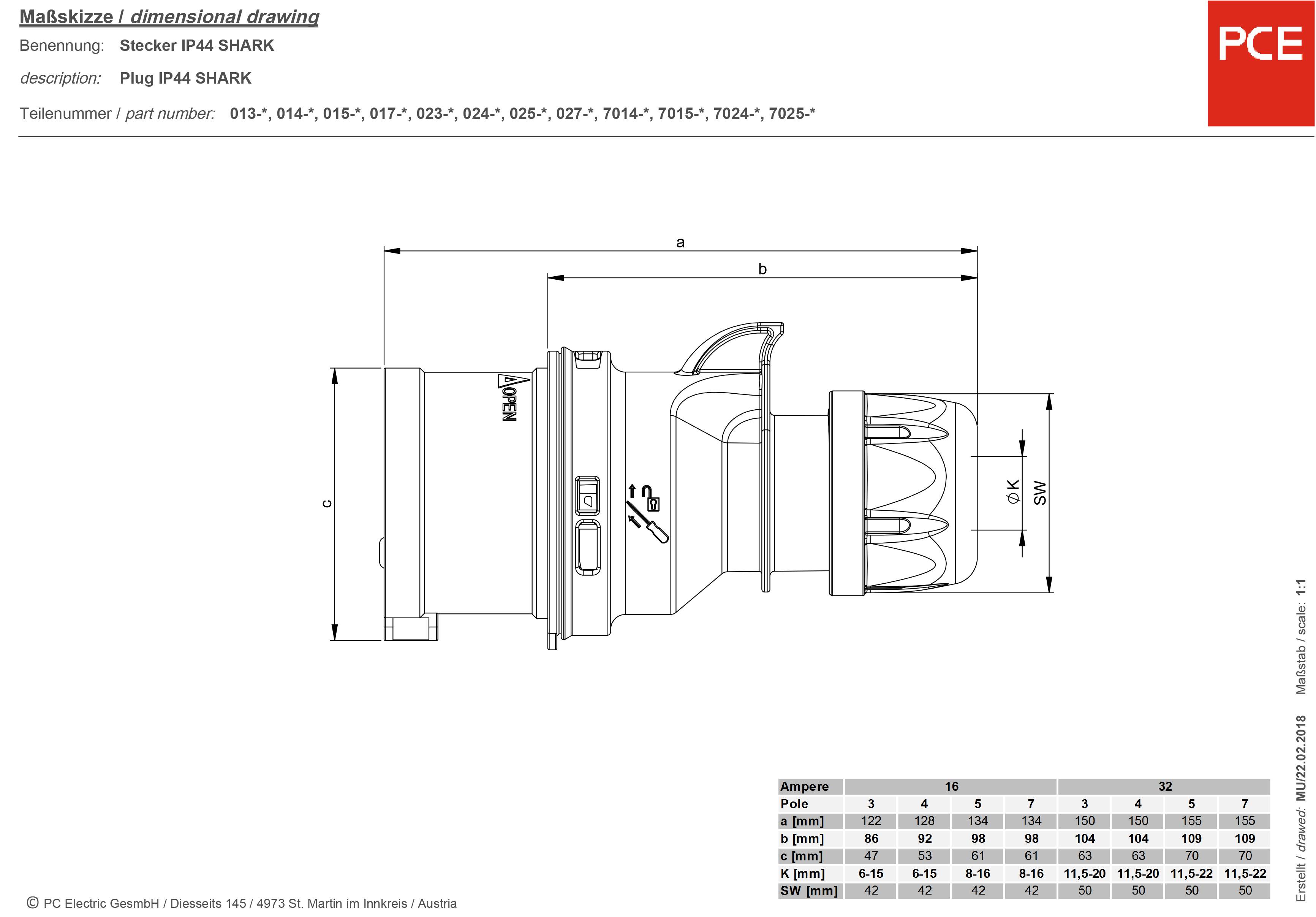

Technical drawing of an IP44 'SHARK' plug, showing different views with dimensional units in millimetres. Table with details in bottom right corner.

1/2

Datasheet (PDF)

Fast track dispatch on Wed, 8 Jul

107 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.87 / piece)

€ 5.87

plus VAT.

Report legal concerns

Highlights & Details

CEE Connector 32 A

IP44
Screwless connection technology

Technical specifications

For conductor cross section flexible up to 6 mm², single wire up to 10 mm²

Product type: CEE plug

Features: Screwless terminals

Nominal voltage: 400 V

Nominal current: 32 A

Nominal current - rounded value: 32 A

Type A: Screwless terminal

Type B: CEE plug

Cores: 5

Type: Connector

: IP44

Content: 1 pc(s)

Nominal current (details): 32 A

Operating voltage: 400 V

Documents & Downloads

Datasheet

Datasheet 614022 PCE 025-6TT 025-6tt CEE plug 32 A 5-pin 400 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 614022 PCE 025-6TT 025-6tt CEE plug 32 A 5-pin 400 V 1 pc(s)

Description

The screwless contact terminals, which are already open in the delivery status, enable a quick and simple introduction of conductor. The contact terminal can be easily closed by pressure of the finger.

Features

CEE-Plug 32A 5p 6h IP44/IP54 TT SHARK<>br Housing material<>: PA6
Pole no.: 5 (3P+N+PE) br<>Time position: 6h<><>
: 200/346V~ - 240/415V~ / 50+60Hz br Contacts: Brass br Connection technology: Screwless connection technology (TT) br<>Protection type: IP44/IP54
This text is machine translated.
