PCE Power Twist 335-6 CEE add-on socket 63 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.18
€ 29.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
14-day return policy included
Highlights & Details

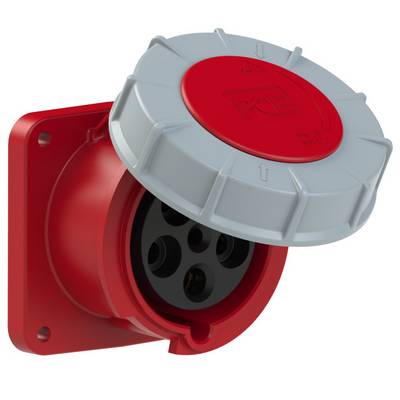

CEE surface-mount socket straight 63 A Twist
- IP67
Technical specifications

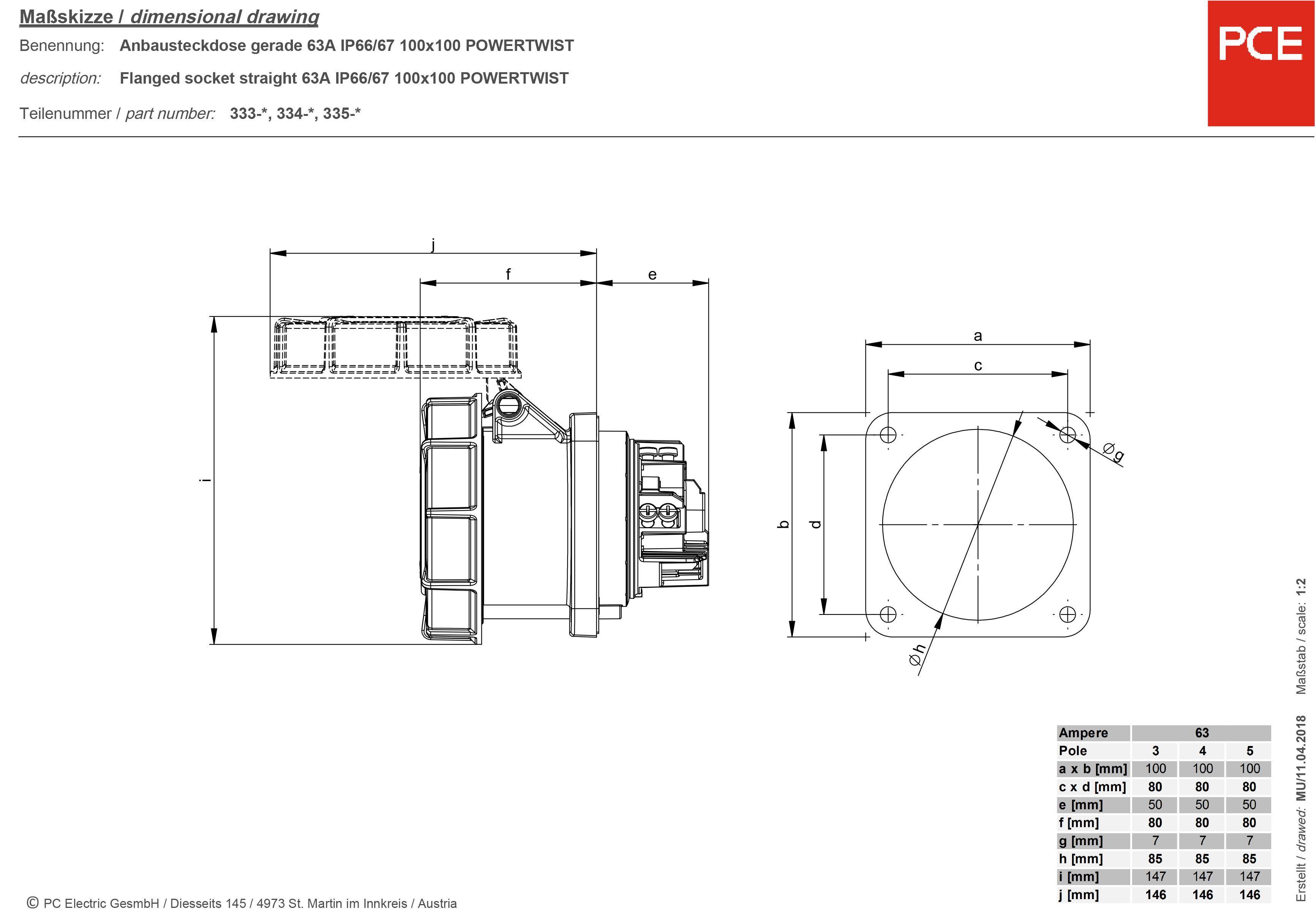

- For conductor cross section 6-16 mm² flexible, 6-25 mm ² single-wire
- Fitting depth: 50 mm
- Flange dimensions 100 x 100 mm
- Hole spacing 80 x 80 mm
- Product type
CEE add-on socket
- Nominal voltage
400 V
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type A
Screws
- Type B
CEE connector
- Cores
5
- Type
Straight
IP67
- Factory colour
Red
Grey
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 552982 PCE Power Twist 335-6 CEE add-on socket 63 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 552982 PCE Power Twist 335-6 CEE add-on socket 63 A 5-pin 400 V 1 pc(s)
Description
For installation in housing or systems, with frame clamp with screws.
