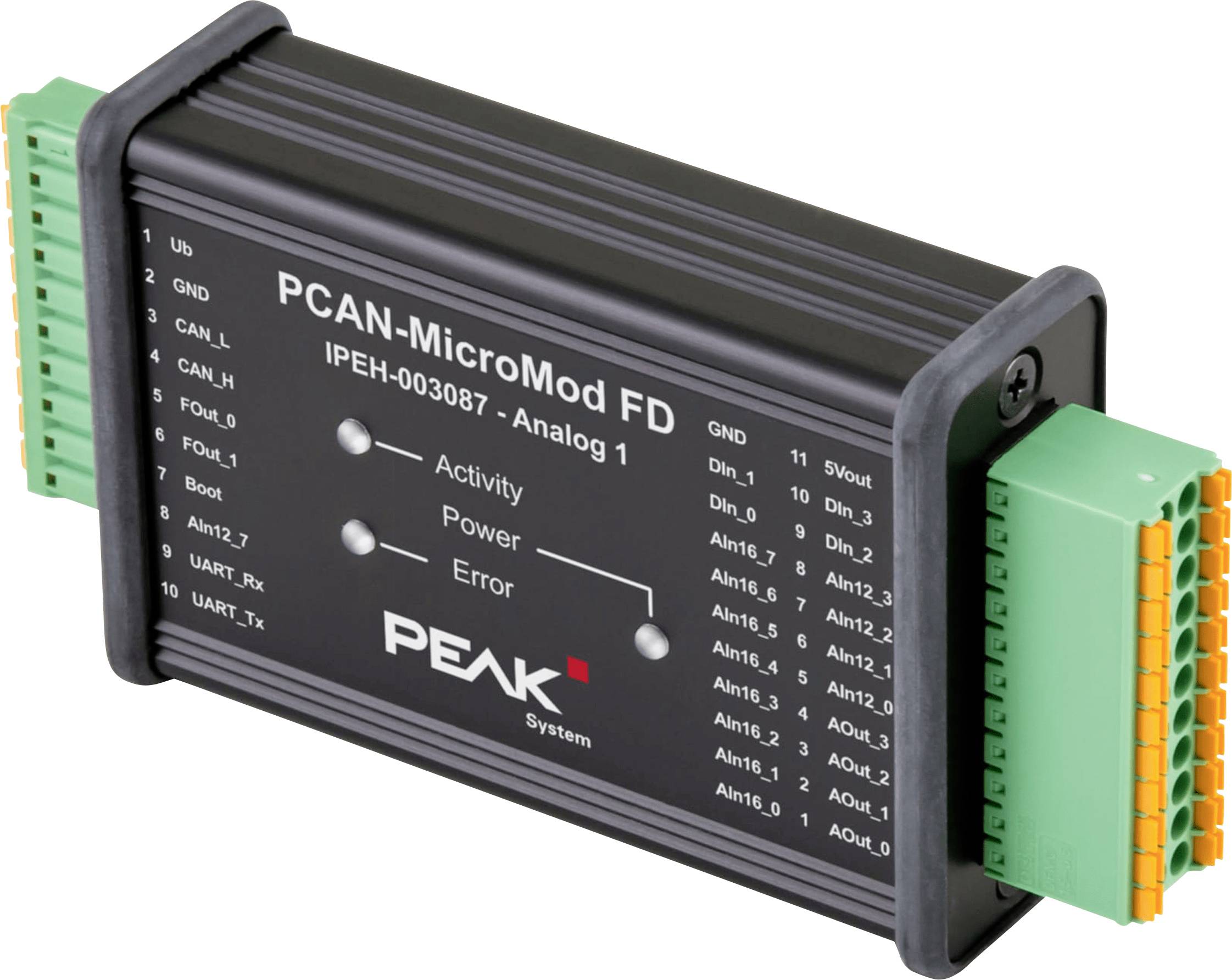

PEAK-System Technik IPEH-003087 PCAN-MicroMod FD Analog IO module
Part number:
Item no:
Product type
IO module
Type
PCAN-MicroMod FD Analog
Manufacturer part #
IPEH-003087
Datasheet (PDF)
Number
Total (€ 466.39 / piece)
€ 466.39
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Configurable CAN FD module with emphasis on analog I/Os
- Configurable I/O module with focus on analog inputs and outputs for CAN and CAN FD networks
- Compact board with plugged-in PCAN-MicroMod FD in aluminum housing and spring terminals for CAN, I / O and power supply
- Simple configuration with the included windows software PCAN-MicroMod FD Configuration
Technical specifications
- CAN/CAN FD bit rates: 20 kbit/s to 10 Mbit/s (ISO 11898-2)
- 2 frequency outputs with adjustable frequency range 0 to 20 kHz
- Analogue inputs: 8x 16-bit resolution, 4x 12-bit resolution, 1x voltage monitoring (0 to 30 V, 12-bit)
- Analogue outputs: 4x 12-bit resolution, voltage range 0 to 5 V or 0 to 10 V adjustable
- 4 digital inputs, per channel Pull-Up or Pull-Down configurable
- Product type
IO module
- Type
PCAN-MicroMod FD Analog
- Manufacturer part #
IPEH-003087
Documents & Downloads
Datasheet
Datasheet 3532753 PEAK-System Technik IPEH-003087 PCAN-MicroMod FD Analog IO module
User & Safety Instructions
User & Safety Instructions 3532753 PEAK-System Technik IPEH-003087 PCAN-MicroMod FD Analog IO module
Description
The PCAN-MicroMod FD Analog is a ready-to-use motherboard with the PCAN-MicroMod FD module which provides the peripherals for specific requirements. Spring-loaded terminal connectors are used to connect CAN, I/O and supply. The PCB PCAN-MicroMod FD Analog focuses on analog inputs and outputs that are equipped with appropriate protective circuits.
The PCAN-MicroMod FD is configured using the included Windows software. In addition to simple I/O mapping on CAN IDs, function blocks are also available for data processing. The configuration created on the computer is transferred via CAN bus to the PCAN-MicroMod FD, which then runs as an independent CAN node. Several modules can be configured independently on one CAN bus.
This text is machine translated.
The PCAN-MicroMod FD is configured using the included Windows software. In addition to simple I/O mapping on CAN IDs, function blocks are also available for data processing. The configuration created on the computer is transferred via CAN bus to the PCAN-MicroMod FD, which then runs as an independent CAN node. Several modules can be configured independently on one CAN bus.
This text is machine translated.
Scope of delivery
- PCAN-MicroMod FD configuration software for Windows
- Windows development package with GCC ARM embedded, flash program and programming examples
