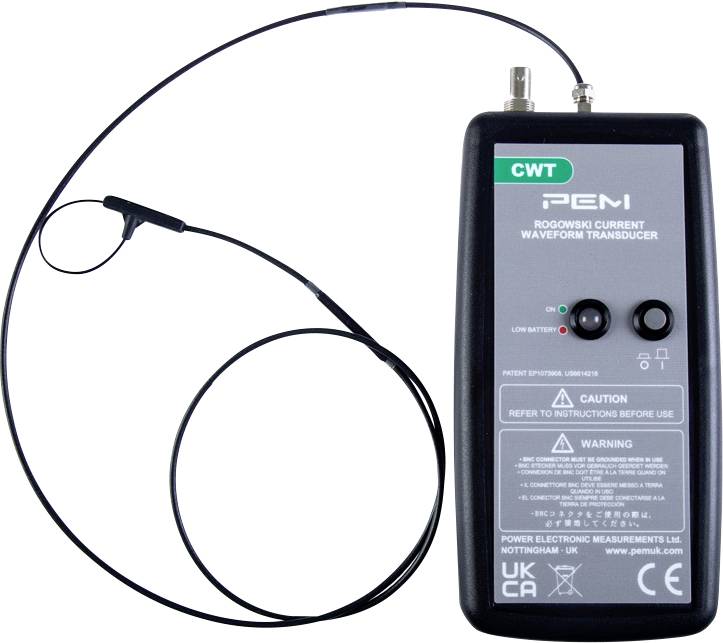

PEM CWT 06 Ultra Mini Clamp meter adapter A/AC reading range: 120 A (max) Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,785.71 / piece)
€ 1,785.71
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Rogowski current loop CWT Ultra Mini Series
- N/A
- Opening range of current clamps 80 mm
Technical specifications
- Output signal: 50 mV/A
- Opening range of current clamps
80 mm
- Product type
Clamp meter adapter
- Type B
BNC socket
Manufacturer's standards (no certificate)
- Amperage reading range AC (max.)
120 A
- Basic accuracy
2 %
- Power supply (details)
4 x AA battery
- Dim
(L x W x H) 183 x 93 x 32 mm
- Current reading
AC
- Output signal (max.)
6 V
- Width
93 mm
- Height
32 mm
- Length
183 mm
- Features
Flexible
Documents & Downloads
Datasheet
Datasheet 1667153 PEM CWT 06 Ultra Mini Clamp meter adapter A/AC reading range: 120 A (max) Flexible
User & Safety Instructions
User & Safety Instructions 1667153 PEM CWT 06 Ultra Mini Clamp meter adapter A/AC reading range: 120 A (max) Flexible
Description
Rogowski current loop of the CWT Ultra mini-series are easy to fit, practical feedback-free, ideal for tight installation spaces, insulated up to 1200 V and insensitive against overcurrent. You can run for measurement of current with fast current pulses, switching flanks or sinusoidal or sinusoidal current run can be used. Rogowski coils of the CWT Ultra Mini series of P.E.M. are suitable for development and testing tasks in devices and components of power electronics. You can combine a only 1.6 mm thin, flexible, insulated, easily created coil with the ability to very fast current curves exactly to capture, whether sinusoidal, clock or pulse-shaped.
This text is machine translated.
This text is machine translated.
Features
- Recording of current run of semiconductor switches
- Development, testing and maintenance of power electronics
- Measuring technical monitoring sine-wave of high-frequency currents
- Measuring fault currents and shutdown current run
- Measurement of pulse currents
- Measurement of alternating currents with high direct current shares
- Measurement of current harmonic
- Measurement of phase or fault currents in three-phase systems
Scope of delivery
- Batteries
- 0.5 m BNC cable
- User manual.
Hints
Please check carefully whether all specifications your desired requirements. (Cable length, loop length, etc.). This is necessary because all cwt's customer-specific custom and therefore cannot be exchanged.
