PEM CWTUM-S/03/B/1/80 Clamp meter adapter A/AC reading range: 60 A (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,108.40 / piece)
€ 2,108.40
plus VAT.
14-day return policy included
Highlights & Details

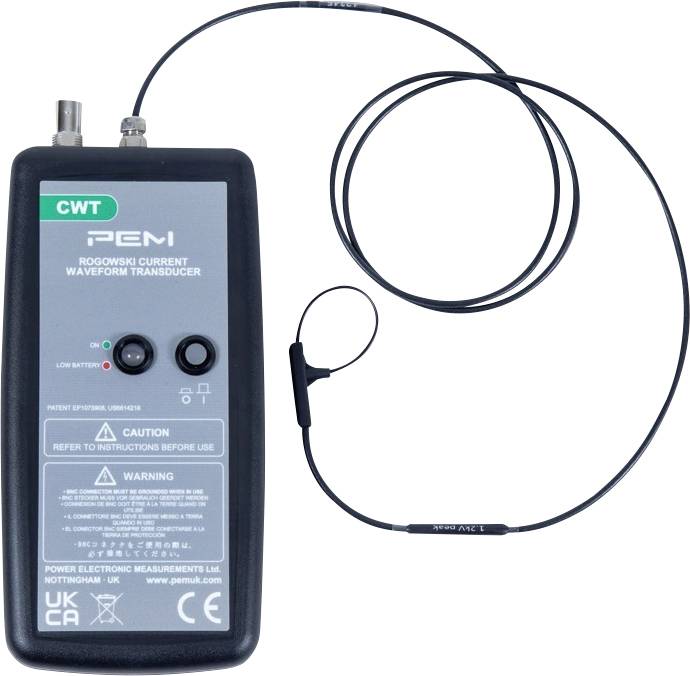

PEM Rogowski current loop CWTUM-S/03/B/1/80
- N/A
Technical specifications
- High sensitivity 100 mV/A.
- Peak di/dt to 100 kA/μs
- Easy integration: Standard BNC output, compatible with most oscilloscopes and data acquisition systems.
- Product type
Clamp meter adapter
Manufacturer's standards (no certificate)
- Amperage reading range AC (max.)
60 A
- Dim
(L x W) 80 mm x 1.2 mm
- Current reading
AC
- Width
1.2 mm
- Length
80 mm
- Measurement type (details)
Non-invasive
- Temperature reading range (max.)
125 °C
- Temperature reading range (min.)
-40 °C
- Frequency range
Up to 30 MHz
Documents & Downloads
Datasheet
Datasheet 3540278 PEM CWTUM-S/03/B/1/80 Clamp meter adapter A/AC reading range: 60 A (max)
User & Safety Instructions
User & Safety Instructions 3540278 PEM CWTUM-S/03/B/1/80 Clamp meter adapter A/AC reading range: 60 A (max)
Description
The CWTUM-S/03 is the perfect solution for precise current measurements in demanding applications. With its ultra-thin Rogowski-coil of just 1.2 mm cross-section it fits in the narrowest measurement environments and enables a troublefree recording of fast current changes and high-frequency currents.
Thanks to its high bandwidth of up to 30 MHz (-3 dB) and an extraordinary di/dt capability of 100 kA/μs, it is ideal for the analysis of power electronics, EMC tests and transient measurements.
This text is machine translated.
Thanks to its high bandwidth of up to 30 MHz (-3 dB) and an extraordinary di/dt capability of 100 kA/μs, it is ideal for the analysis of power electronics, EMC tests and transient measurements.
This text is machine translated.
Hints
Please check carefully that all specifications meet your requirements. (Cable length, loop length, etc.) This is necessary because all CWT's are customer-specific products and are therefore excluded from the exchange.
