PEM Dcflex/40/1000 Clamp meter adapter A/DC reading range: 40000 A (max) Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,584.03 / piece)
€ 3,584.03
plus VAT.
14-day return policy included
Highlights & Details
DC current clamp of the DCflex series
- N/A
- Opening range of current clamps 1000 mm
Technical specifications
- Opening range of current clamps
1000 mm
- Product type
Clamp meter adapter
Manufacturer's standards (no certificate)
- Basic accuracy
1 %
- A DC reading range (max.)
40000 A
- Power supply (details)
Battery 4 x AA 1.5 V
- Dim
(L x W x H) 183 x 93 x 32 mm
- Current reading
DC
- Width
93 mm
- Height
32 mm
- Length
183 mm
- Features
Flexible
Documents & Downloads
Datasheet
Datasheet 2114747 PEM Dcflex/40/1000 Clamp meter adapter A/DC reading range: 40000 A (max) Flexible
User & Safety Instructions
User & Safety Instructions 2114747 PEM Dcflex/40/1000 Clamp meter adapter A/DC reading range: 40000 A (max) Flexible
Description

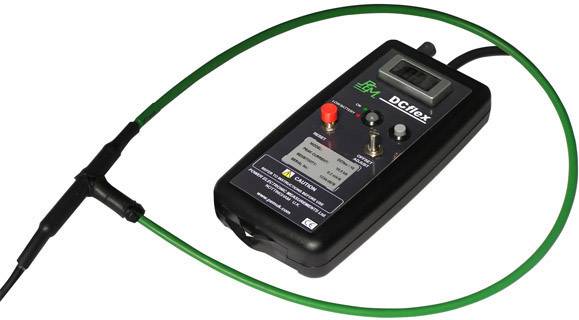

The DC Flex clamp-on ammeter is an easy-to-use, cost-effective, clip-around DC clamp-on ammeter. It is suitable for measuring large direct currents of 2 kA and more with a typical accuracy of ±1%.
This text is machine translated.
This text is machine translated.
Features
- Thin, flexible, clip-around coil, which can be easily used in confined spaces.
- Accuracy typically 1%
- Intrinsically safe, electrically isolated measurement
- Battery-operated with integrated display on the casing, which means that the use of external oscilloscopes or measuring devices is not necessary
Hints
Please make sure that all specifications meet your requirements. (Cable length, loop length, etc.). This is necessary because all cwt´s are custom-made and are therefore excluded from the exchange.
