PENTATECH 25646 IR illuminator IR range (max.) 60 m Outdoors
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Infrared radiator IR26/850
- Weatherproof housing (IP66)
- Lighting (850 nm wavelength)
- 12 High-power Infrared-LEDs
- Illumination range max. 60 m x 80° (outside, depending on the type of camera)
Technical specifications
- IP66 protection rating
- Lighting: 850 nm wavelength
- Illumination range max. 60 m x 80° (outside, depending on the type of camera)
- Operating voltage: 12 V DC, max. 1300 mA via approx. 50 cm long connection cable with DC coupling
- Colour: Signal white similar to RAL 9003
- Casing dimensions 150 x 100 x 86 mm
- Length of joint holder 111 mm
- Product type
IR illuminator
- Radiation angle
80°
- Used at
Outdoors
- Shaft length
850 nm
- IR range (max.)
60 m
Documents & Downloads
Datasheet
Datasheet 2898358 PENTATECH 25646 IR illuminator IR range (max.) 60 m Outdoors
User & Safety Instructions
User & Safety Instructions 2898358 PENTATECH 25646 IR illuminator IR range (max.) 60 m Outdoors
Information
Information 2898358 PENTATECH 25646 IR illuminator IR range (max.) 60 m Outdoors
Description

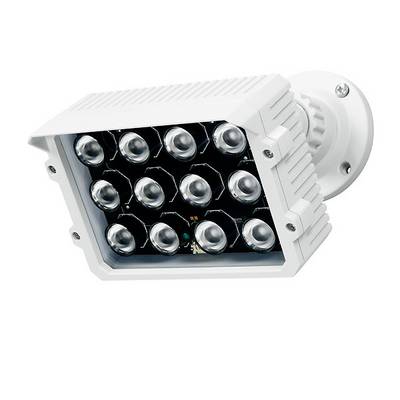

PENTATECH infrared floodlight with 12 high power infrared LEDs for lighting of B/W and day/night cameras and cameras with built-in infrared illumination.
This text is machine translated.
This text is machine translated.
Features
- Infrared Illuminators in Weatherproof Housing (IP66)
- Illumination for B/W and day/night cameras as well as for cameras with integrated infrared illumination
- 12 high-power infrared LEDs are activated via an integrated twilight switch
- With hinged bracket for wall and ceiling mounting with interior cable routing
- Suitable DC adapter plug with screw clamps is included.
