PENTATECH 25647 IR illuminator IR range (max.) 80 m Outdoors
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
14-day return policy included
Highlights & Details
Infrared radiator IR28/850
- Weatherproof housing (IP66)
- Lighting (850 nm wavelength)
- 24 High-power Infrared-LEDs
- Illumination range max. 80 m x 80° (outside, depending on the type of camera)
Technical specifications
- IP66 protection rating
- Lighting (850 nm wavelength)
- Illumination range max. 80 m x 80° (outside, depending on the camera type) Operating voltage: 12 V DC, max. 1900 mA via approx. 45 cm long connection cable with DC coupling
- Colour: Signal white similar to RAL 9003
- Casing dimensions 200 x 130 x 87 mm
- Length of joint holder 114 mm
- Product type
IR illuminator
- Radiation angle
80°
- Used at
Outdoors
- Shaft length
850 nm
- IR range (max.)
80 m
Documents & Downloads
Datasheet
Datasheet 2898359 PENTATECH 25647 IR illuminator IR range (max.) 80 m Outdoors
User & Safety Instructions
User & Safety Instructions 2898359 PENTATECH 25647 IR illuminator IR range (max.) 80 m Outdoors
Information
Information 2898359 PENTATECH 25647 IR illuminator IR range (max.) 80 m Outdoors
Description

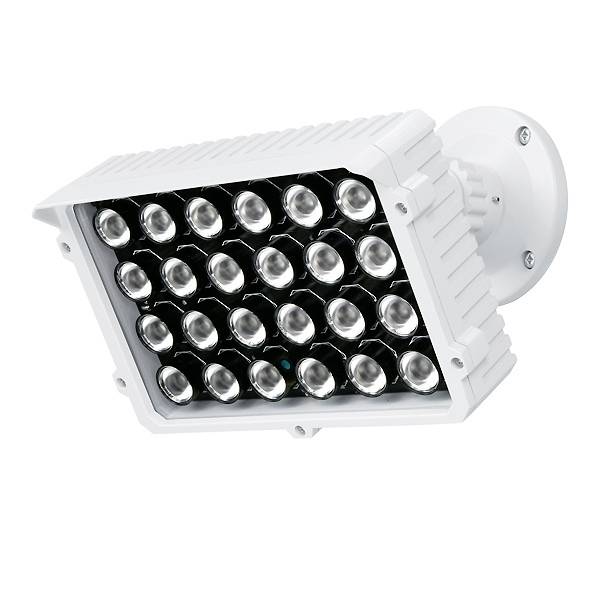

PENTATECH infrared floodlight with 24 high power infrared LEDs for lighting of B/W and day/night cameras and cameras with built-in infrared illumination.
This text is machine translated.
This text is machine translated.
Features
- Infrared Illuminators in Weatherproof Housing (IP66)
- Illumination for B/W and day/night cameras as well as for cameras with integrated infrared illumination
- 24 high-power infrared LEDs are activated via an integrated twilight switch
- With hinged bracket for wall or ceiling mounting with interior cable routing
- Suitable DC adapter plug with screw clamps is included.
