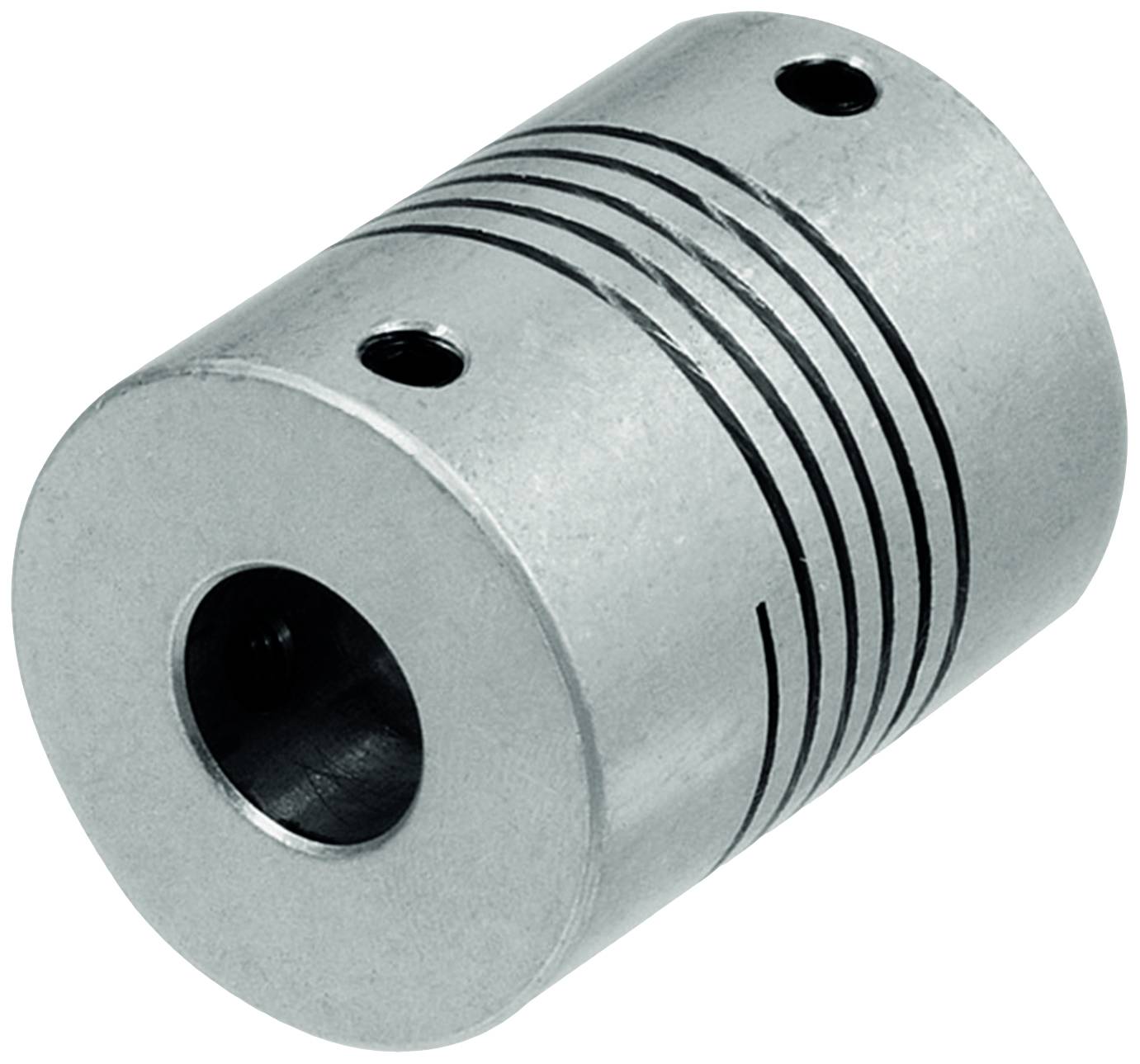

Pepperl+Fuchs 030530 Coupler KW-6/10 1 pc(s)
EAN:
Part number:
Item no:
Product type
Coupler
Type
KW-6/10
Content
1 pc(s)
Wireless charging
No
UKCA
not relevant
Datasheet (PDF)
Technical specifications
- Product type
Coupler
- Type
KW-6/10
- Content
1 pc(s)
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2630171 Pepperl+Fuchs 030530 Coupler KW-6/10 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630171 Pepperl+Fuchs 030530 Coupler KW-6/10 1 pc(s)
Description
COUPLING FOR TRD-G/-GK/-AK/-K.
This text is machine translated.
This text is machine translated.
Features
- Ambient conditionsOperating temperature: -30 ... 150 °C (-22 ... 302 °F)Mechanical data:Shaft diameter: D1 = 6 mm, D2 = 10 mmMaterial: Aluminum, anodizedWeight 35 gSpeed: Max. 8000 min -1Max torque 1 NmRadial offset: Max. ± 0.3 mmAxial offset: Max. ± 0.5 mmAngle error: Max. ± 4 °Torsion spring stiffness: 18 Nm / wheelRadial spring stiffness: 50 N / mmMoment of inertia: 30 kg m2 x 10-7Attachment: Clamping screws M4 x 6, DIN 916Tightening torque of the clamping screws: Max. 1.2 Nm
