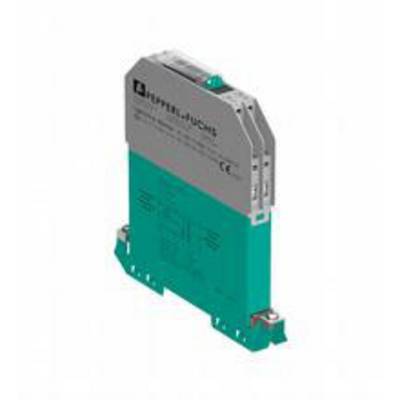

Pepperl+Fuchs 098908 K-LB-1.30 Surge protection module 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of protected signal lines: 4
- Labeling: Space for labeling on the front side
- Ambient temperature: -30 °C to +80 °C
- Weight approx. 100 g
- Mounting: On 35 mm DIN rail
- Leakage current<: 10 µA at 1 V and 25 °C, line-line
- Maximum continuous voltage 6 V/DC
- Longitudinal resistance<: 0.5 Ω per cable
- Surge current rating: 10 kV/5 kA (category C2), 2 kV/2 kA (category D1)
- Impulse leakage surge current 2 kA per line (2x)
- Nominal surge current 5 kA per line (10x)
- Rated surge current 10 kA per line (1x)
- Total leakage current 20 kA (1x)
- Pulse reset time<: 30 ms
- Current: 250 mA
- Installation location: Interior
- Wire cross-section 2 x 2.5 mm²
- Relative humidity: 5% - 95%
- Voltage: 6 V
- Rated current 250 mA
- Product type
Surge protection module
- Leakage current
20 kA
- Nominal voltage
24 V DC
- Type
Screw terminal connectors
IP20
- Manufacturer part #
098908
- Dim
(L x W x H) 110 x 12.5 x 115 mm
- Length
110 mm
- Width
12.5 mm
- Height
115 mm
- Content
1 pc(s)
