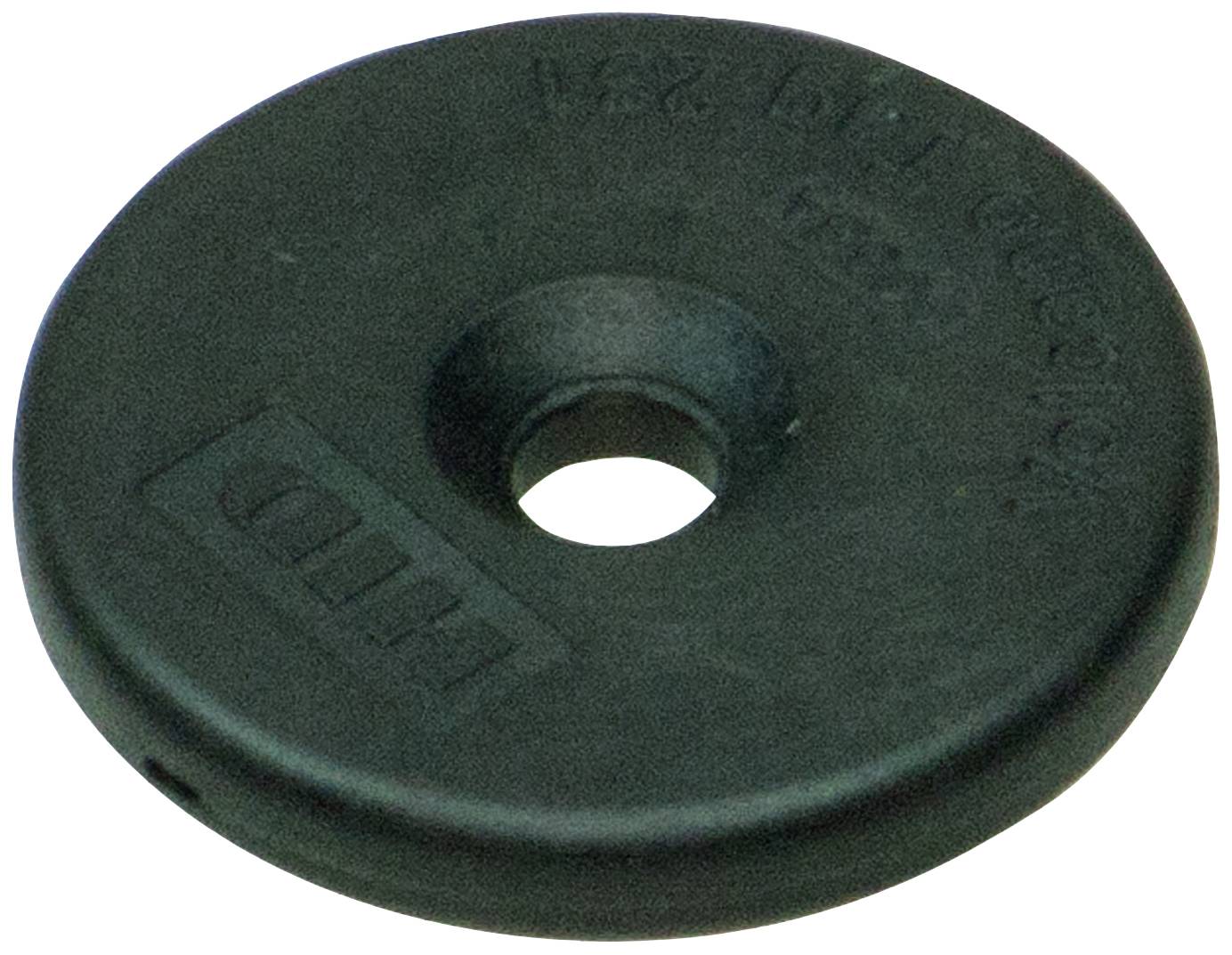

Name: Pepperl+Fuchs 261627 RFID transponder IPC02-26-T6 10pcs 10 pc(s)
Brand: Pepperl+Fuchs
SKU: 2629166

Image similar

Product type

RFID transponder

Type

IPC02-26-T6 10pcs

Content

10 pc(s)

Wireless charging

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Documents & Downloads

Datasheet 2629166 Pepperl+Fuchs 261627 RFID transponder IPC02-26-T6 10pcs 10 pc(s)

User & Safety Instructions 2629166 Pepperl+Fuchs 261627 RFID transponder IPC02-26-T6 10pcs 10 pc(s)

Code carrier, operating frequency: 125 kHz, design: Cylindrical

This text is machine translated.

General dataOperating frequency 125 kHzTransfer rate 2 kBit/sMemoryChip type: EM4102 Unique (EM microelectronic)Read cycles: UnlimitedData retention time > : 10 yearsComplianceRadio systems Directive 2014/53/EU: EN 300330RoHS Directive 2011/65/EU (RoHS): IEC/EN 63000ComplianceProtection class EN 60529RFID: ISO/IEC 18000-2Ambient conditionsAmbient temperature: -25 ... 85 °C (-13 ... 185 °F) | 20 ... 160 °C (293 ... 433 K) for 100 x 5 minutes with transposition every 30 secondsStorage temperature: -25 ... 140 °C (-13 ... 284 °F) for 1000 hours | 200 °C (473 K) for 5 x 35 minutesShock and shock resistance: Shock: 40 g, 18 ms in 6 room axes 2000 x according to IEC 68-2-29 | Vibration: 10 g, 10 ... 2000 Hz, 2.5 hours in 3 room axes according to IEC 68-2-6Mechanical data:Housing height 4 mmHousing diameter 26 mmProtection class IP68 (24 hours in 1 m water depth)Materials PA casingInstallation In air: YesWeight 3.6 gDesign: CylindricalNote: Supplied in packs of 10
