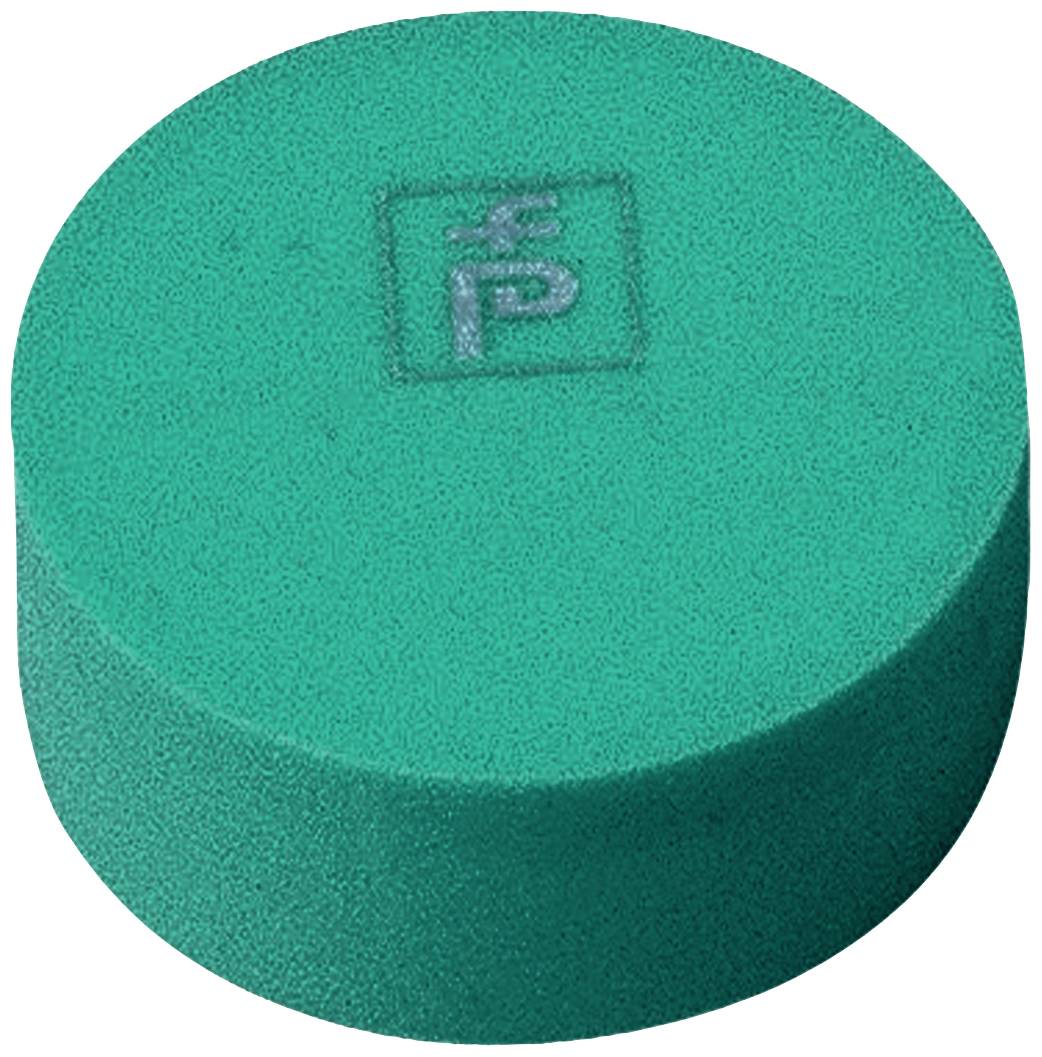

Pepperl+Fuchs 263243 RFID transponder IQC33-10 10pcs 10 pc(s)
EAN:
Part number:
Item no:
Product type
RFID transponder
Type
IQC33-10 10pcs
Content
10 pc(s)
Wireless charging
No
Datasheet (PDF)
Technical specifications
- Product type
RFID transponder
- Type
IQC33-10 10pcs
- Content
10 pc(s)
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 2630182 Pepperl+Fuchs 263243 RFID transponder IQC33-10 10pcs 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2630182 Pepperl+Fuchs 263243 RFID transponder IQC33-10 10pcs 10 pc(s)
Description
Data carrier, operating frequency: 13.56 MHz, design: Cylindrical
This text is machine translated.
This text is machine translated.
Features
- General data
- Operating frequency 13.56 MHz
- Transfer rate up to 26 kBit/s.
- Memory
- Chip type: FRAM MB89R118 (Fujitsu)
- FRAM 16 kBit
- UID:64 bit
- Storage organization: 8 bytes/Block
- Read cycles: Unlimited
- Write cycles: Unlimited
- Data Hold Time: 10 years
- Compliance
- Radio systems
- Directive 2014/53/EU: EN 300330
- RoHS
- Directive 2011/65/EU (RoHS): IEC/EN 63000
- Compliance with standards
- Protection class EN 60529
- RFID: ISO/IEC 15693-1 | ISO/IEC 15693-2 | ISO/IEC 15693-3 | ISO/IEC 18000-3
- Ambient conditions
- Ambient temperature: -40 ... 85 °C (-40 ... 185 °F)
- Storage temperature: -40 ... 85 °C (-40 ... 185 °F)
- Mechanical data:
- Housing height 4.5 mm
- Housing diameter 10 mm - 0.13 mm
- Protection class IP67
- Materials
- PBT casing
- Casting compound/hardener: CY 221/HY 2966
- Installation
- In metal: Yes
- On metal: Yes
- In air: Yes
- Design: Cylindrical
- Note: Packaging unit 10 pieces
