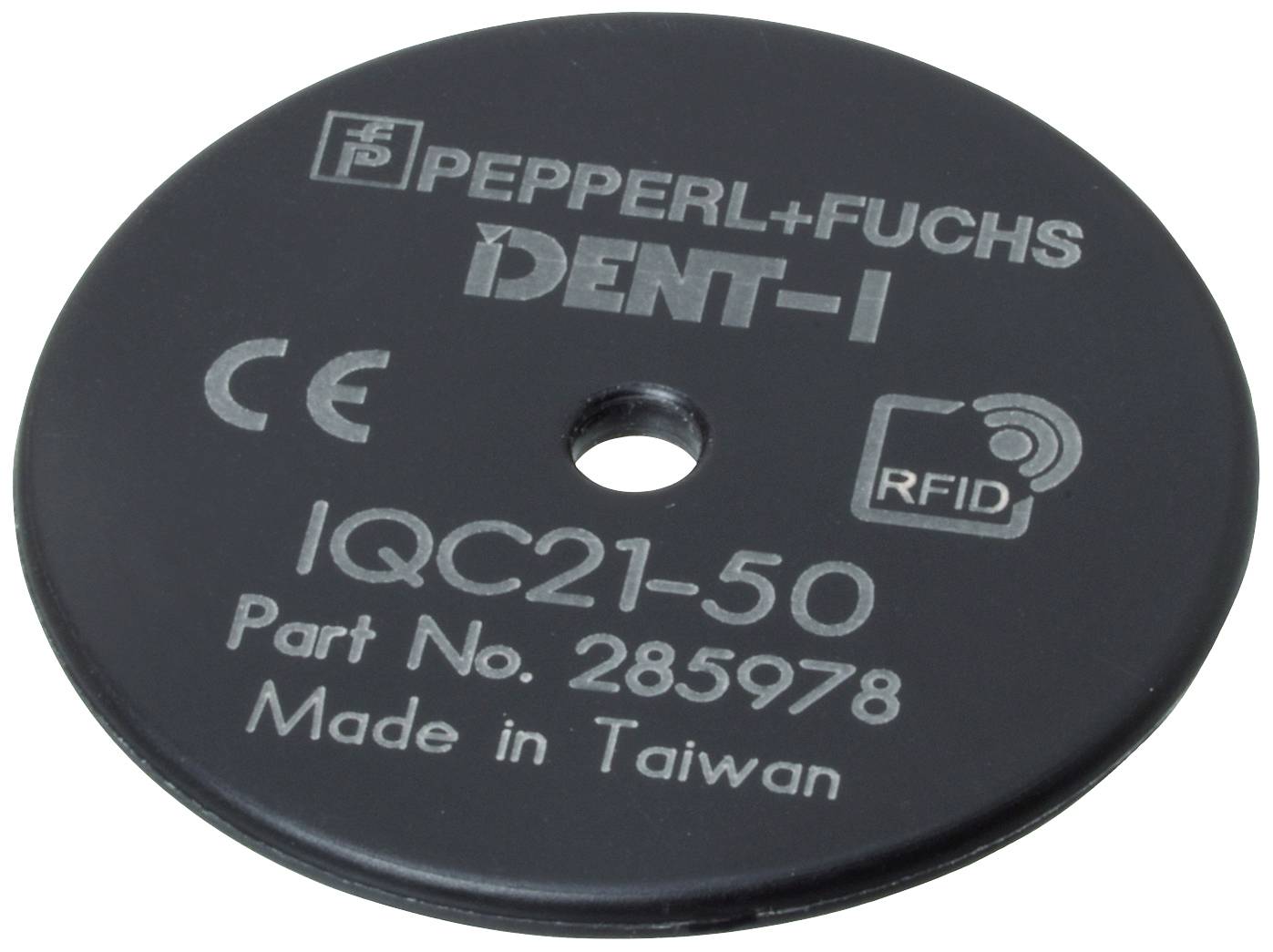

Pepperl+Fuchs 285978 RFID transponder IQC21-50 25pcs 25 pc(s)
EAN:
Part number:
Item no:
Product type
RFID transponder
Type
IQC21-50 25pcs
Content
25 pc(s)
Wireless charging
No
Datasheet (PDF)
Technical specifications
- Product type
RFID transponder
- Type
IQC21-50 25pcs
- Content
25 pc(s)
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 2629215 Pepperl+Fuchs 285978 RFID transponder IQC21-50 25pcs 25 pc(s)
User & Safety Instructions
User & Safety Instructions 2629215 Pepperl+Fuchs 285978 RFID transponder IQC21-50 25pcs 25 pc(s)
Description
Data carrier, operating frequency: 13.56 MHz, design: Cylindrical
This text is machine translated.
This text is machine translated.
Features
- General data
- Operating frequency 13.56 MHz
- Transfer rate up to 26 kBit/s.
- Memory
- Chip type I-CODE SLIX (NXP)
- EEPROM 896 bit
- UID:64 bit
- Storage organization: 4 bytes/Block
- Read cycles: Unlimited
- Write cycles: 100000
- Data Hold Time: 50 years
- Compliance
- Radio systems
- Directive 2014/53/EU: EN 300330
- RoHS
- Directive 2011/65/EU (RoHS): IEC/EN 63000
- Compliance with standards
- Protection class EN 60529
- RFID: ISO/IEC 15693-1 | ISO/IEC 15693-2 | ISO/IEC 15693-3 | ISO/IEC 18000-3
- Ambient conditions
- Ambient temperature: -25 ... 85 °C (-13 ... 185 °F)
- Storage temperature: -40 ... 85 °C (-40 ... 185 °F) 160 °C (320 °F) for 50 h | 220 °C (428 °F) for 30 min
- Mechanical data:
- Housing height 3 mm
- Housing diameter 50 mm
- Protection class: IP68
- Materials
- PA 6 casing
- Installation
- In air: Yes
- Design: Cylindrical
- Note: Packaging unit 25 pieces
