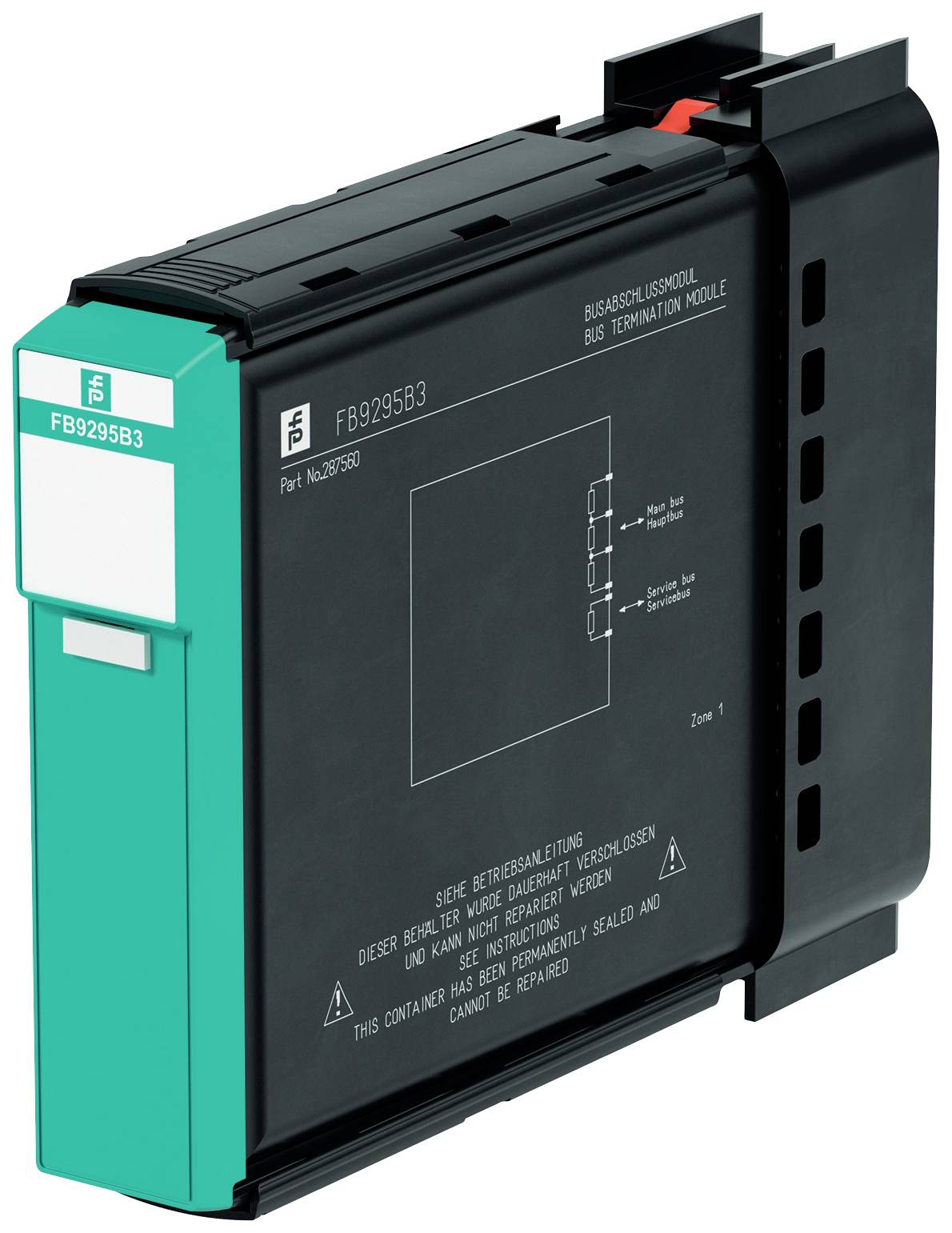

Pepperl+Fuchs 287560 Bus terminator FB9295B3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bus terminator
Type
FB9295B3
Content
1 pc(s)
Wireless charging
No
UKCA
not relevant
Datasheet (PDF)
Technical specifications
- Product type
Bus terminator
- Type
FB9295B3
- Content
1 pc(s)
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2630187 Pepperl+Fuchs 287560 Bus terminator FB9295B3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630187 Pepperl+Fuchs 287560 Bus terminator FB9295B3 1 pc(s)
Description
FB series; bus termination module; main bus and service bus; Inst. in zone 1/zone 21
This text is machine translated.
This text is machine translated.
Features
- Building Supply
- Connection: Backplane bus
- Compliance
- Electromagnetic compatibility
- Directive 2014/30/EU: EN 61326-1
- Conformity
- Electromagnetic compatibility NE 21
- IEC 60529 protection
- Environmental assessment: EN 60068-2-14
- Shock resistance EN 60068-2-27
- Vibration resistance EN 60068-2-6
- Pollutant gas EN 60068-2-42
- Relative humidity EN 60068-2-78
- Ambient conditions
- Ambient temperature: -40 ... 60 °C (-40 ... 140 °F)
- Storage temperature: -40 ... 85 °C (-40 ... 185 °F)
- Relative humidity: 95% non-condensing
- Shock resistance: Shock shape I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
- Vibration resistance: Frequency range 10 ... 150 Hz; crossover frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles | frequency range 5 ... 100 Hz; crossover frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
- Pollutant gas: Resistant in ambient conditions according to ISA S71.04-1985, Severity Level G3
- Mechanical data:
- Protection class: IP20 (module) , separate enclosure required according to system description
- Approximate weight 350 g
- Dimensions 28 x 107 x 132 mm
- General information
- System Information: The module may only be installed in the associated backplanes (FB92**) in zone 1, 2 or outside the hazardous area. Observe the corresponding EC type-examination certificate.
- Supplementary information: If applicable, observe the EC type-examination certificates, conformity statements, declarations of conformity, Certificates of conformity and operating instructions.
