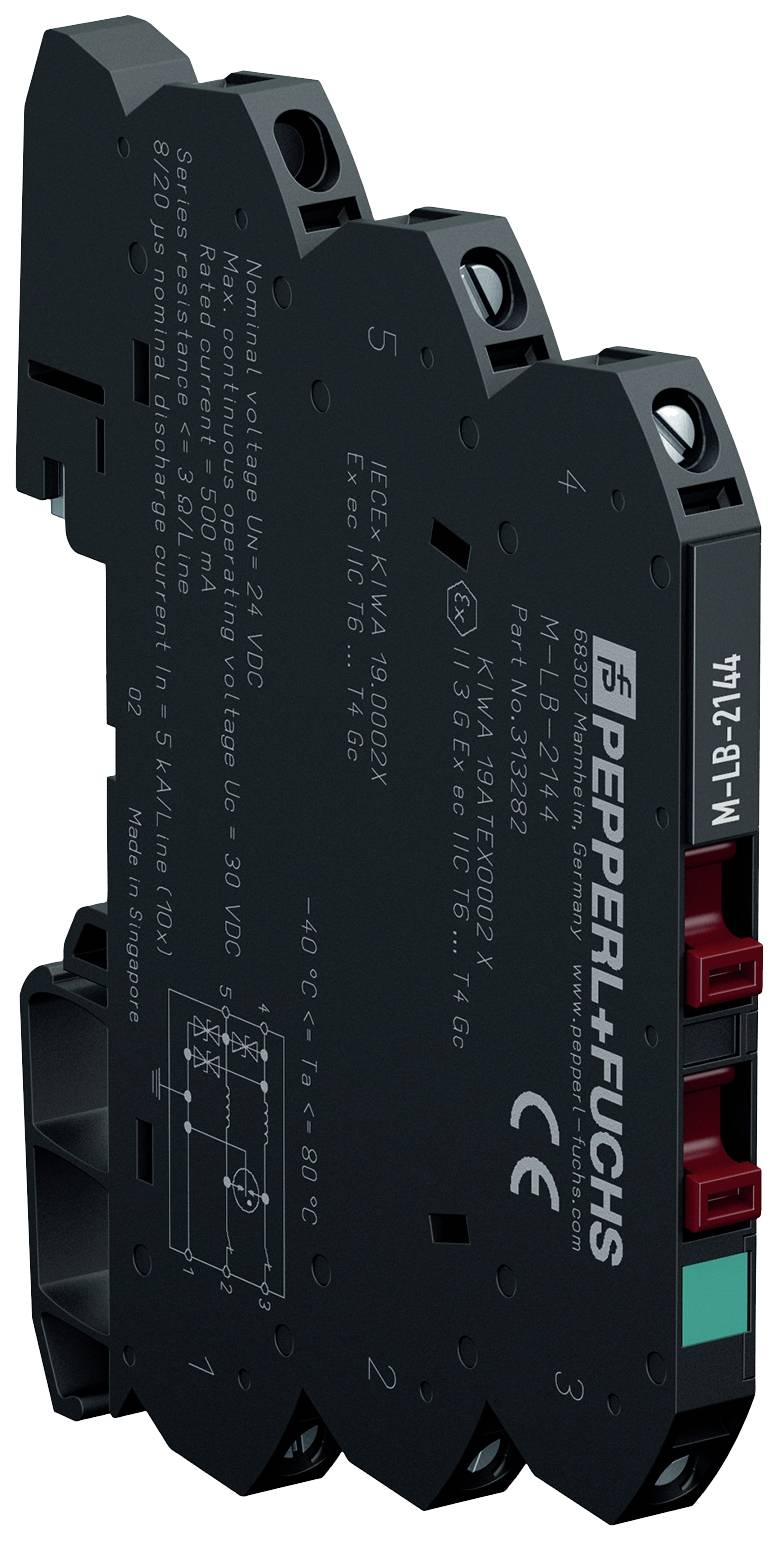

Pepperl+Fuchs 313282 M-LB-2144 Surge protection module 5 kA Piece 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Surge protection module
- Leakage current
5 kA
- Nominal voltage
24 V DC
- Manufacturer part #
313282
- Dim
(W x H x D) 6.2 x 93 x 72.4 mm
- Width
6.2 mm
- Height
93 mm
- Depth
72.4 mm
- Content
1 pc(s)
- Packaging type
Piece
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2630687 Pepperl+Fuchs 313282 M-LB-2144 Surge protection module 5 kA Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630687 Pepperl+Fuchs 313282 M-LB-2144 Surge protection module 5 kA Piece 1 pc(s)
Description
"M-LB Series 2000; surge protection; screw terminal; rated voltage 24V; maximum voltage 30V; 2 protected wires; leakage current 5kA; grounded"
This text is machine translated.
This text is machine translated.
Features
- General dataNumber of protected signal lines: 2Topology: GroundedFunctional safety characteristicsSafety integrity level (SIL): SIL 3Electrical DataConnection: Protected area: Terminals 4, 5 | unprotected area: Terminals 2, 3 | Shielding/earthing: Terminal 1 (optional)Rated current: 500 mA, for restrictions see reduction tables | UL : 400 mA, for restrictions see reduction tablesLeakage current < : 6 µA at 24 V and 25 °C (77 °F) , line-to-lineNominal voltage: 24 V/DCHighest continuous voltage 30 V DCLongitudinal resistance: ≤ 3 Ω per cableSurge current rating: 1 kV/0.5 kA (category C1) | 10 kV/5 kA (category C2) | 1 kA (category D1)Impulse leakage surge current (10/350 µs): 1 kA per line (2x)Nominal surge current (8/20 µs): 5 kA per line (10x)Total leakage surge current (8/20 µs): 20 kA (1x), overload failure mode 3 according to IEC 61643-21Protection level: Max. 45 V cable-line at nominal leakage surge current In | max. 60 V cable-ground at nominal leakage surge current I.Pulse reset time < 500 msInsertion loss: ≤ 3 dB at 0 ... 700 kHz in 100 Ω systemComplianceElectromagnetic compatibility: EN 61326-3-1:2017Protection class IEC 60529:2013Functional safety: IEC/EN 61508:2010Overvoltage protection devices for low voltage: IEC 61643-21:2000+A1:2008+A2:2012Ambient conditionsAmbient temperature: -40 ... 80 °C (-40 ... 176 °F) | observe the reduced temperature range, see section Reduction.Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Relative humidity: Max. 95 %, without condensationMechanical data:Protection class: IP20 , after installation of the insulation plateConnection: Screw terminals, max. wire cross-section 1 x 2.5 mm2Material: Polyamide (PA)Approximate weight 32 gDimensions 6.2 x 93 x 72.4 mm (W x H x D)Mounting: On 35 mm DIN rail according to EN 60715:2001Data for use in conjunction with hazardous areasCERTIFICATE: KIWA 19 ATEX 0002 X. Identification: ATEX II 3G Ex ec IIC T6...T4 GC Temperature class: T6, T5 or T4 , see reduction tables for restrictionsCompliance DIRECTIVE 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018International approvalsUL RECOGNIZED E501704 | E501881 Breakdown voltage: 30 ... 45 V cable-line at 100 V/s according to UL 497B | 30 ... 45 V line ground at 100 V/s according to UL 497B | < 1000 V at 100 V/µs according to UL 497BIECEx approval IECEx certificate: IECEx KIWA 19.0002X IECEx marking: Ex ec IIC T6...T4 GC
