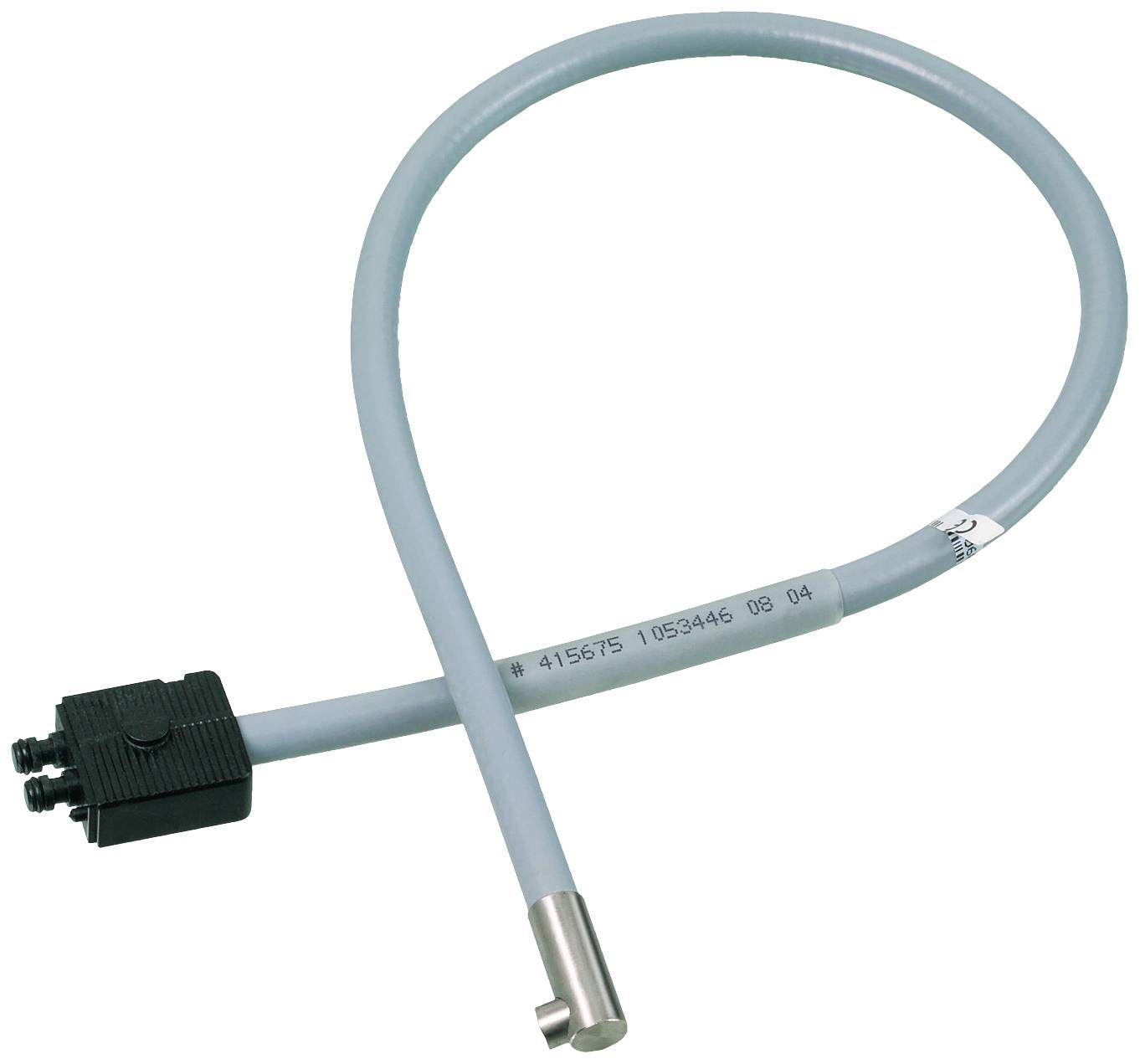

Pepperl+Fuchs 415675 FO cable LLR 04-1,6-0,5-QW 1X4 1 pc(s)
EAN:
Part number:
Item no:
Product type
FO cable
Type
LLR 04-1,6-0,5-QW 1X4
Content
1 pc(s)
Wireless charging
No
Datasheet (PDF)
Technical specifications
- Product type
FO cable
- Type
LLR 04-1,6-0,5-QW 1X4
- Content
1 pc(s)
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 2630161 Pepperl+Fuchs 415675 FO cable LLR 04-1,6-0,5-QW 1X4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630161 Pepperl+Fuchs 415675 FO cable LLR 04-1,6-0,5-QW 1X4 1 pc(s)
Description
Fiber optic cable length: 500 mm, sheath: Metal silicone, Kern: Glass fiber, Ambient temperature: -20 ... 85 °C (-4 ... 185 °F) [Adapter] -40 ... 180 °C (-40 ... 356 °F) [end piece and shell]
This text is machine translated.
This text is machine translated.
Features
- General dataFiber optic cable length 500 mmFiber optic diameter 7.3 mmAdapter form 04End piece: Right angle smooth / threadBending radius: Min. 25 mmFiber bundle diameter: 1 x 2.15 mm / outlet area: 1 x 3.6 mm2Fiber distribution: Statistically mixedAngle of detection 69 °Approvals and certificatesApprovals: CEAmbient conditionsAmbient temperature: -20 ... 85 °C (-4 ... 185 °F) [Adapter] | -40 ... 180 °C (-40 ... 356 °F) [end piece and shell]Storage temperature: -20 ... 85 °C (-4 ... 185 °F)Mechanical data:Protection system: IP65Materials Light emission: Glass Sheath: Metal silicone Kern: Glass fiber End piece: Stainless steel 1.4305 / AISI 303 (V2A) Adapter: PVCExtraction force: At probe head at 20°C: 120 N.Fiber optic devicesDevice series: MLV41-LL
