Pepperl+Fuchs 70113491 RFID transponder IQC21-C1 10pcs 10 pc(s)
EAN:
Part number:
Item no:
Product type
RFID transponder
Type
IQC21-C1 10pcs
Content
10 pc(s)
Wireless charging
No
Datasheet (PDF)
Technical specifications
- Product type
RFID transponder
- Type
IQC21-C1 10pcs
- Content
10 pc(s)
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 2628906 Pepperl+Fuchs 70113491 RFID transponder IQC21-C1 10pcs 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2628906 Pepperl+Fuchs 70113491 RFID transponder IQC21-C1 10pcs 10 pc(s)
Description

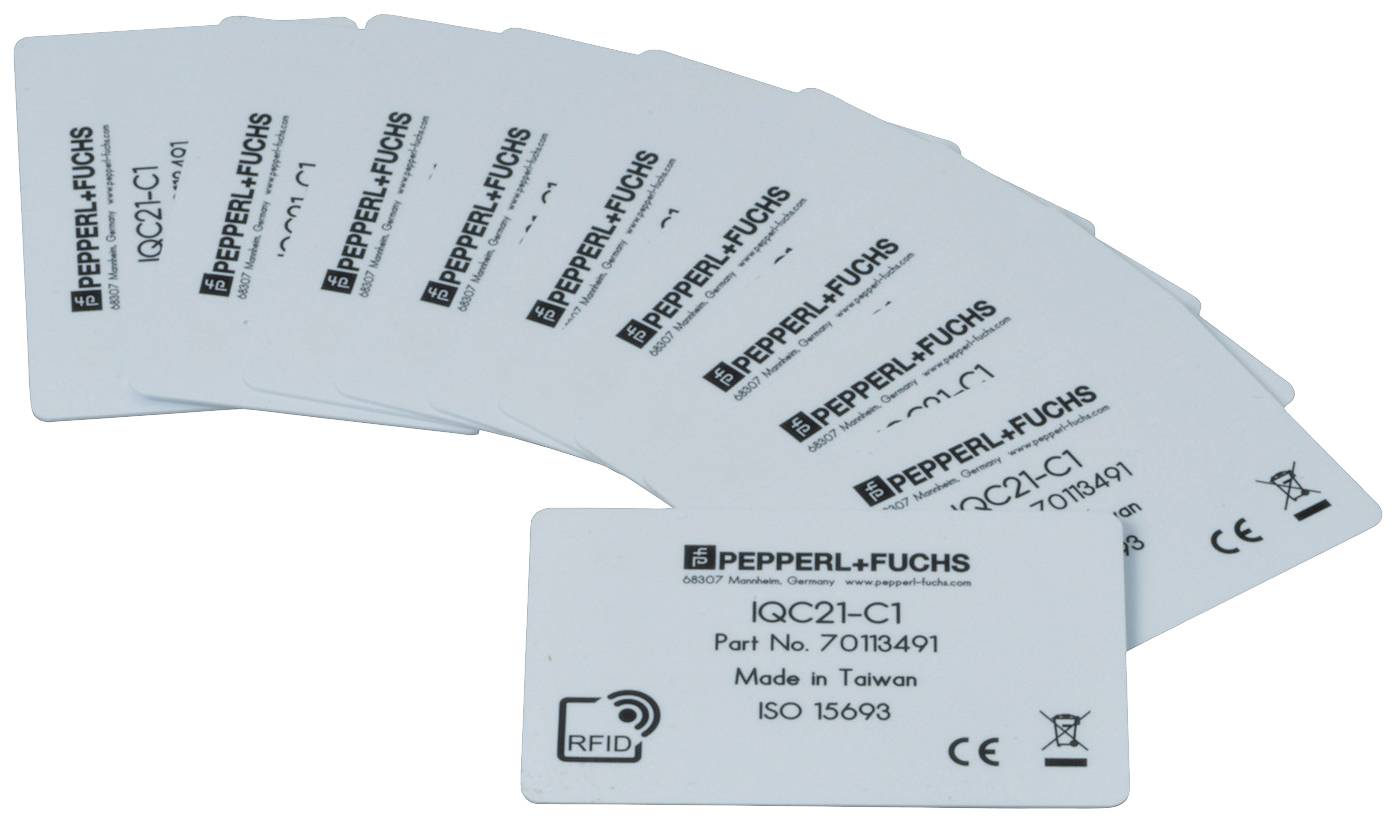

Data carrier, working frequency: 13.56 MHz, design: Card
This text is machine translated.
This text is machine translated.
Features
- General dataOperating frequency 13.56 MHzTransfer rate 26 kBit/sMemoryChip type: I CODE SLIX (NXP)896-bit EEPROMUID: 64 bitsMemory organization: 4 bytes/blockRead cycles: UnlimitedWrite cycles 100000Data retention time: 50 yearsComplianceRadio systems Directive 2014/53/EU: EN 300330RoHS Directive 2011/65/EU (RoHS): IEC/EN 63000ComplianceProtection class EN 60529RFID: ISO/IEC 15693-1 | ISO/IEC 15693-2 | ISO/IEC 15693-3 | ISO/IEC 18000-3Ambient conditionsAmbient temperature: -25 ... 50 °C (-13 ... 122 °F)Storage temperature: -25 ... 50 °C (-13 ... 122 °F)Mechanical data:Casing length 85.6 mmCase width 54 mmHousing height 0.8 mmProtection class: IP68Materials Housing: PVCInstallation In air: YesWeight 6 gDesign: CardNote: Supplied in packs of 10
