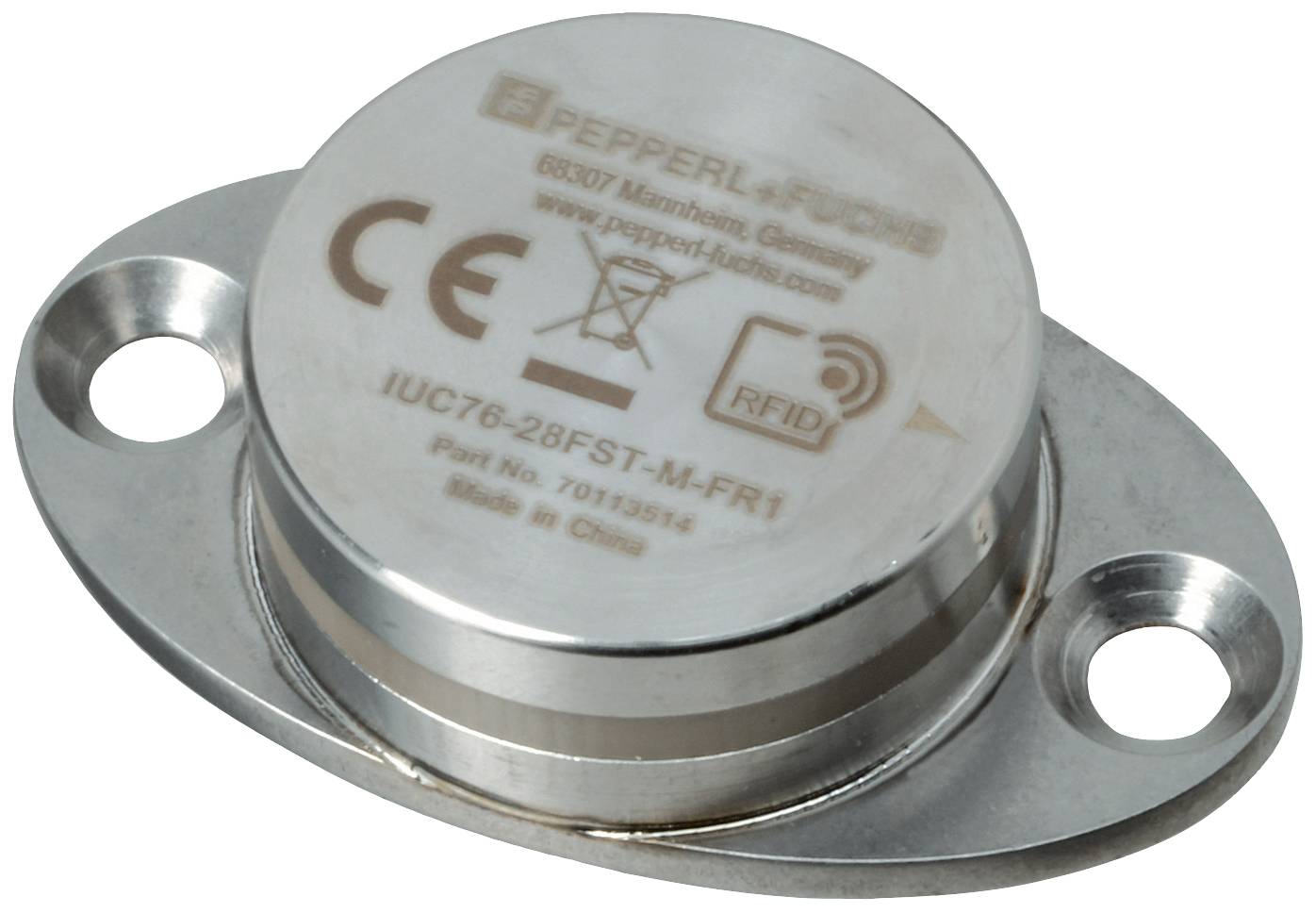

Name: Pepperl+Fuchs 70113514 RFID transponder IUC76-28FST-M-FR1 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2629112

Image similar

Product type

RFID transponder

Type

IUC76-28FST-M-FR1

Content

1 pc(s)

Wireless charging

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Documents & Downloads

Datasheet 2629112 Pepperl+Fuchs 70113514 RFID transponder IUC76-28FST-M-FR1 1 pc(s)

User & Safety Instructions 2629112 Pepperl+Fuchs 70113514 RFID transponder IUC76-28FST-M-FR1 1 pc(s)

Data carrier for autoclave applications; working frequency: 865 ... 868 MHz; design: Special version

This text is machine translated.

General dataOperating frequency: 865 ... 868 MHzPolarization: LinearMemoryChip type: Higgs-3 (Alien)Memory Bank 00 (Reserved): 64 bitsMemory Bank 01 (EPC/UII): 96 ... 480 bitsMemory Bank 10 (TID): 96 bitsMemory Bank 11 (User memory): 512 bitsRead cycles: UnlimitedWrite cycles > 100000Data retention time: 50 years @ 77 °C (170.6 °F)ComplianceRadio systems Directive 2014/53/EU: EN 302208RoHS Directive 2011/65/EU (RoHS): IEC/EN 63000ComplianceProtection class EN 60529RFID: ISO/IEC 18000-63Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F) | Storage temperature: -40 ... 150 °C (-40 ... 302 °F) | 6 hours at 250 °C (dry heating) for 30 test cycles, | 18 hours coolingShock and shock resistance: 1 m (3 ft) on concrete, up to 100 cyclesMechanical data:Casing length 48 mmCase width 28 mmHousing height 13.5 mmProtection class IP69KMaterials Housing: Stainless steelInstallation On metal: YesWeight 44 gDesign: Special design
