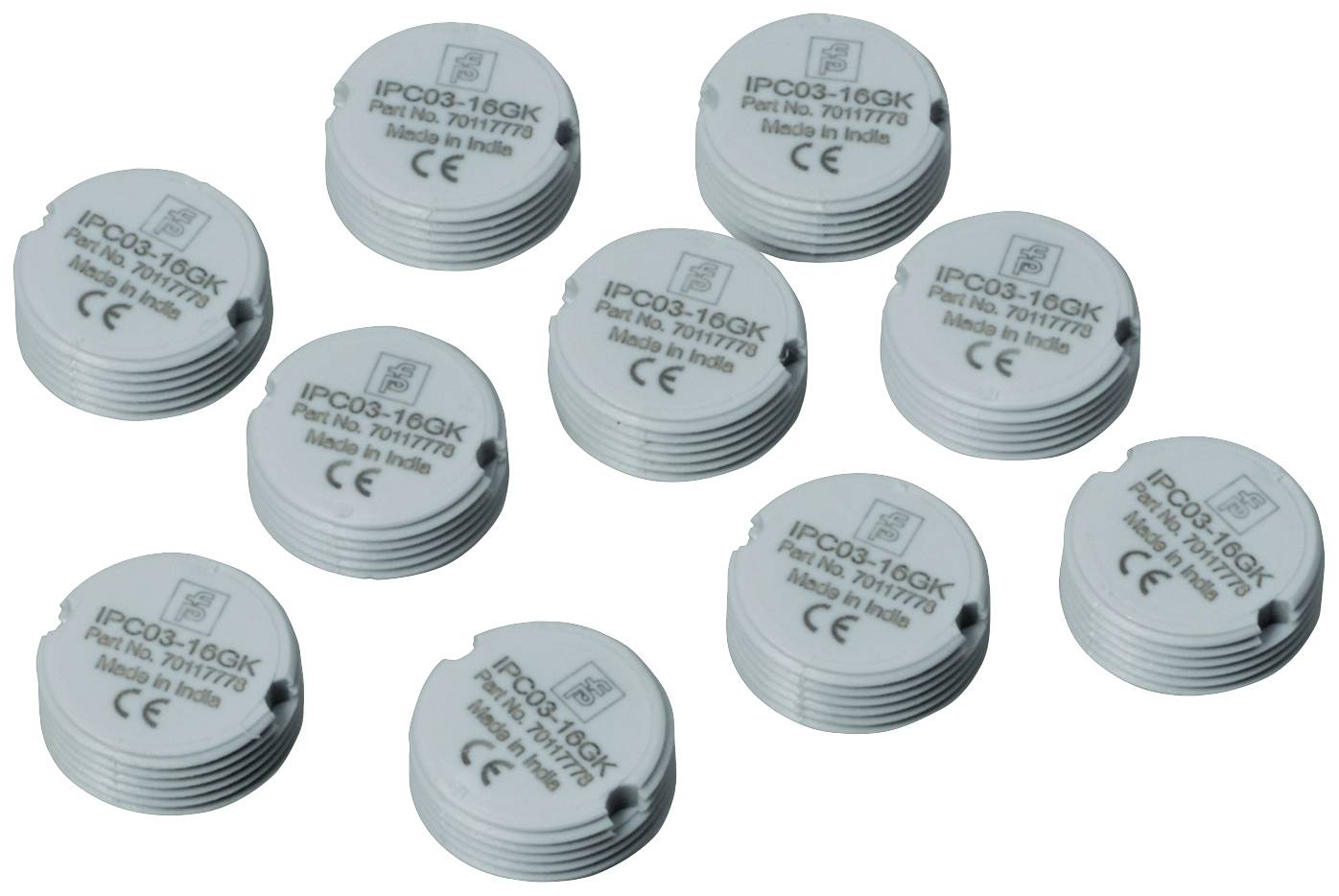

Pepperl+Fuchs 70117778 RFID transponder IPC03-16GK 10pcs 10 pc(s)
EAN:
Part number:
Item no:
Product type
RFID transponder
Type
IPC03-16GK 10pcs
Content
10 pc(s)
Wireless charging
No
Datasheet (PDF)
Technical specifications
- Product type
RFID transponder
- Type
IPC03-16GK 10pcs
- Content
10 pc(s)
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 2628735 Pepperl+Fuchs 70117778 RFID transponder IPC03-16GK 10pcs 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2628735 Pepperl+Fuchs 70117778 RFID transponder IPC03-16GK 10pcs 10 pc(s)
Description
Data carrier, operating frequency: 125 kHz, design: Cylindrical
This text is machine translated.
This text is machine translated.
Features
- General data
- Operating frequency 125 kHz
- Transfer rate up to 2 kBit/s.
- Memory
- Chip type EM4450 titanium (EM Microelectronic)
- EEPROM 928 bit
- Read cycles: Unlimited
- Write cycles: > 100000
- Data retention time: 10 years at 55°C (131°F)
- Compliance
- Radio systems
- Directive 2014/53/EU: EN 300330
- RoHS
- Directive 2011/65/EU (RoHS): IEC/EN 63000
- Compliance with standards
- Protection class EN 60529
- RFID ISO/IEC 18000-2
- Ambient conditions
- Ambient temperature: -25 ... 70 °C (-13 ... 158 °F)
- Storage temperature: -40 ... 85 °C (-40 ... 185 °F)
- Mechanical data:
- Housing height 6 mm
- Housing diameter 16 mm
- Protection class IP67
- Materials
- PBT casing
- Casting compound/hardener: Polyurethane (PUR)
- Installation
- In metal: Yes
- On metal: Yes
- In air: Yes
- Weight 3 g
- Design: Cylindrical
- Note: Packaging unit 10 pieces
