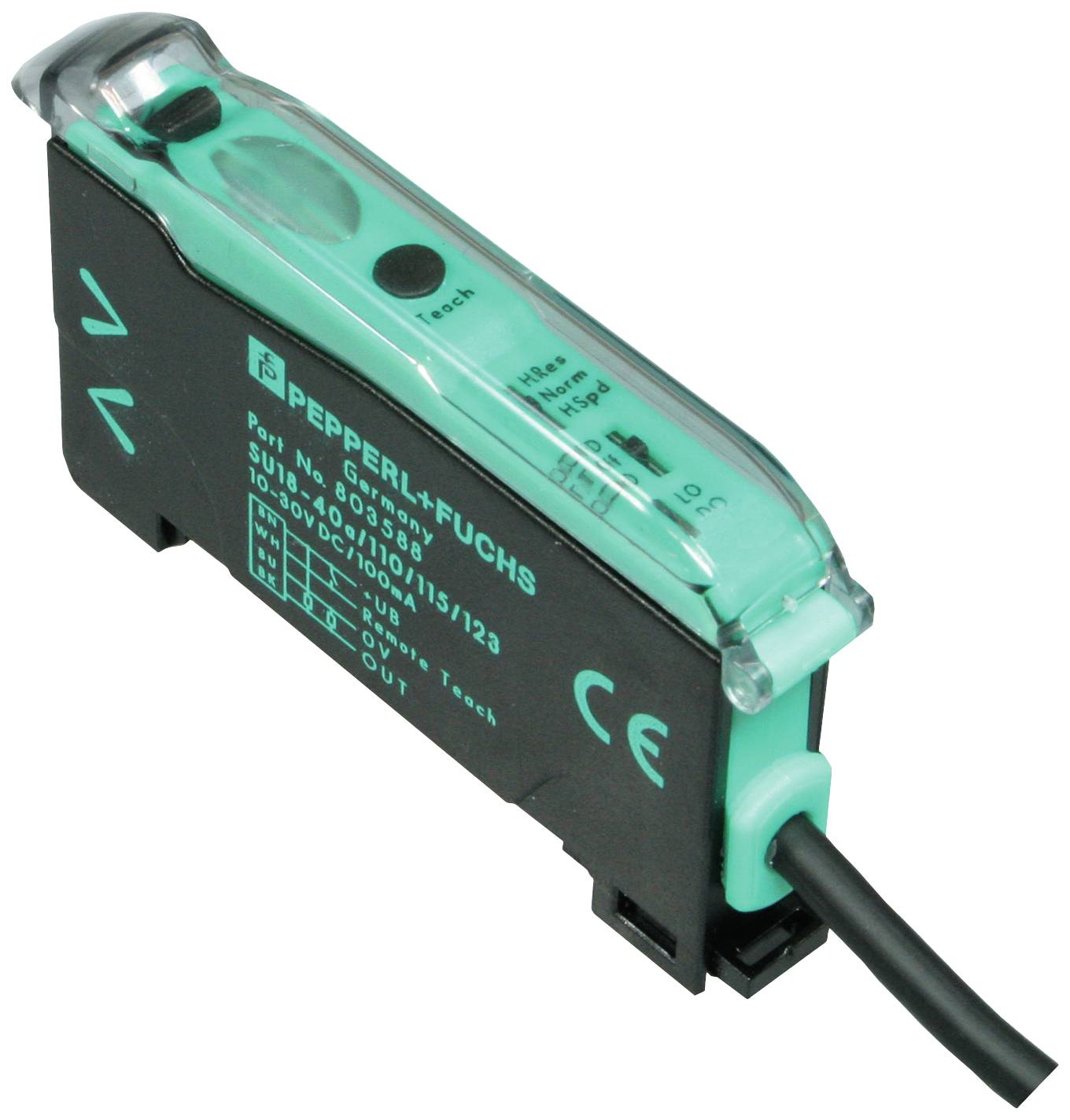

Pepperl+Fuchs 803586 SU18-40a/110/115/126a FO sensor 1 pc(s) Antivalent (L x W x H) 62.3 x 9 x 34.5 mm
EAN:
Part number:
Item no:
Product type
FO sensor
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Type
SU18-40a/110/115/126a
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
FO sensor
- Type
SU18-40a/110/115/126a
- Content
1 pc(s)
- Features
LED indicator
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Antivalent
- Switching voltage (max.)
30 V DC
- Switching current (max.)
100 mA
- Connection
Open end cable
IP50
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Length
62.3 mm
- Width
9 mm
- Height
34.5 mm
- Dim
(L x W x H) 62.3 x 9 x 34.5 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627293 Pepperl+Fuchs 803586 SU18-40a/110/115/126a FO sensor 1 pc(s) Antivalent (L x W x H) 62.3 x 9 x 34.5 mm
User & Safety Instructions
User & Safety Instructions 2627293 Pepperl+Fuchs 803586 SU18-40a/110/115/126a FO sensor 1 pc(s) Antivalent (L x W x H) 62.3 x 9 x 34.5 mm
Description
Sensing range: Up to 150 mm (KLR-C02-2.2-2.0-K146), light transmitter: LED, light type: Red, changeover light, 660 nm, Signal output: 1 push-pull output NPN/PNP, short-circuit proof, switching mode: Light/dark switching, switchable, connection: 2 m cable, 4 x 0.14 mm2, PVC, operating voltage: 10 ... 30 V DC, ambient temperature: -10 ... 55 °C (14 ... 131 °F)
