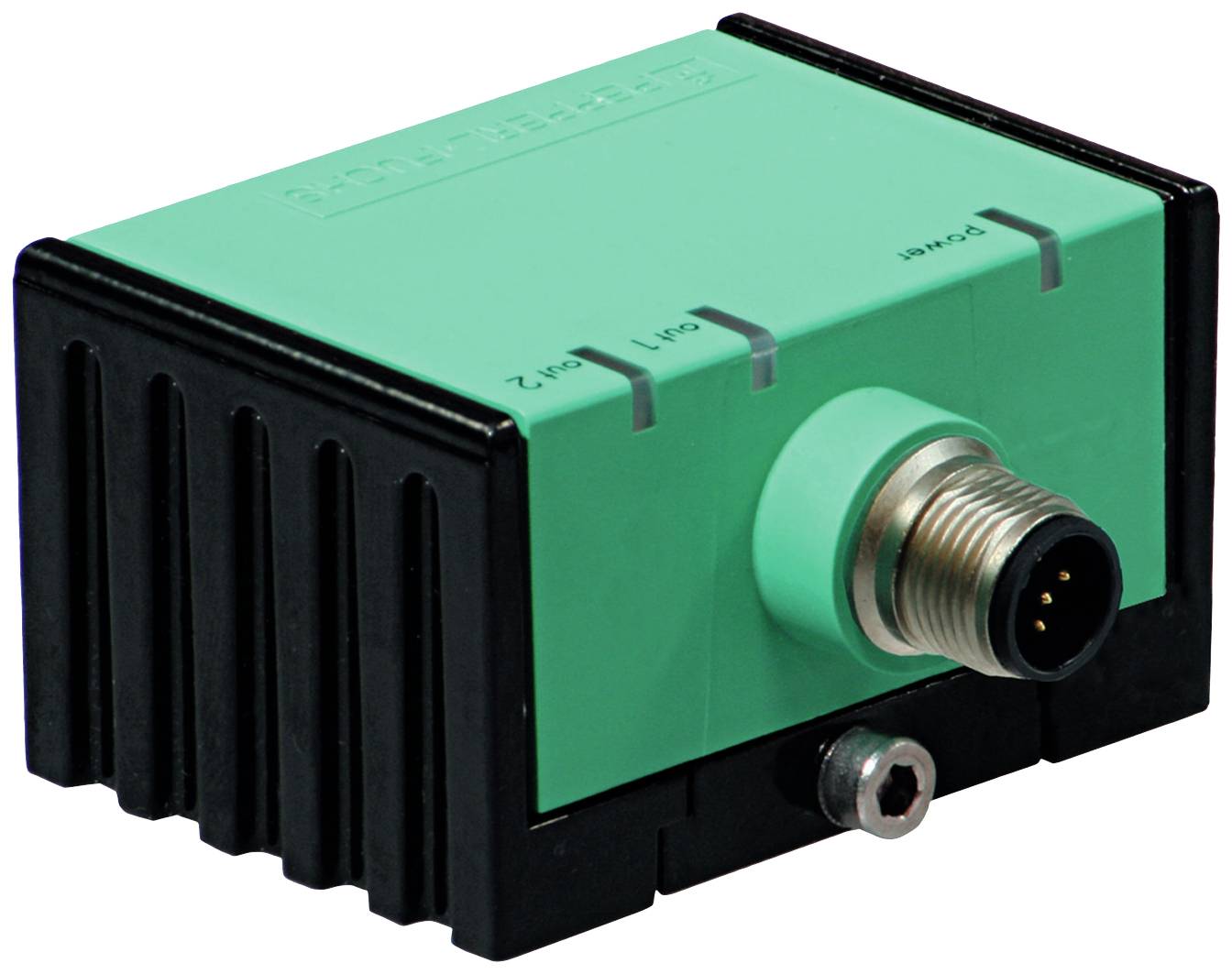

Pepperl+Fuchs Clinometer INY060D-F99-2I2E2-V17 241157 M12 plug M12 (8-pin)
EAN:
Part number:
Item no:
Product type
Clinometer
Max. operating voltage
30 V DC
Outputs
PNP NO
Connector
M12 (8-pin)
IP rating
IP68
IP69K
Datasheet (PDF)
Technical specifications
- Product type
Clinometer
- Type
INY060D-F99-2I2E2-V17
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Operating current
100 mA
- Resolution
0.02°
- No. of axles
2
- Outputs
PNP NO
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Accuracy ±
0.2°
- Connector
M12 (8-pin)
- Enclosure material
PA
- Features
LED indicator
- Interfaces
M12 plug
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
IP69K
- Content
1 pc(s)
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2629152 Pepperl+Fuchs Clinometer INY060D-F99-2I2E2-V17 241157 M12 plug M12 (8-pin)
User & Safety Instructions
User & Safety Instructions 2629152 Pepperl+Fuchs Clinometer INY060D-F99-2I2E2-V17 241157 M12 plug M12 (8-pin)
Description
Measuring range: -30 ... 30 °, operating voltage: 10 ... 30 V DC, output type: 2 switching outputs pnp, NO , reverse polarity protected , short circuit proof, output type: 2 current outputs 4 ... 20 mA (1 output for each axis), connection type: Device plug M12 x 1, 8-pin
This text is machine translated.
This text is machine translated.
Features
- General dataType: Inclination sensor, 2-axisMeasuring range: -30 ... 30 °Absolute accuracy ≤ ± 0.2 °Response delay: ≤ 25 msResolution: ≤ 0.02 °Reproducibility: ≤ ± 0.04 °Temperature influence: ≤ 0.004 °/K.Functional safety characteristicsMTTFd: 304 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator LED greenSwitching status: 2 LEDs yellow: Switching status (per output)Electrical DataOperating voltage 10 ... 30 V DCNo-load current ≤ 25 mAStandby delay: ≤ 200 msSwitching outputOutput type: 2 switching outputs pnp, NO , reverse polarity protected , short circuit proofOperating current ≤ 100 mAVoltage drop ≤ 3 VAnalogue output.Output type: 2 current outputs 4 ... 20 mA | (1 output for each axis)Load resistance: 0 ... 200 Ω AT UB = 10 ... 18 V | 0 ... 500 Ω AT UB = 18 ... 30 VCompliance with standards and directivesCompliance Shock and shock resistance: 100 g according to DIN EN 60068-2-27 Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, Class 2 power sourceAmbient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: Device plug M12 x 1, 8-pinHousing material: PAProtection class IP68/IP69KWeight 240 gFactory settingsAnalogue output (X): -30 ° ... 30 °Analogue output (Y): -30 ° ... 30 °Switching output (X): -30 ° ... 30 °Switching output (Y): -30 ° ... 30 °
