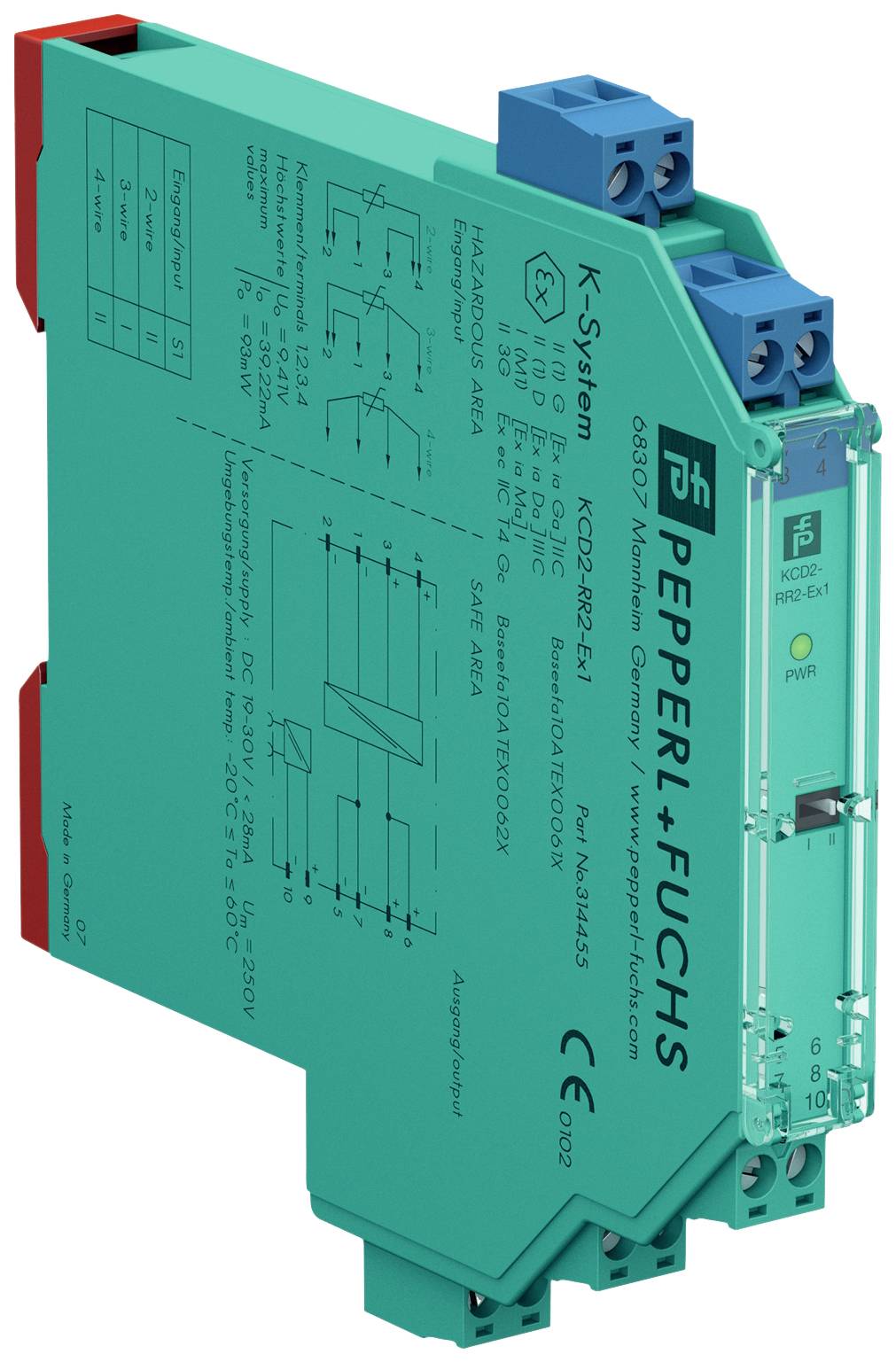

Pepperl+Fuchs KCD2-RR2-Ex1 314455 Repeater 1 pc(s)
EAN:
Part number:
Item no:
Product type
Repeater
Input signal (current) (max.)
39.22 mA
Input signal (voltage) (max.)
9.5 V
Type
KCD2-RR2-Ex1
Dim
(L x W x H) 114 x 12.5 x 119 mm
Datasheet (PDF)
Technical specifications
- Type
KCD2-RR2-Ex1
- Product type
Repeater
- Input signal (current) (max.)
39.22 mA
- Input signal (voltage) (max.)
9.5 V
- Dim
(L x W x H) 114 x 12.5 x 119 mm
- Connection
Screw terminal
- Output (voltage)
0 ... 4.2 V
- Output (current)
0 ... 10 mA
- Operating voltage
19 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
19 V DC
- Input signal (current)
0 ... 10 mA
- Content
1 pc(s)
- Configuration
DIP switch
- Width
12.5 mm
- Height
119 mm
- Length
114 mm
- Type
PT100
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
19 ... 30 V DC
- Wireless charging
No
- UKCA
yes
