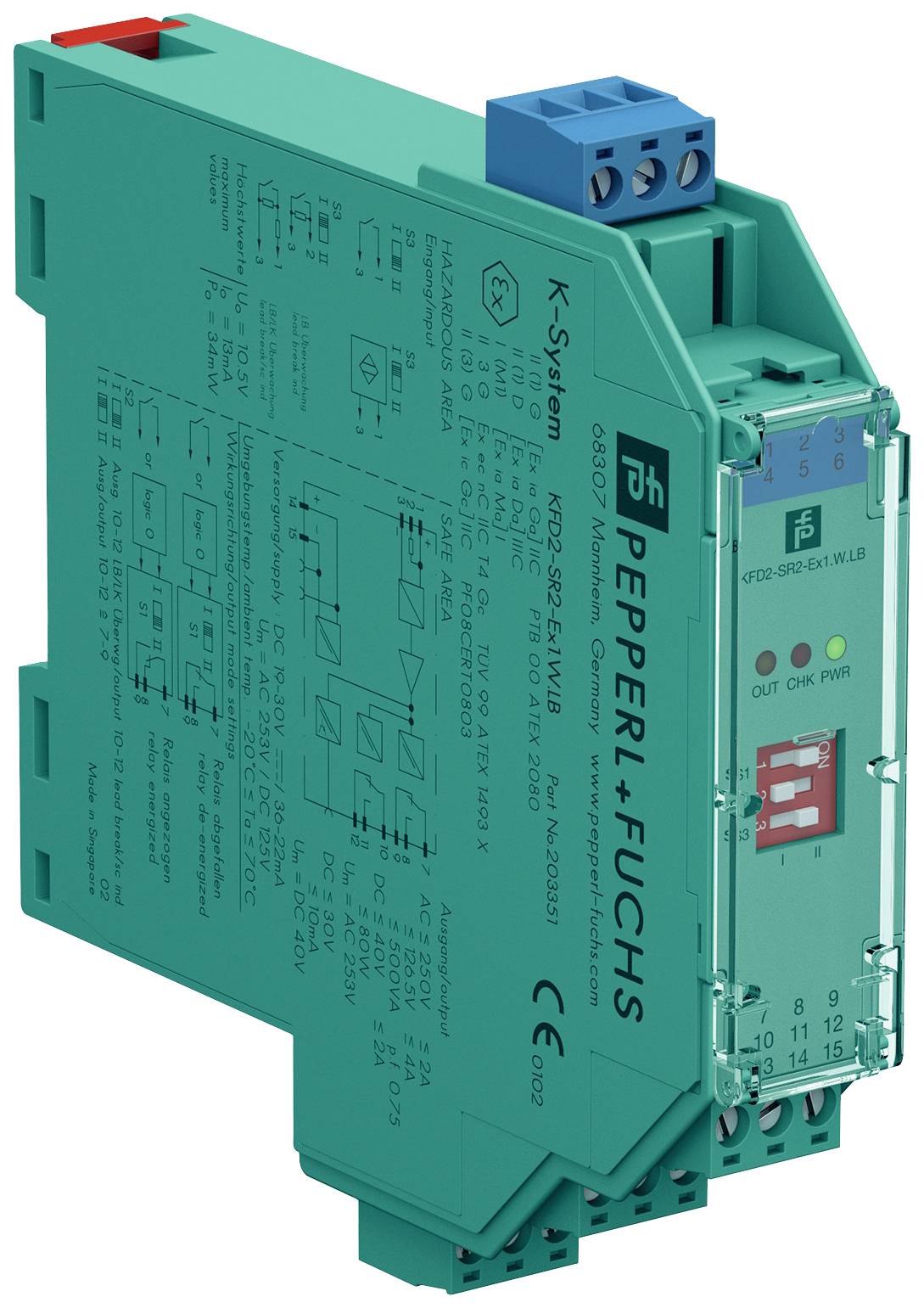

Pepperl+Fuchs KFD2-SR2-Ex1.W.LB 203351 Amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Amplifier
Input signal (current) (max.)
2.1 mA
Input signal (voltage) (max.)
8 V
Type
KFD2-SR2-Ex1.W.LB
Dim
(L x W x H) 115 x 20 x 119 mm
Datasheet (PDF)
Technical specifications
- Type
KFD2-SR2-Ex1.W.LB
- Product type
Amplifier
- Input signal (current) (max.)
2.1 mA
- Input signal (voltage) (max.)
8 V
- Dim
(L x W x H) 115 x 20 x 119 mm
- Connection
Screw terminal
- Output (voltage)
250 V AC / 40 V DC
- Output (current)
2 A / 4 A
- Operating voltage
19 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
19 V DC
- Input signal (current)
1.2 ... 2.1 mA
- Content
1 pc(s)
- Configuration
DIP switch
- Width
20 mm
- Height
119 mm
- Length
115 mm
- Max. ambient temperature
70 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
19 ... 30 V DC
- Wireless charging
No
- UKCA
not relevant
