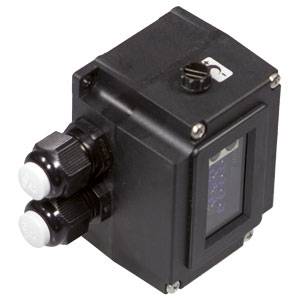

Pepperl+Fuchs Light barrier DAD15-8P-NPN 120841 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Max. operating voltage
30 V DC
Connector
M16
Type
DAD15-8P-NPN
Operating voltage
30 V DC
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 1000 mm with 1.5 m, limit range: 2500 mm, Data Rate: 225 Bit/s, operating range: 0 mm-1500 mm
- Product type
Light barrier
- Type
DAD15-8P-NPN
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
NPN
- Connector
M16
- Transmitter type
LED IR
2500 mm
IP67
- (Ø)
1000 mm
- Dim
(Ø) 1000 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2128438 Pepperl+Fuchs Light barrier DAD15-8P-NPN 120841 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2128438 Pepperl+Fuchs Light barrier DAD15-8P-NPN 120841 1 pc(s)
Conformity certificate
Conformity certificate 2128438 Pepperl+Fuchs Light barrier DAD15-8P-NPN 120841 1 pc(s)
Description
Data light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this 120841, please refer to its datasheet under 'downloadable documents'
