Pepperl+Fuchs Light barrier GL50-RT/30/40a/98a 201768 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M8 plug (3-pin)
Type
GL50-RT/30/40a/98a
Datasheet (PDF)
Technical specifications
- Switching mode: bright/dark switch
- Product type
Light barrier
- Type
GL50-RT/30/40a/98a
- Functions
Switch (light-ON/dark-ON)
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
NPN
- Connector
M8 plug (3-pin)
- Enclosure material
Zinc (die-cast)
- Material properties
Die-cast
- Transmitter type
LED red
IP67
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2128761 Pepperl+Fuchs Light barrier GL50-RT/30/40a/98a 201768 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2128761 Pepperl+Fuchs Light barrier GL50-RT/30/40a/98a 201768 Switch (light-ON/dark-ON) 1 pc(s)
Conformity certificate
Conformity certificate 2128761 Pepperl+Fuchs Light barrier GL50-RT/30/40a/98a 201768 Switch (light-ON/dark-ON) 1 pc(s)
Description

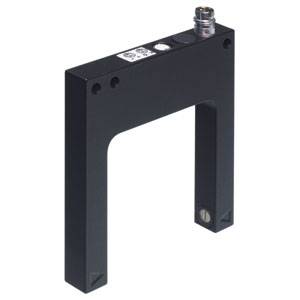

Fork light barrier, zinc die-cast housing, fork width 50 mm, red light, light/dark switching, sensitivity adjuster, DC-version, NPN output, plug-in M8 3-pin
This text is machine translated.
This text is machine translated.
Hints
For more information on this 201768, please refer to its datasheet under 'downloadable documents'
