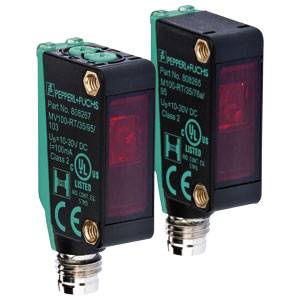

Pepperl+Fuchs Light barrier M100/MV100-RT/35/76a/95/103 214743 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M8 plug (4-pin)
Type
M100/MV100-RT/35/76a/95/103
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 2 m at a distance of 30 m, limit range: 30 m, operating range: 0 m-20m
- Product type
Light barrier
- Type
M100/MV100-RT/35/76a/95/103
- Functions
Switch (light-ON/dark-ON)
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Connector
M8 plug (4-pin)
- Enclosure material
PC
- Transmitter type
LED red
30 m
IP67
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2128563 Pepperl+Fuchs Light barrier M100/MV100-RT/35/76a/95/103 214743 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2128563 Pepperl+Fuchs Light barrier M100/MV100-RT/35/76a/95/103 214743 Switch (light-ON/dark-ON) 1 pc(s)
Conformity certificate
Conformity certificate 2128563 Pepperl+Fuchs Light barrier M100/MV100-RT/35/76a/95/103 214743 Switch (light-ON/dark-ON) 1 pc(s)
Description
One-way light barrier, range of 20 m, red light, light/dark switching, DC-version, PNP output, sensitivity adjuster, transmitter shut-off, plug M8
This text is machine translated.
This text is machine translated.
Hints
For more information on this 214743, please refer to its datasheet under 'downloadable documents'
