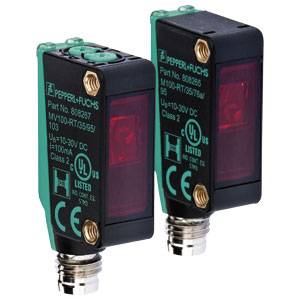

Image similar
Image similar
Pepperl+Fuchs Light barrier M100/MV100-RT/76a/98/103 220747 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M8 plug (3-pin)
Type
M100/MV100-RT/76a/98/103
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 1 m at a distance of 15 m, limit range: 15 m, operating range: 0 m-10m
- Product type
Light barrier
- Type
M100/MV100-RT/76a/98/103
- Functions
Switch (light-ON/dark-ON)
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Connector
M8 plug (3-pin)
- Enclosure material
PC
- Transmitter type
LED red
15 m
IP67
- (Ø)
1 m
- Dim
(Ø) 1 m
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2128571 Pepperl+Fuchs Light barrier M100/MV100-RT/76a/98/103 220747 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2128571 Pepperl+Fuchs Light barrier M100/MV100-RT/76a/98/103 220747 Switch (light-ON/dark-ON) 1 pc(s)
Conformity certificate
Conformity certificate 2128571 Pepperl+Fuchs Light barrier M100/MV100-RT/76a/98/103 220747 Switch (light-ON/dark-ON) 1 pc(s)
Description
One-way light barrier, range 10m, red light, light/dark switching, DC-version, PNP output, sensitivity adjuster, transmitter shut-off, plug M8
This text is machine translated.
This text is machine translated.
Hints
For more information on this 220747, please refer to its datasheet under 'downloadable documents'
