Buy Pepperl+Fuchs Light barrier ML100-55/102/115 210544 Dark-ON, Light-ON, Polarisation filter 1 pc(s)

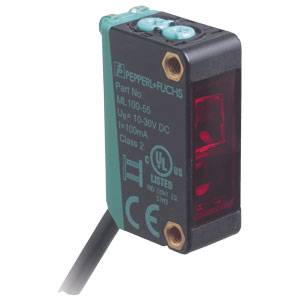

Compact proximity sensor by Pepperl+Fuchs, Model ML100-55, with UL and CE marking. Suitable for 10-30V DC, 100mA.

Image similar

Packaging type

Piece

Product type

Light barrier

Functions

Dark-ON

Light-ON

Polarisation filter

Max. operating voltage

30 V DC

Connector

Cable

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Light Spot Diameter: approx. 500 mm at a distance of 7 m, switching voltage max. 30 V/DC, limit range: 7 m, operating range: 0 m-5m, switching current 100 mA

Packaging type: Piece

Product type: Light barrier

Type: ML100-55/102/115

Functions: Dark-ON
Light-ON
Polarisation filter

Operating voltage: 30 V DC

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Outputs: NPN

Switching frequency: 1000 Hz

Connector: Cable

Cable length: 2.00 m

Enclosure material: PC

Transmitter type: LED red

: 7 m

: IP67

Min. temperature: -30 °C

Max. temperature: +60 °C

Width: 11 mm

Height: 31 mm

Depth: 20 mm

Dim: (W x H x D) 11 x 31 x 20 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2131038 Pepperl+Fuchs Light barrier ML100-55/102/115 210544 Dark-ON, Light-ON, Polarisation filter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2131038 Pepperl+Fuchs Light barrier ML100-55/102/115 210544 Dark-ON, Light-ON, Polarisation filter 1 pc(s)

Conformity certificate

Conformity certificate 2131038 Pepperl+Fuchs Light barrier ML100-55/102/115 210544 Dark-ON, Light-ON, Polarisation filter 1 pc(s)

Description

Reflection light beam with polarisation filter, plastic case, Range 5 m, red light, sensitivity adjuster, light/dark switching, DC-version, NPN output, fixed cable
