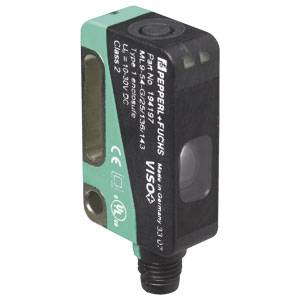

Pepperl+Fuchs Light barrier ML9-54-G/25/136/143 194197 Light-ON, Polarisation filter, Clear object detection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Light-ON
Polarisation filter
Clear object detection
Max. operating voltage
30 V DC
Connector
M8 plug (4-pin)
Type
ML9-54-G/25/136/143
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 40 mm at range 1 m, limit range: 7.6 m, type: brightness switch, operating range: 0 m -5.7 m
- Product type
Light barrier
- Type
ML9-54-G/25/136/143
- Functions
Light-ON
Polarisation filter
Clear object detection
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
M8 plug (4-pin)
- Enclosure material
PC
- Transmitter type
LED red
7.6 m
IP67
- (Ø)
40 mm
- Dim
(Ø) 40 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2131094 Pepperl+Fuchs Light barrier ML9-54-G/25/136/143 194197 Light-ON, Polarisation filter, Clear object detection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2131094 Pepperl+Fuchs Light barrier ML9-54-G/25/136/143 194197 Light-ON, Polarisation filter, Clear object detection 1 pc(s)
Conformity certificate
Conformity certificate 2131094 Pepperl+Fuchs Light barrier ML9-54-G/25/136/143 194197 Light-ON, Polarisation filter, Clear object detection 1 pc(s)
Description
Reflection light beam with polarisation filter for the glass detection
This text is machine translated.
This text is machine translated.
Hints
For more information on this 194197, please refer to its datasheet under 'downloadable documents'
