Buy Pepperl+Fuchs Light barrier MLV41-55-IO/95/136 221552 Push-pull (inverted) Polarisation filter 1 pc(s)

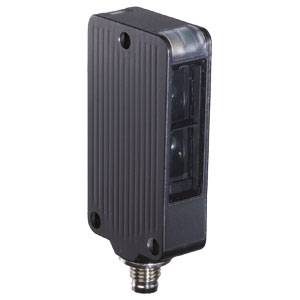

A rectangular, black sensor with a ribbed surface and metal connector. Used in automation and machine control.

Image similar

Product type

Light barrier

Functions

Polarisation filter

Max. operating voltage

30 V DC

Connector

M8 plug (4-pin)

Type

MLV41-55-IO/95/136

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Light Spot Diameter: approx. 300 mm with range 8.5 m, switching voltage max. 30 V/DC, limit range: 10 m, operating range: 0 m-8m, switching current 100 mA

Product type: Light barrier

Type: MLV41-55-IO/95/136

Model: Push-pull (inverted)

Functions: Polarisation filter

Operating voltage: 30 V DC

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Outputs: IO link

Switching frequency: 1000 Hz

Connector: M8 plug (4-pin)

Enclosure material: Aluminium

Transmitter type: LED red

: 10 m

: IP67

Min. temperature: -40 °C

Max. temperature: +60 °C

Width: 31 mm

Height: 56.5 mm

Depth: 13.6 mm

Dim: (W x H x D) 31 x 56.5 x 13.6 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2131130 Pepperl+Fuchs Light barrier MLV41-55-IO/95/136 221552 Push-pull (inverted) Polarisation filter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2131130 Pepperl+Fuchs Light barrier MLV41-55-IO/95/136 221552 Push-pull (inverted) Polarisation filter 1 pc(s)

Conformity certificate

Conformity certificate 2131130 Pepperl+Fuchs Light barrier MLV41-55-IO/95/136 221552 Push-pull (inverted) Polarisation filter 1 pc(s)

Description

Robust Reflection light beam with polarisation filter, compact design, IO-Link interface, Range 8 m, red light, 2 push-pull outputs, M8 connector

This text is machine translated.
