Buy Pepperl+Fuchs Light barrier OBE6000-12GM40-SE4 257813 Switch (light-ON/dark-ON) 1 pc(s)

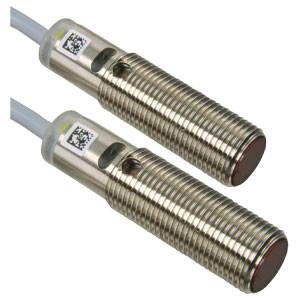

Two cylindrical metal sensors with cables, possibly used for detecting objects or movements in automated systems.

Image similar

Packaging type

Single

Product type

Light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30 V DC

Connector

Cable

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Light Spot Diameter: approx. 800 mm at a distance of 6 m red light, switching voltage max. 30 V/DC, limit range: 8500 mm, type: bright/dark switch electronically switchable, operating range: 0 mm-6000 mm, switching current 100 mA

Packaging type: Single

Product type: Light barrier

Type: OBE6000-12GM40-SE4

Functions: Switch (light-ON/dark-ON)

Operating voltage: 30 V DC

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Outputs: NPN

Switching frequency: 1000 Hz

Connector: Cable

Cable length: 2.00 m

Size: M12

Enclosure material: Brass

Transmitter type: LED red

Light emission: axial

: 8500 mm

: IP67

Min. temperature: -30 °C

Max. temperature: +60 °C

(Ø): 12 mm

Dim: (Ø) 12 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2128695 Pepperl+Fuchs Light barrier OBE6000-12GM40-SE4 257813 Switch (light-ON/dark-ON) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2128695 Pepperl+Fuchs Light barrier OBE6000-12GM40-SE4 257813 Switch (light-ON/dark-ON) 1 pc(s)

Conformity certificate

Conformity certificate 2128695 Pepperl+Fuchs Light barrier OBE6000-12GM40-SE4 257813 Switch (light-ON/dark-ON) 1 pc(s)

Description

One-way light barrier, thread type M12, metal housing, light-emitting frontal, Range 5 m, red light, light/dark switching, 1 NPN output, fixed cable
