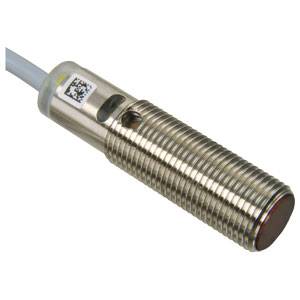

Pepperl+Fuchs Light barrier OBR2500-12GM40-E4 257817 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Max. operating voltage
30 V DC
Connector
Cable
Type
OBR2500-12GM40-E4
Operating voltage
30 V DC
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 150 mm at a distance of 2500 mm, limit range: 3000 mm, type: bright/dark switch electronically switchable, operating range: 0 mm-2500 mm
- Product type
Light barrier
- Type
OBR2500-12GM40-E4
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
Cable
- Cable length
2.00 m
- Enclosure material
Brass
- Transmitter type
LED red
IP67
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2131182 Pepperl+Fuchs Light barrier OBR2500-12GM40-E4 257817 1 pc(s)
Conformity certificate
Conformity certificate 2131182 Pepperl+Fuchs Light barrier OBR2500-12GM40-E4 257817 1 pc(s)
Description
Reflection light beam with polarisation filter, thread type M12, metal housing, light-emitting frontal, Range 5 m, red light, light/dark switching, 1 NPN output, fixed cable
This text is machine translated.
This text is machine translated.
Hints
For more information on this 257817, please refer to its datasheet under 'downloadable documents'
