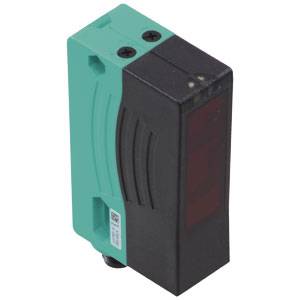

Pepperl+Fuchs Light barrier RL28-55/47/82b/105/106 132450 Polarisation filter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Polarisation filter
Max. operating voltage
24 V DC
Connector
M12 plug (5-pin)
Type
RL28-55/47/82b/105/106
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 290 mm at a distance of 17 m, switching voltage max. 30 V/DC, limit range: 21m, type: bright/dark switch, switchable, operating range: 0 m-17m, switching current: 2 A
- Product type
Light barrier
- Type
RL28-55/47/82b/105/106
- Functions
Polarisation filter
- Operating voltage
24 V DC
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Response time
0.5 ms
- Switching frequency
1000 Hz
- Connector
M12 plug (5-pin)
- Enclosure material
Plastic
Acrylonitrile butadiene styrene
- Transmitter type
LED red
21 m
IP67
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
25.8 mm
- Height
88 mm
- Depth
54.3 mm
- (Ø)
290 mm
- Dim
(Ø x H) 290 mm x 88 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2131238 Pepperl+Fuchs Light barrier RL28-55/47/82b/105/106 132450 Polarisation filter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2131238 Pepperl+Fuchs Light barrier RL28-55/47/82b/105/106 132450 Polarisation filter 1 pc(s)
Conformity certificate
Conformity certificate 2131238 Pepperl+Fuchs Light barrier RL28-55/47/82b/105/106 132450 Polarisation filter 1 pc(s)
Description
Reflection light beam with polarisation filter
This text is machine translated.
This text is machine translated.
Hints
For more information on this 132450, please refer to its datasheet under 'downloadable documents'
