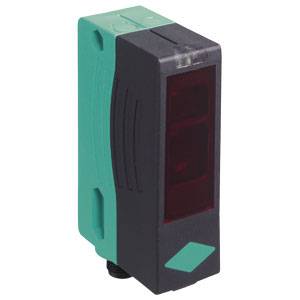

Pepperl+Fuchs Light barrier RL29-55/73c/136 801762 Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Dark-ON
Max. operating voltage
30 V DC
Connector
M12 plug (4-pin)
Type
RL29-55/73c/136
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 150 mm at a distance of 7m limit range: 10m, type: dark, operating range: 0.1 m-7m
- Product type
Light barrier
- Type
RL29-55/73c/136
- Functions
Dark-ON
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Blanking
- Connector
M12 plug (4-pin)
- Enclosure material
Plastic
Acrylonitrile butadiene styrene
- Transmitter type
LED red
10 m
IP65
- (Ø)
150 mm
- Dim
(Ø) 150 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2131247 Pepperl+Fuchs Light barrier RL29-55/73c/136 801762 Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2131247 Pepperl+Fuchs Light barrier RL29-55/73c/136 801762 Dark-ON 1 pc(s)
Conformity certificate
Conformity certificate 2131247 Pepperl+Fuchs Light barrier RL29-55/73c/136 801762 Dark-ON 1 pc(s)
Description
Reflection light beam with polarisation filter
This text is machine translated.
This text is machine translated.
Hints
For more information on this 801762, please refer to its datasheet under 'downloadable documents'
