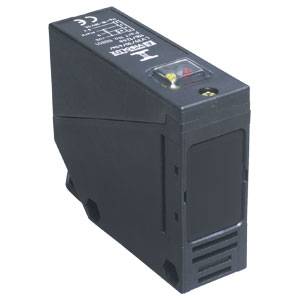

Pepperl+Fuchs Light barrier RL39-54/32/40a/73c/82a 088821 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M12 plug (4-pin)
Type
RL39-54/32/40a/73c/82a
Datasheet (PDF)
Technical specifications
- Switching voltage max. 30 V/DC, limit range: 6 m, type: bright/dark switch, operating range: 0 m-5m, switching current 200 mA
- Product type
Light barrier
- Type
RL39-54/32/40a/73c/82a
- Functions
Switch (light-ON/dark-ON)
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
1.5 ms
- Outputs
PNP
- Connector
M12 plug (4-pin)
- Enclosure material
PBT
- Transmitter type
LED red
12 m
IP67
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
25 mm
- Height
64 mm
- Depth
75 mm
- Dim
(W x H x D) 25 x 64 x 75 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2131254 Pepperl+Fuchs Light barrier RL39-54/32/40a/73c/82a 088821 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2131254 Pepperl+Fuchs Light barrier RL39-54/32/40a/73c/82a 088821 Switch (light-ON/dark-ON) 1 pc(s)
Conformity certificate
Conformity certificate 2131254 Pepperl+Fuchs Light barrier RL39-54/32/40a/73c/82a 088821 Switch (light-ON/dark-ON) 1 pc(s)
Description
Reflection light barrier for standard applications, polarizing filter, Range 12 m, red light, sensitivity adjuster, light/dark switching, Fail output, PNP output, M12 plug
This text is machine translated.
This text is machine translated.
Hints
For more information on this 088821, please refer to its datasheet under 'downloadable documents'
