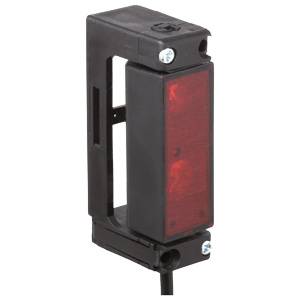

Pepperl+Fuchs Light barrier RL81-54/25/31/76b/115 303376 Polarisation filter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Polarisation filter
Max. operating voltage
24 V DC/AC
Connector
Cable
Type
RL81-54/25/31/76b/115
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 200 mm at a distance of 6 m, switching voltage max. 50 V/AC, 60 V/DC, limit range: REF-H 88 x 25 10m, REF-H 88 x 50 15.5 m, type: brightness switch, operating range: 0 m-6m, switching current: 1 A
- Product type
Light barrier
- Type
RL81-54/25/31/76b/115
- Functions
Polarisation filter
- Operating voltage
24 V DC/AC
- Min. operating voltage
12 V DC/AC
- Max. operating voltage
24 V DC/AC
- Operating voltage
12 - 24 V DC/AC
- Response time
80 ms
- Connector
Cable
- Cable length
2.00 m
- Enclosure material
Polycarbonate (PC)
- Transmitter type
LED red
15.5 m
IP65
- Min. temperature
-30 °C
- Max. temperature
+60 °C
- (Ø)
200 mm
- Dim
(Ø) 200 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2131263 Pepperl+Fuchs Light barrier RL81-54/25/31/76b/115 303376 Polarisation filter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2131263 Pepperl+Fuchs Light barrier RL81-54/25/31/76b/115 303376 Polarisation filter 1 pc(s)
Conformity certificate
Conformity certificate 2131263 Pepperl+Fuchs Light barrier RL81-54/25/31/76b/115 303376 Polarisation filter 1 pc(s)
Description
Reflection light beam with polarisation filter
This text is machine translated.
This text is machine translated.
Hints
For more information on this 303376, please refer to its datasheet under 'downloadable documents'
