Buy Pepperl+Fuchs Light barrier RLG28-55/40a/115b/136 217956 Switch (light-ON/dark-ON) 1 pc(s)

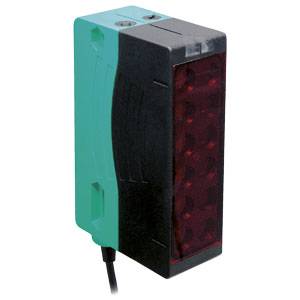

A rectangular, industrial sensor in green and black casing with cable connection, likely for object detection.

Image similar

Packaging type

Piece

Product type

Light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30 V DC

Connector

Cable, M12 3-pin plug

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Light Spot Diameter: approx. 220 mm with range of 4 m, switching voltage: max. 30 V/DC, limit range: 5.6 m, type: bright/dark switch, switchable, operating range: 0 m-4m, switching current 100 mA

Packaging type: Piece

Product type: Light barrier

Type: RLG28-55/40a/115b/136

Functions: Switch (light-ON/dark-ON)

Operating voltage: 30 V DC

Min. operating voltage: 12 V DC

Max. operating voltage: 30 V DC

Operating voltage: 12 - 30 V DC

Response time: 1 ms

Contact type: Antivalent

Switching frequency: 230 Hz

Connector: Cable, M12 3-pin plug

Cable length: 30.00 cm

Enclosure material: Plastic
Acrylonitrile butadiene styrene

Transmitter type: LED red

: 5.6 m

: IP67

Min. temperature: -30 °C

Max. temperature: +60 °C

Width: 25.8 mm

Height: 88 mm

Depth: 54.3 mm

Dim: (W x H x D) 25.8 x 88 x 54.3 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2131273 Pepperl+Fuchs Light barrier RLG28-55/40a/115b/136 217956 Switch (light-ON/dark-ON) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2131273 Pepperl+Fuchs Light barrier RLG28-55/40a/115b/136 217956 Switch (light-ON/dark-ON) 1 pc(s)

Conformity certificate

Conformity certificate 2131273 Pepperl+Fuchs Light barrier RLG28-55/40a/115b/136 217956 Switch (light-ON/dark-ON) 1 pc(s)

Description

Flat light barrier with 6 beams in the standard light barrier housing, red light, range of 4 m, light/dark switching selectable and push-pull output, fixed cable with M12 connector

This text is machine translated.
